ABB TU847 3BSE022462R1 Module Termination Unit

The TU847 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A. Our team is available 24/7 to support you with your urgent needs for critical spare parts, please contact us.







TU847 3BSE022462R1 Module Termination Unit

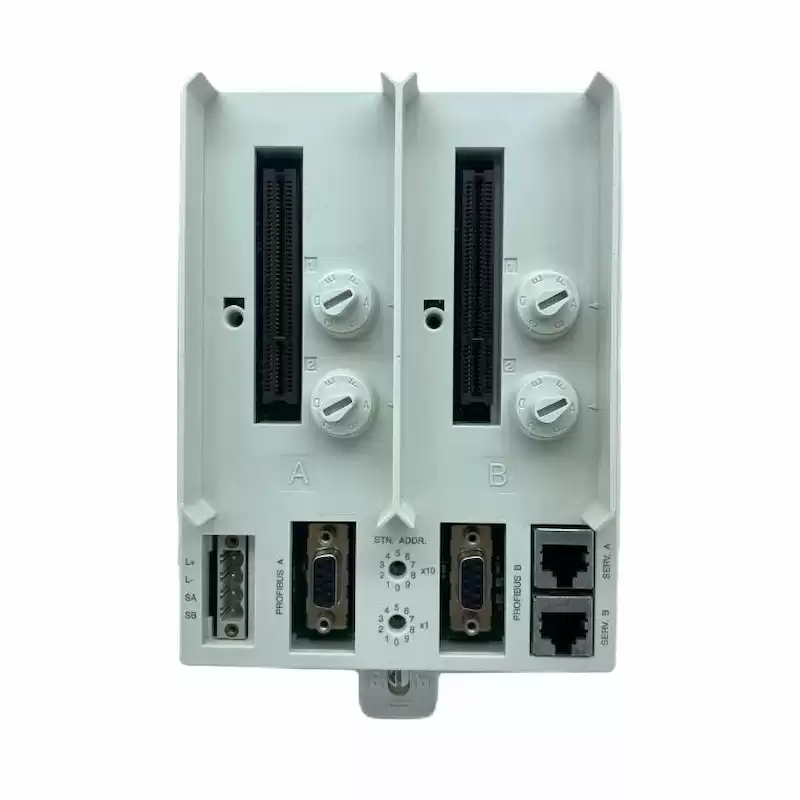

The TU847 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A. The MTU is a passive unit having connections for power supply, electrical ModuleBus, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU847 via TB806.



Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. TU847 is also available in a G3 compliant version (TU847Z).



Features and benefits:

• Power supply connection.

• Two PROFIBUS connections.

• Two service tool connections.

• Two rotary switch for station address setting.

• ModuleBus connections.

• Connector for ModuleBus Optical Port.

• Mechanical keying prevents insertion of the wrong module type.

• Latching device to DIN rail for locking and grounding.

• DIN rail mounted.

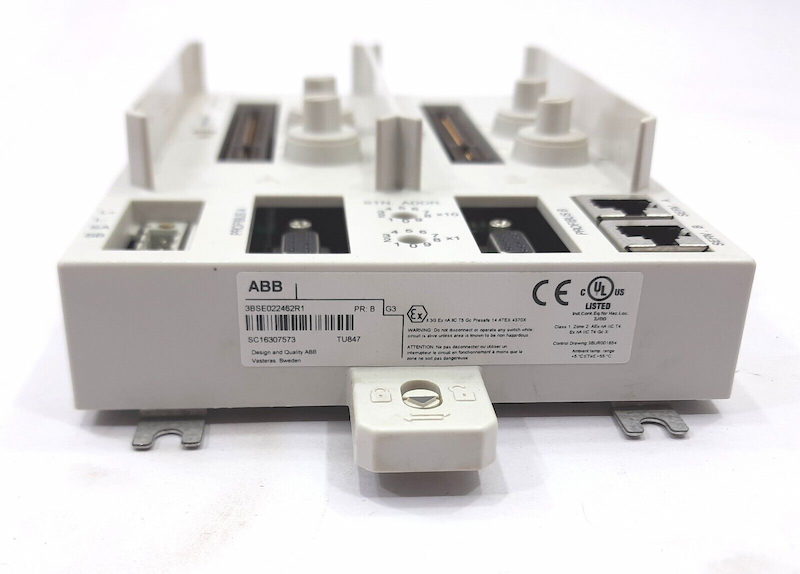

ABB TU847

Technical Specifications

Manufacturer ABB
Part Number TU847
Ordering Information 3BSE022462R1
Product Catalog S800 I/O
Description Module Termination Unit
Voltage 24 V
Current 1.5 A
Dimensions 124 mm x 186 mm x 47 mm
Weight 0.5 kg



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com






Product Tags tu847          abb tu847          3bse022462r1          abb 3bse022462r1          TU847 Module Termination Unit          3BSE022462R1 Module Termination Unit
