| Manufacture |
ABB |
| Model |
TU891 |
| Product ID |
3BSC840157R1 |
| Catalog |
Advant 800xA |
| Description |

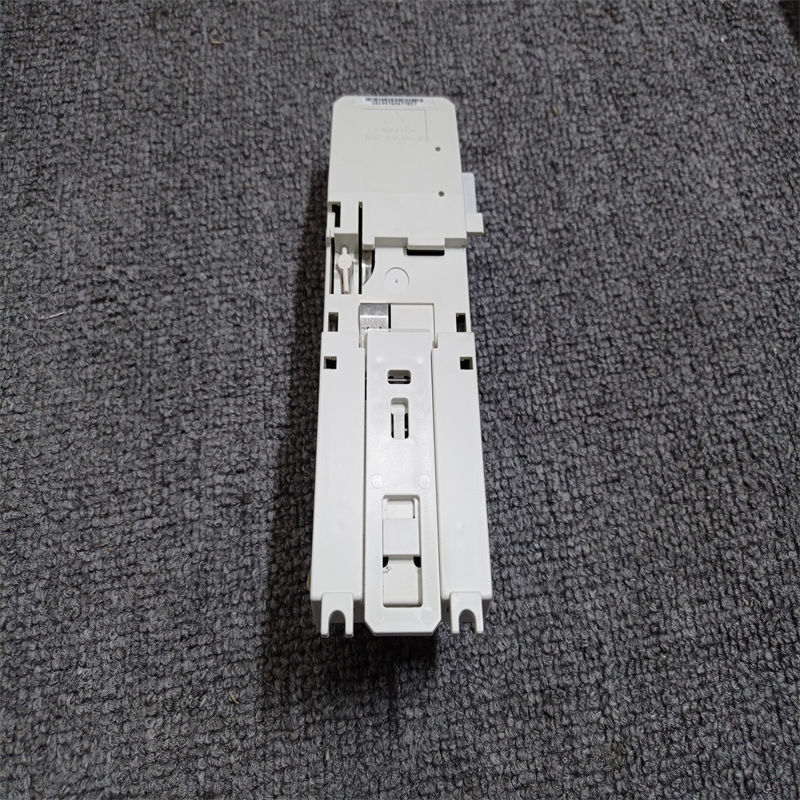

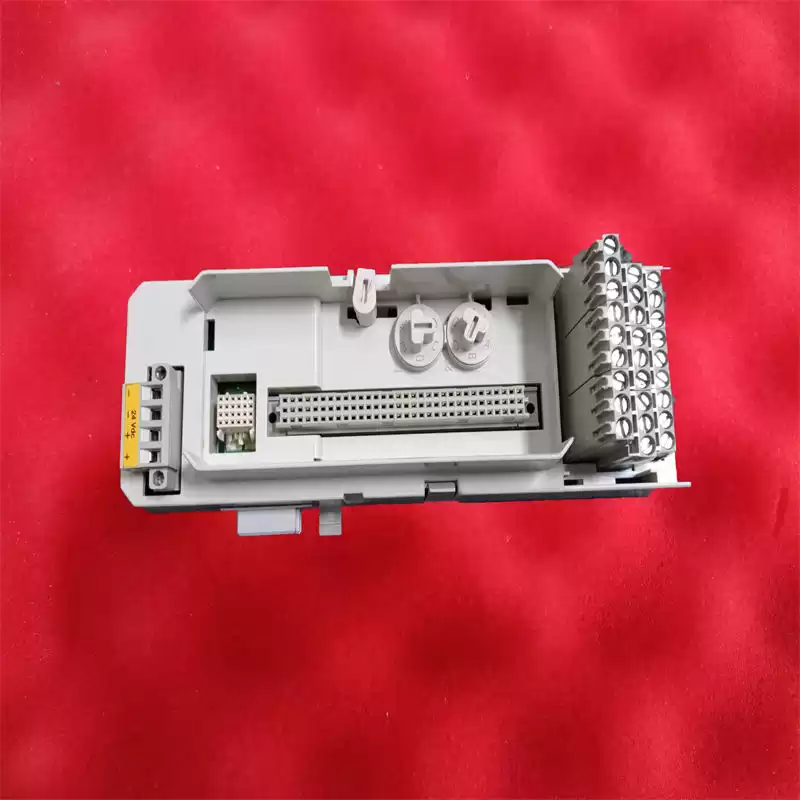

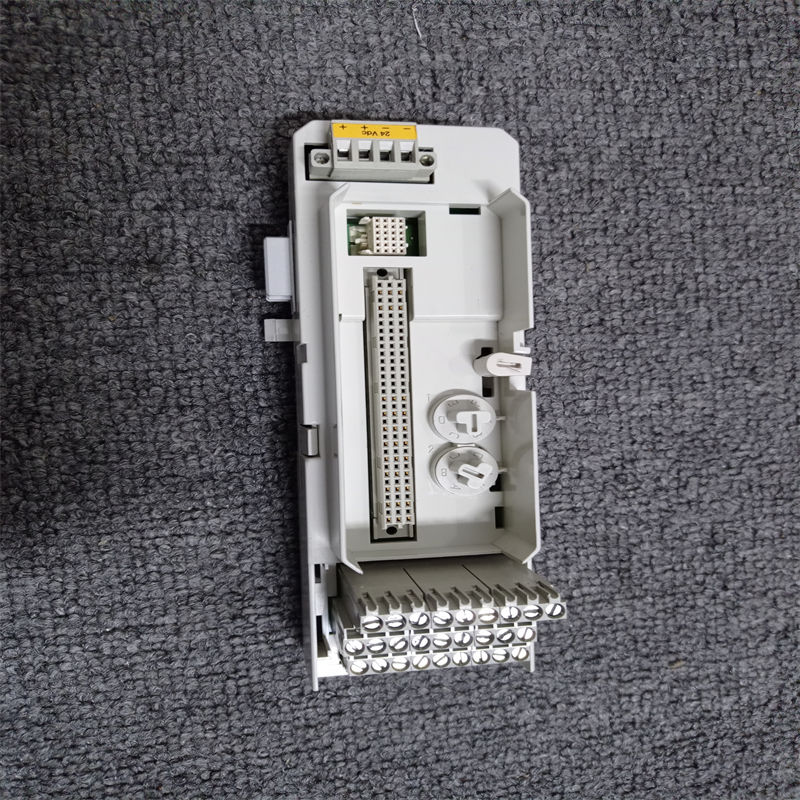

TU891 Compact MTU |
| Country of Origin |
Germany (DE) / Spain (ES)/ United States(US) |
| Dimension |
64mm*58mm*194mm |
| Weight |
0.17kg |
The TU891 MTU has gray terminals for field signals and process voltage connections. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel, but these are primarily constrained to specific values by the design of the I/O modules for their certified application. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. Two mechanical keys are used to configure the MTU for different types of I.S. I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. The keys used on the TU891 are of the opposite gender to those on any other type of MTU and will mate only with IS I/O modules.
Features and benefits:
1. Intrinsic safety applications - use with AI890, AI893, AI895, AO890, AO895, DI890 and DO890
2. Compact installations of I/O modules
3. Field signals and process power connections
4. Connections to ModuleBus and I/O modules
5. Mechanical keying prevents insertion of the wrong module
6. Latching device to DIN rail
7. DIN rail mounting
-
Quality
100% brand new and original
All the goods will be tested before shipment.
-
Warranty
Topteng offers a 12-month warranty from the date of delivery
In the event of non-conforming product (if damaged or incorrect product is received),
Any nonconformity must be reported within 7 days of receipt of goods.
-
Delivery Time
For the in stock items, we will send the order out within 5-7 days after receive the payment.
We can shipping all over the world via DHL,UPS,Fedex and EMS
