General info
|
|
Article number
|
3BSE026055R1
|

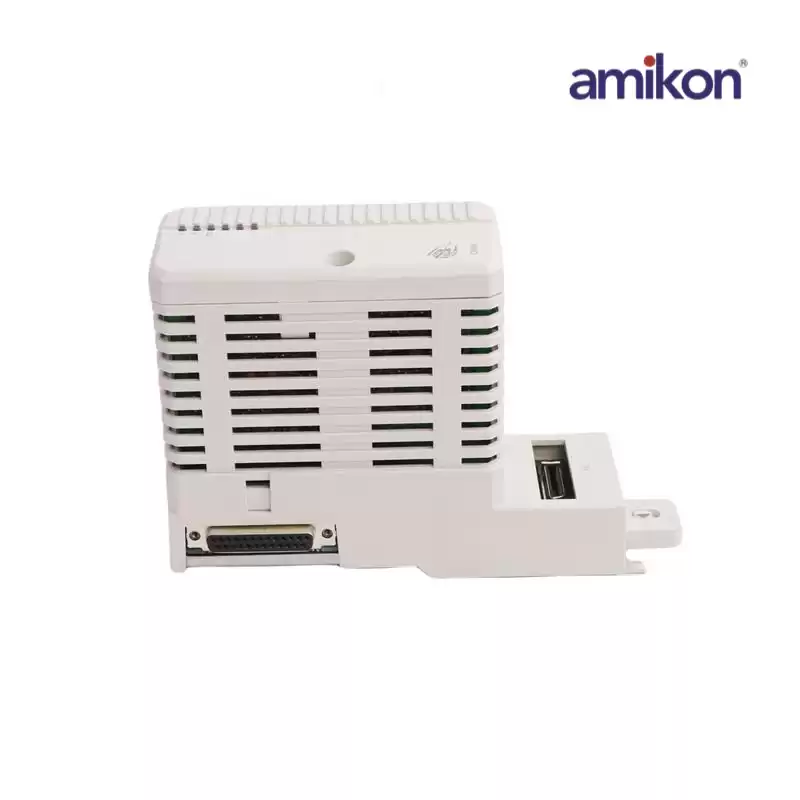

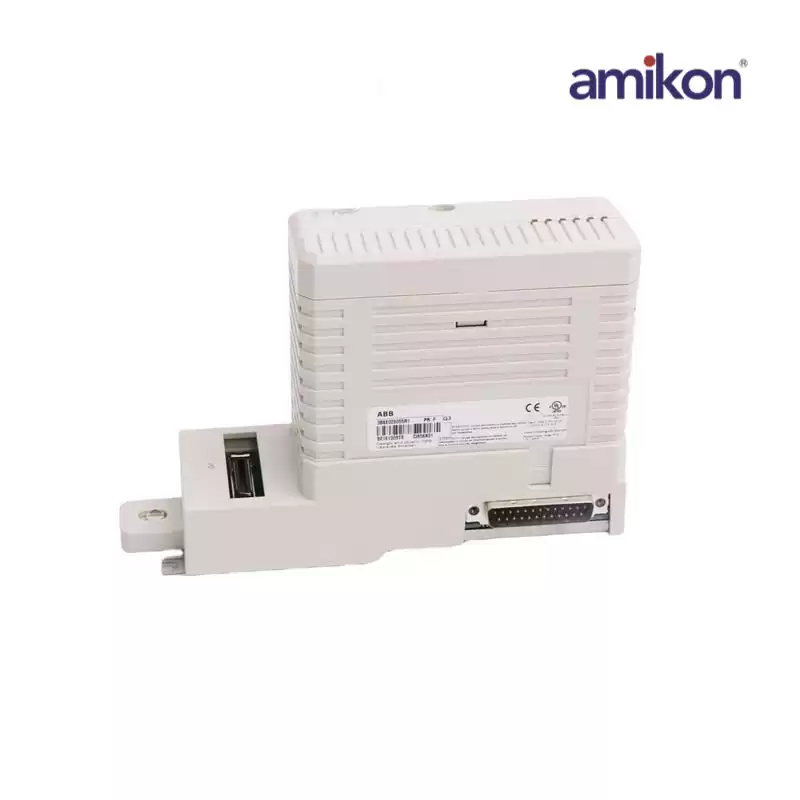

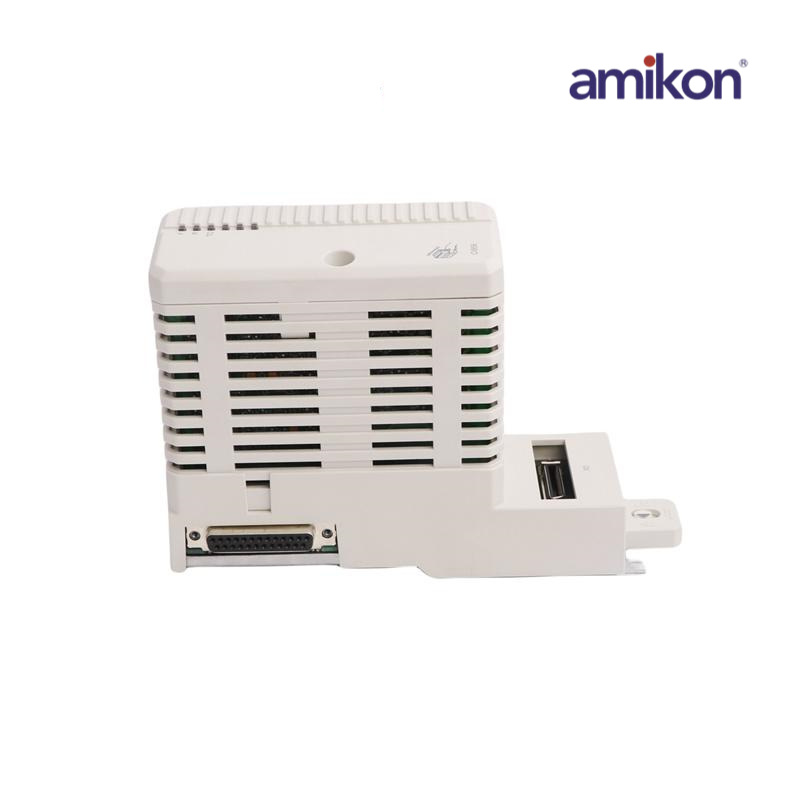

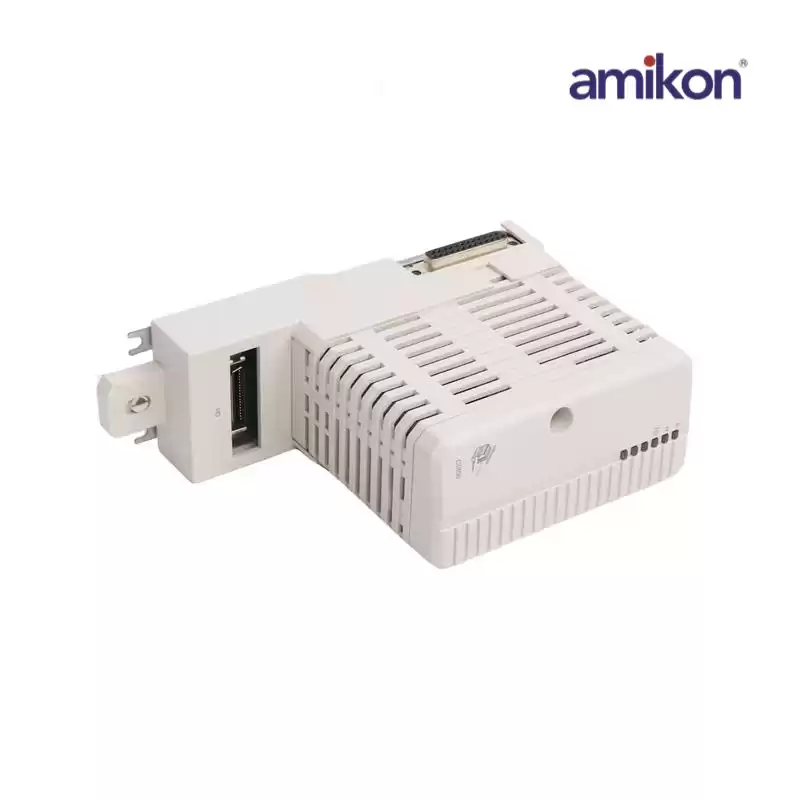

S100 I/O communication is realized in AC 800M by communication interface CI856, which is connected to the CEX-Bus through a base plate. The baseplate, TP856, houses a ribbon connector connecting to bus extender boards in S100 I/O racks and provides a simple DIN-rail mounting. Up to five S100 I/O racks can be connected to one CI856 where each I/O rack can hold up to 20 I/O boards.
The CI856 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source.
|
|
Type
|
ABB's S100 I/O
|
|
Master or slave
|
Master
|
|
HART
|
No
|
|
SOE
|
No
|
|
Redundancy
|
No
|
|
High integrity
|
No
|
|
Intrinsic safety
|
Yes
|
|
Mechanics
|
S800
|
