The SMB is located in the robot. The SMB does not have any LEDs located on it.The SMB reads the resolvers feedback and converts the analog voltage into a digital signal.
|
|
|

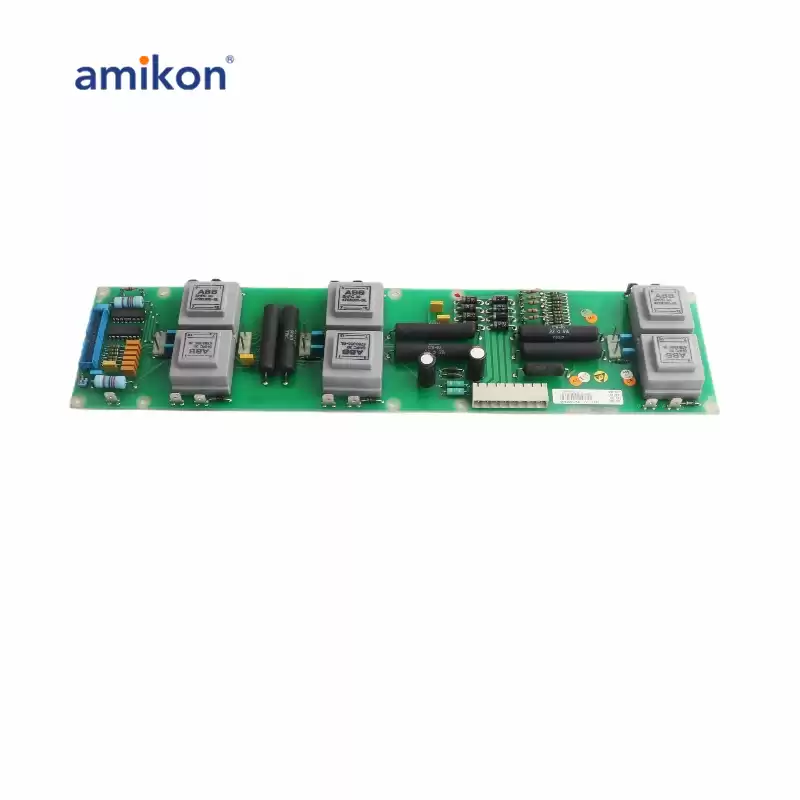

YXU169F YT204001-JT Data sheet
|
Then the SMB converts the digital signal into a serial communication.The SMB can be checked most thoroughly with an Oscilloscope.
|
|
The position of all six (6) axes resolvers are communicated to the robot computer every .5msec.
|
|
The signals to check for are the Serial Data Out (SDO) and the Serial Data In (SDI). Another signal to check would be the exciter signal going to the resolvers.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
