ABE040 204-040-100-011

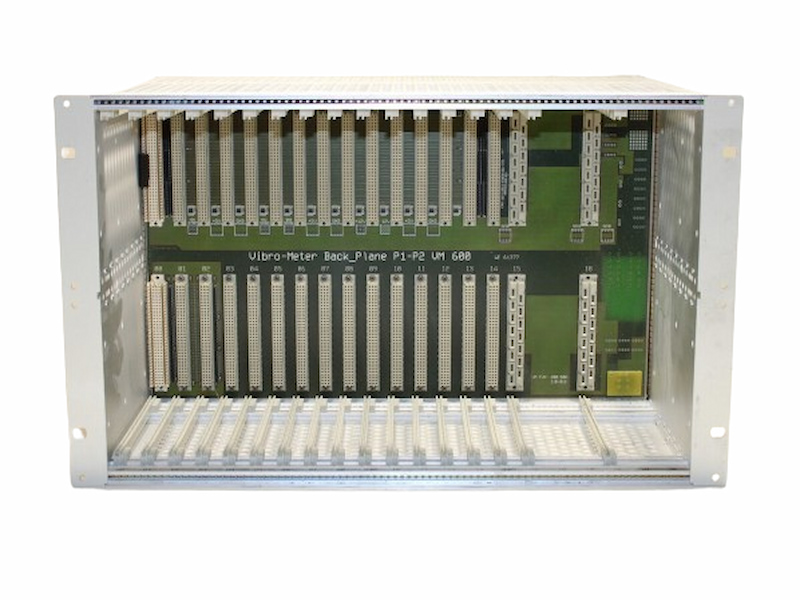

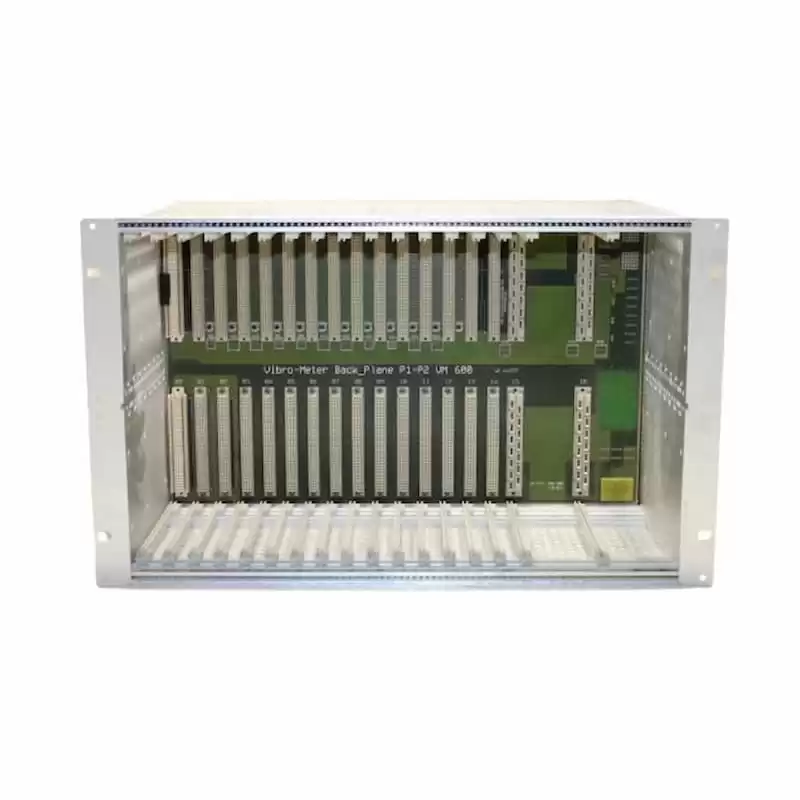

The ABE040 and ABE042 system racks are used to house hardware for the machinery protection and/or condition monitoring systems. These are very similar, differing only in the position of the mounting brackets. Both racks have a standard height of 6U and provide mounting space (rack slots) for up to 15 single-width modules (card pairs), or a combination of single-width and multiple-width modules (cards). These racks are particularly suitable for industrial environments, where equipment must be permanently installed in 19″ cabinets or panels.
available at the rear of the rack, which indicates that the installed power supplies are operating normally. One or two RPS6U power supplies can be installed in a system rack. A rack can have two RPS6U units installed for different reasons: to supply power to a rack with many cards installed, non-redundantly, or to supply power to a rack with fewer cards installed, redundantly.
When a system rack is operating with two RPS6U units for power supply redundancy, if one RPS6U fails, the other will provide 100% of the power requirement and the rack will continue to operate.
system rack
FEATURES
» 19″ system rack with a standard height of 6U
» Robust aluminium construction
» Modular concept allows specific cards to be added for machinery protection and / or condition
monitoring
» Cabinet or panel mounting
» Backplane supporting the VME bus, the system’s raw signal, tacho and open collector
(OC) buses, and power supply distribution» Power supply check relay
KEY FEATURES AND BENEFITS
• From the vibro-meter® product line
• 19″ system racks with a standard height of 6U
• Robust aluminium construction
• Modular concept allows specific cards to be added for machinery protection and/or condition monitoring
• Cabinet or panel mounting
• Backplane supporting the VME bus, the VM system's Tacho, Raw and Open collector (OC) buses, and power supply distribution
• Uses the RPS6U rack power supply: AC and/or DC input versions
• Power supply check relay
Technical Specifications
| Part Number |
204-040-100-011 |
| Ordering Information |
ABE040 |
| Product Catalog |
Vibration Monitoring |
| Description |
System Rack |
| Voltage |
±30 VRMS / ±42.4 VAC(PEAK) or 60 VDC |
| Current |
4 AAC, 3 ADC |
| Dimension |
440 mm × 300 mm × 482.6 mm |
| Weight |
6.5 kg |
