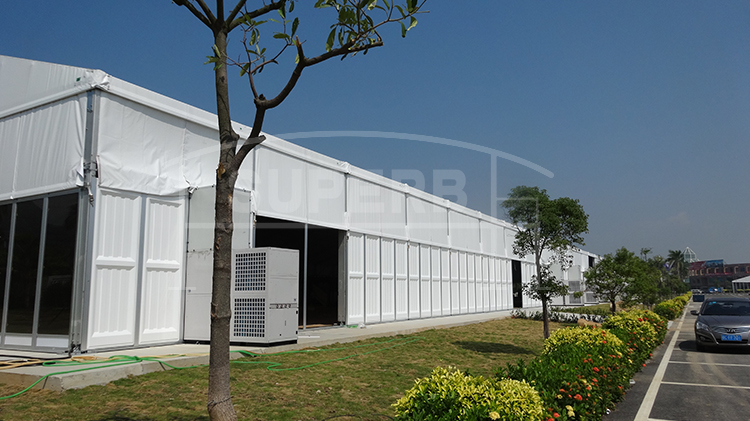

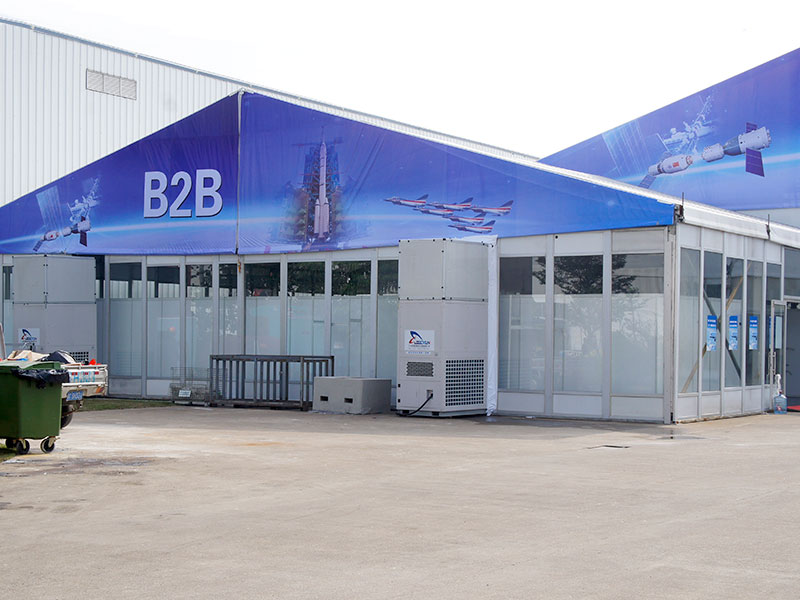

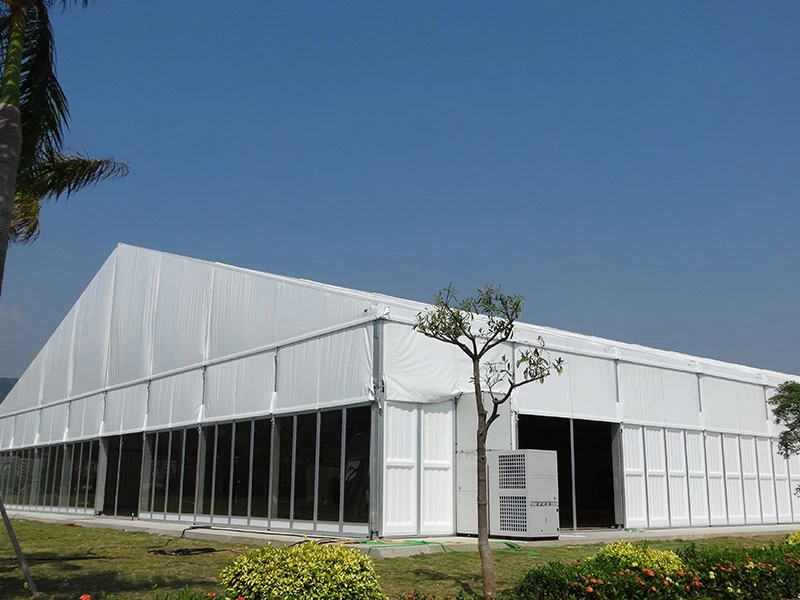

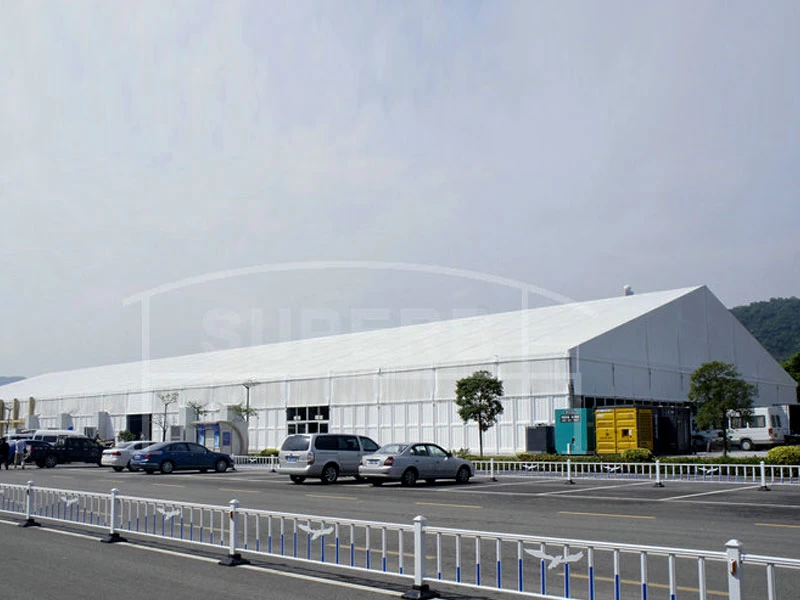

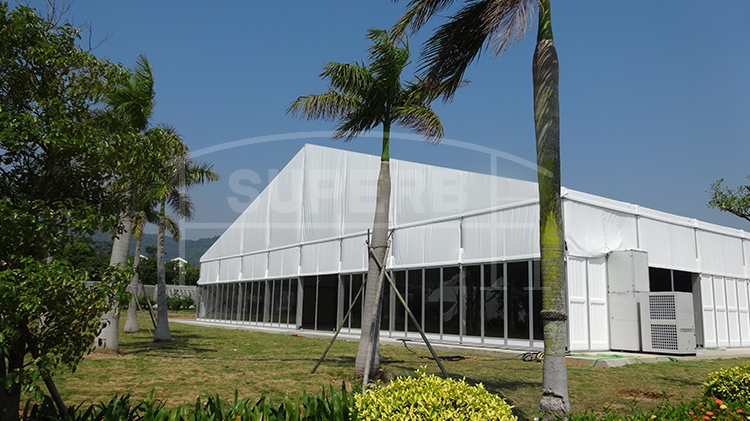

Abs Wall Event Marquees For Sale
Except normal white pvc fabric for marquee, Superb offer ABS wall for tent as well.
Sound proof function and elegant outlook, which make event are more luxury and high class, it is prefect to hold a event which can enjoy yourself inside marquee but not bother the others outside. Our event marquees all with waterproof fabric and come with flame retardant certificated, waterproof and UV resistance, best materials and good craft , Superb aluminum marquee make your event or party are more impressive.
Abs Wall Event Marquees's Features:
● No exterior guy ropes or staking required.
● No poles inside, 100% interior space be used.
● Roof and gable vent is available.
● Relocatable, easy to install, dismantle and transport.
● Full line accessories available.
Abs Wall Event Marquees's Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
Abs Wall Event Marquees's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
Abs Wall Event Marquees's Available sizes:
● Clear span available from 3m to 60m.
● Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
The Specification of Abs Wall Event Marquees For Sale
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
LS20/4-5
|
20
|
4
|
7.2
|
5
|
18°
|
10.7
|
100
|
|
LS25/4-5
|
25
|
4
|
8
|
5
|
18°
|
10.7
|
100
|
|
LS30/4-5
|
30
|
4
|
8.9
|
5
|
18°
|
10.7
|
100
|
|
Main frame Profile
|
256x120x5mm（4-channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum
6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile,
flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
