AC 220V to DC power supply triac dimmable led driver 60w dc 12V 24V LED transformer

A series of triac dimmable led driver divide triac dimmable constant voltage led driver & triac dimmable constant current led driver. Through 100% full load burn-in test. It application with indoor & outdoor illuminating lights.



  • CertificationUL CE ROHS
  • Size178*61*24mm
  • Dimming modetriac dimming
  • Working Modeconstant voltage
  • Output Current5A
  • Output Voltage12v
  • Input Voltage100-277VAC

AC 220V to DC power supply triac dimmable led driver 60w dc 12V 24V LED transformer



UL listed 12v 24v Triac dimmable led driver are our competitive product.dimmable led power supply have high efficiency,high reliability,save energy Through 100% full load burn-in test. It application with indoor & outdoor illuminating lights.

  Specification


model

SMT-012-060VTHW

SMT-024-060VTHW

Output

DC Voltage

12V

24V



Voltage Accuracy

±0.5V

±0.5V



Voltage Regulation

±0.5%



Rated current

5.00A

2.50A



Load Regulation

±1%





Rated power

60W

60W

Input

Voltage Range

100-277V AC



Frequency Range

4763HZ



Power Factor ( Typ.

0.98@120VAC  0.95@277VAC

0.98@120VAC  0.95@277VAC



Full Load EfficiencyTyp.

>82%

>83%



AC CurrentTyp.

0.9A/110VAC



Inrush Current Typ.

14A, 50%, 780us



Leakage current

<0.50mA



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.





Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed



Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed



Over voltage

140VAC(90~135V) , ≦285VAC(170~277V)

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310



Withstand voltage

I/P-O/P:3.75KVAC



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B



EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547

Alight industry level surge4KV

Others

Weight

About 0.35Kg



Size

178*61*24mmL*W*H



packing

20PCS/CTN

 L*W*H

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

  Label





Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver

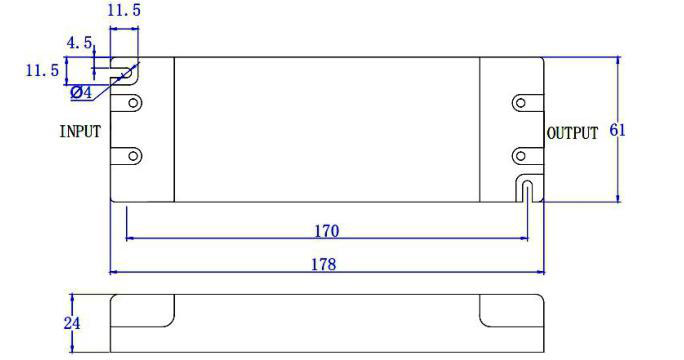

  Mechanical Specification



60 watt dimmable led driver



Input terminals "Black" and "White" to connect to AC L and N.
Output terminals "Red" to LED Positive side (+) , "Black"  to LED Negative side (-).




  Dimming Operation


Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Please try to use dimmers with power at least 1.5 times as the output power of the driver.

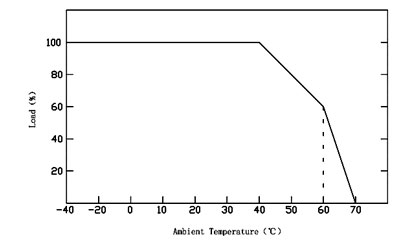

  Derating Curve


60 watt dimmable led driver

  Certifications


60 watt dimmable led driver
