AC 3 pin PV Solar connectors
Our AC photovoltaic connectors are used for the connection of panels, inverters or junction boxes. Different tools are used for screw installation and removal, each coupler has an exceptional resistance to UV light, salt spray, high temperature, vibration, and shock, as well as feature an outstanding sealing performance. Each coupler is TUV certified for quality and reliability.

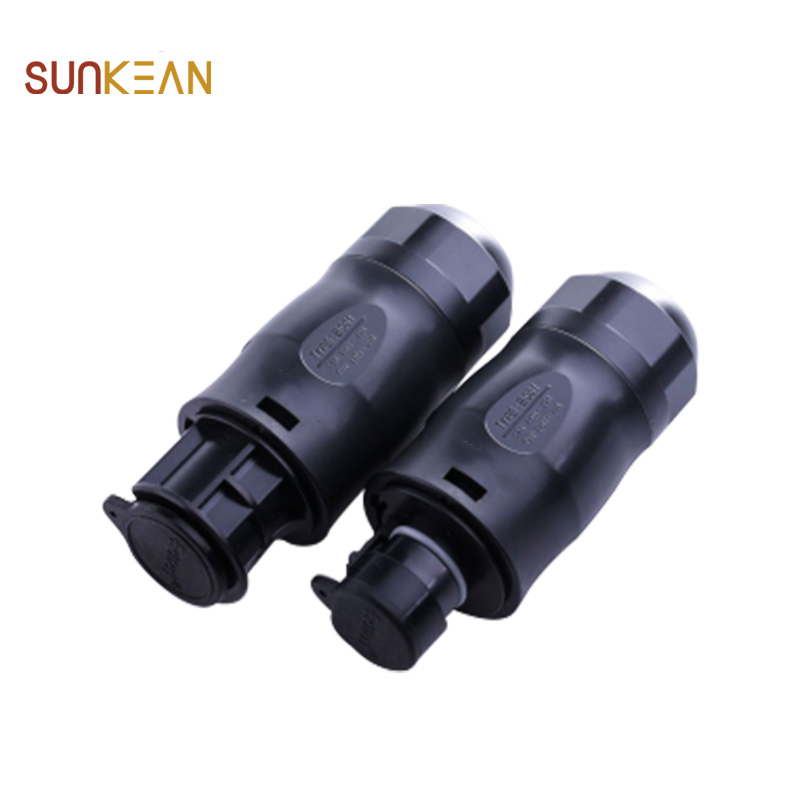

Cable to Cable:
Outline size(Close state)
|
Ø34.8*153mm
|
|
Applicable environment temperature
|
-40°C~+90°C
|
|
Rated voltages
|
250V350V AC(CSA) 250V AC(TUV)
|
|
Rated current
|
25A(4mm²)
|
|
Max current
|
30A(4mm²)
|
|
Number of terminals
|
2+PE
|
|
Material of terminals
|
Copper alloy&silver plated
|
|
Contact resistance
|
≤1mΩ
|
|
Material of enclosure
|
PPO
|
|
Over-voltage category
|
III
|
|
Insulation resistance
|
≥100MΩ
|
|
Degree of protection by enclosure
|
IP68(1.5M,24H)
|
|
Enclosure flame class
|
UL94-V0
|
|
Applicable wire gauge
|
2.54.0mm²
|
|
Outer cable diameter
|
10-14mm
|
|
Termination
|
Screw type
|
|
Locking system
|
Snap-in
|
|
Standard
|
UL6703A;EN61535; PPP59015A;2013
|
|

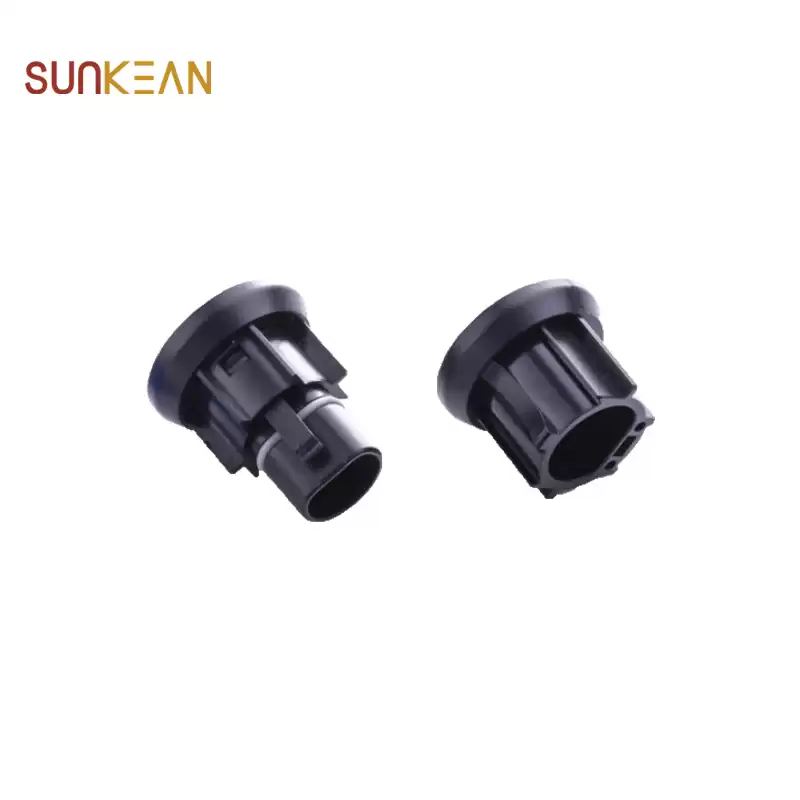

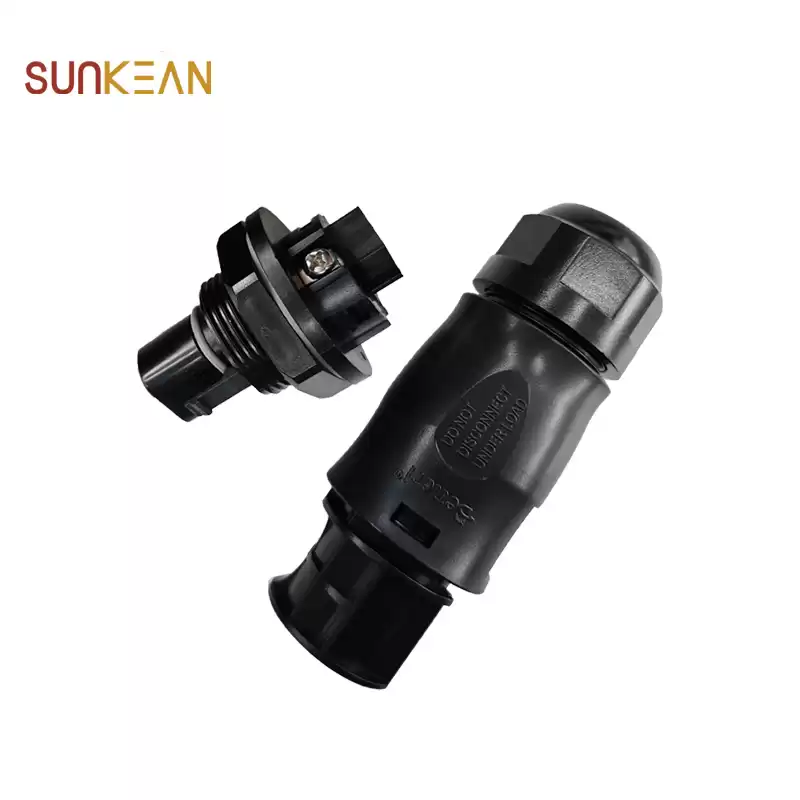

Flange to Cable:
|
Outline size(Close state)
|
Φ36*120mm
|
|
|
Applicable environment temperature
|
-40℃~+90℃
|
|
Rated voltages
|
250V350V AC(CSA) 250V AC(TUV)
|
|
|
Rated current
|
25A(4m㎡)
|
|
|
Max Current
|
30A(4m㎡)
|
|
|
Number of terminals
|
2+PE
|
|
|
Material of terminals
|
Copper alloy & silver plated
|
|
Contact resistance
|
≤1mΩ
|
|
Material of enclosure
|
|
PPO
|
|
Over-voltage category
|
III
|
|
Insulation resistance
|
≥100MΩ
|
|
Degree of protection by enclosure
|
IP68(1.5m,24H)
|
|
Enclosure flame class
|
UL94-V0
|
|
Applicable wire gauge
|
2.54.0m㎡
|
|
Outer cable diameter
|
10-14mm
|
|
Termination
|
Screw type
|
|
Locking system
|
Snap-in
|
|
Standard
|
UL6703A; EN61535; PPP59015A;2013
|
|
Product Features:
------Compact dimensions, more pleasing in form;
------Screw connection for easy field installation;
------Choose the best plastic material, ensure the product performance and using life;
------IP68 level protection of enclosure;
------Product quality is stable and reliable; | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
