AC 5 Axis Gantry Type Cutting Table

The AC 5 Axis Gantry Type Cutting Table boasts a robust construction, ensuring stability and durability even in the most demanding of cutting operations.  The gantry structure provides superior rigidity, allowing for high-speed cutting without compromising accuracy.

Equipped with advanced CNC software, operators can easily program and control the cutting process with utmost precision.  The intuitive interface and user-friendly controls make it possible for both novice and experienced operators to achieve excellent results.



AC 5 Axis Gantry Type Cutting Table

Basic machine specification:

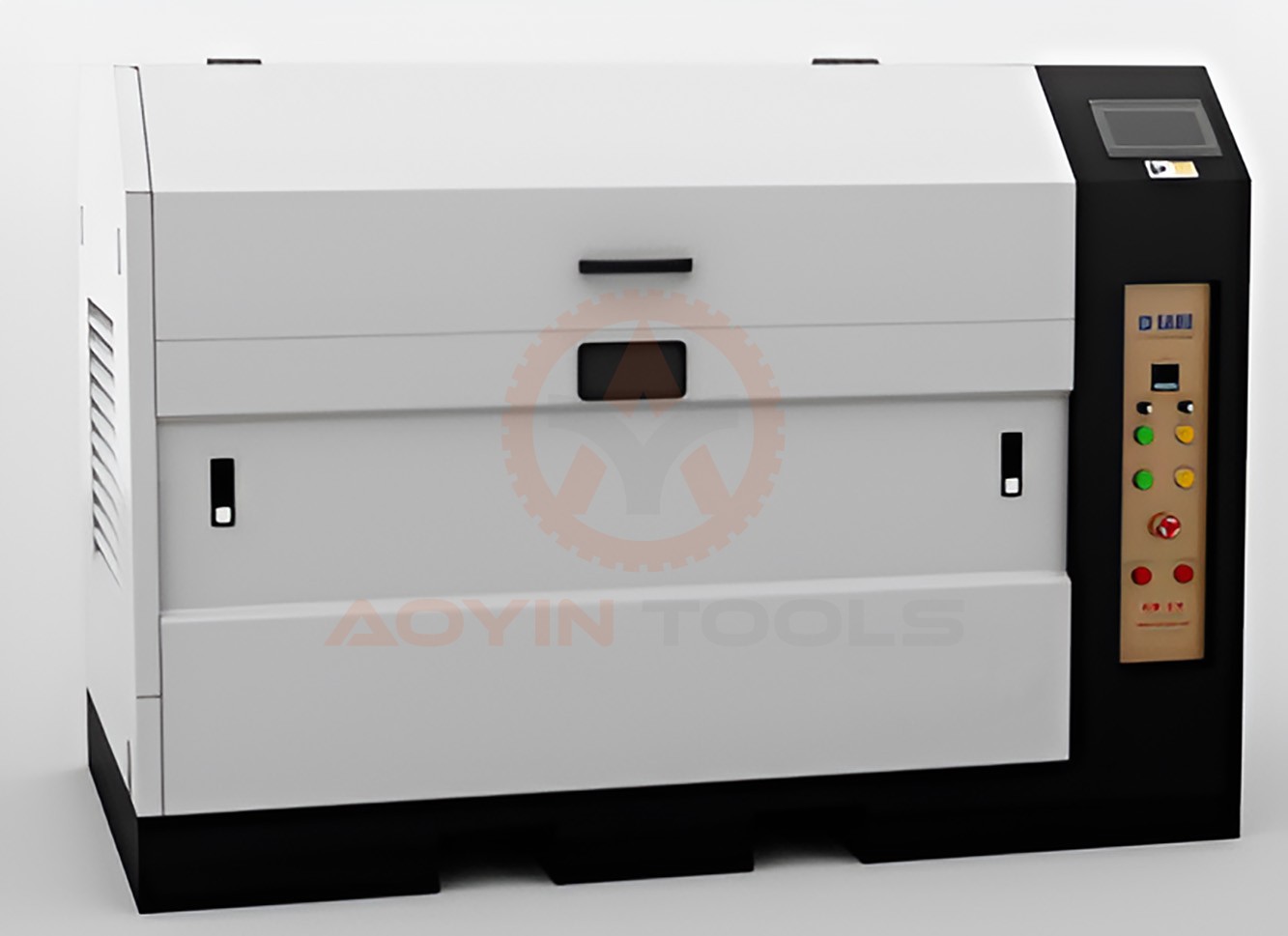

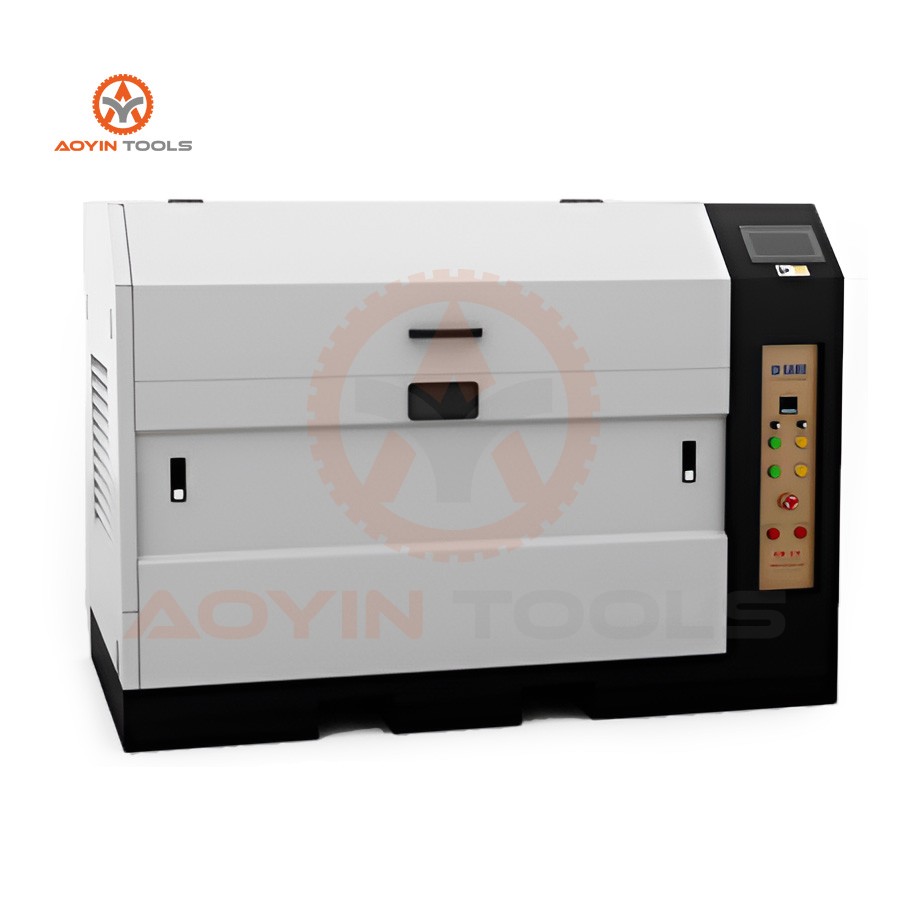

1)50HE intensifier pump

50HE intensifier pump

Dimension(L*W*H) 1800mmx1000mmx1400mm
Weight  1130Kg
Power rate  37kw/50hp
Max. pressure  420Mpa /4200bar
Working pressure 300-350Mpa
Max. oil discharge 104L/min
Max. Flow rate 3.7L/min
Max.Φ of orifice  0.33mm
Power supply 380V 50Hz
Water supply  ≥15.1L/min
Water pressure  ≥0.1Mpa
Hydraulic pump Bosch Rexroth brand variable displacement hydraulic pump
Electro-hydraulic proportional valve Bosch Rexroth brand
Cooling system Air cooling system

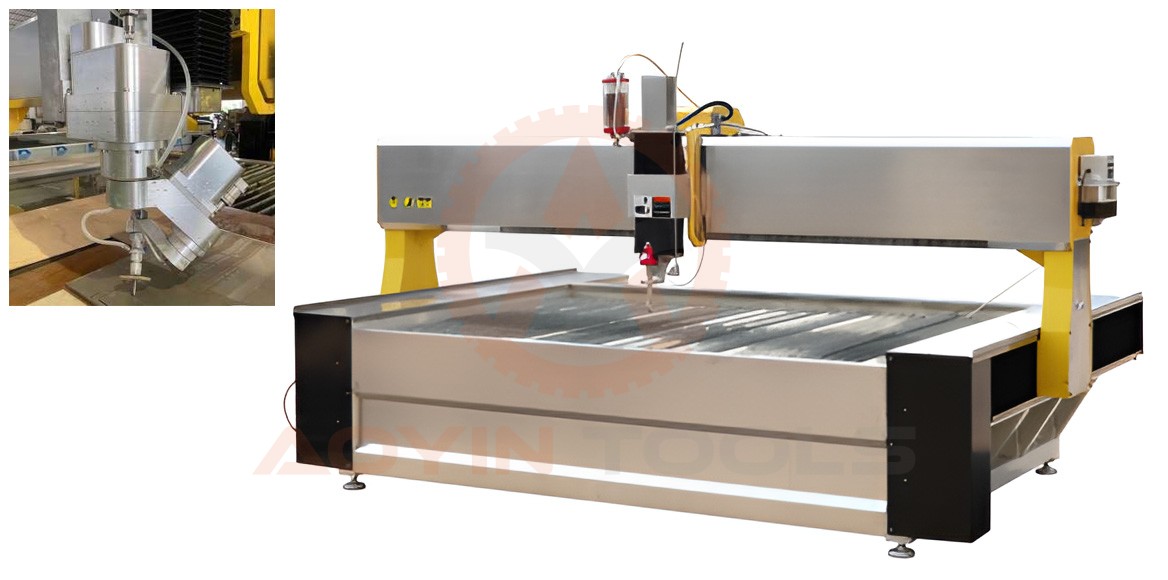

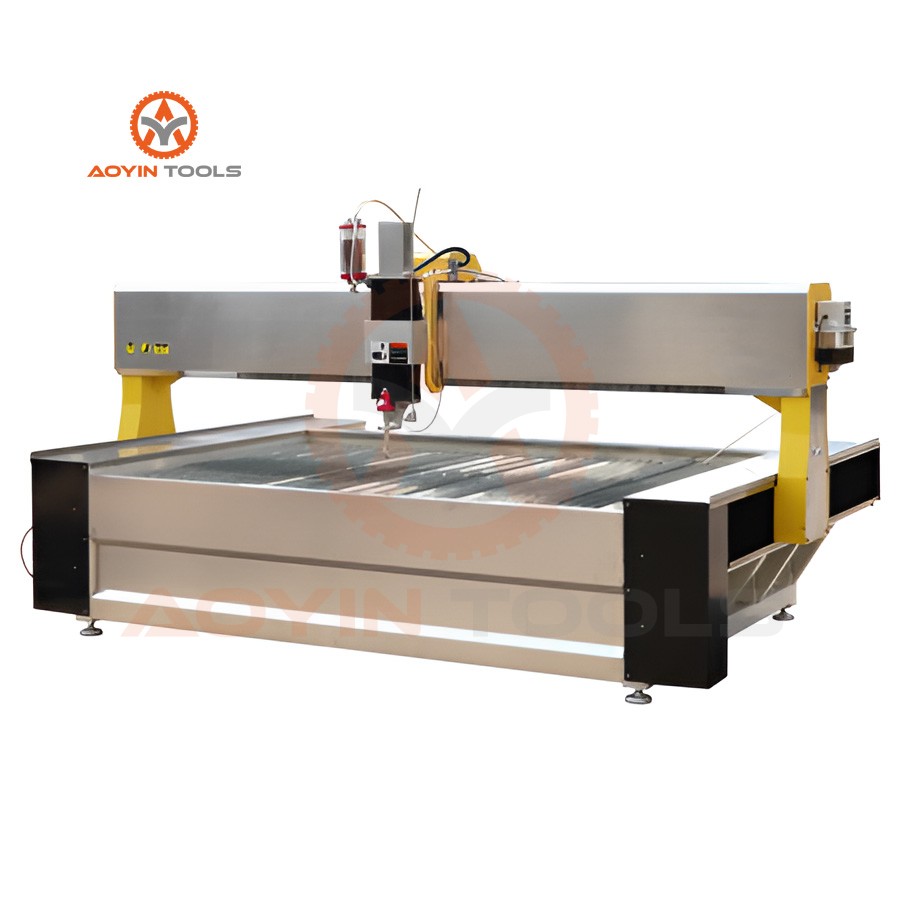

2)Gantry Type Cutting Table and AC 5axis cutting head

Gantry Type Cutting Table and AC 5axis cutting head

Type 3020
Dimension(mm) 3900*3050
Max.cutting range(mm)  3000*2000
Travel of Z axis 150mm
Control accuracy ±0.01mm
Cutting accuracy ±0.1mm
Re-positioning accuracy ±0.025mm/m
Max. moving speed 10000mm/min
A axis rotation angle ±67°
C axis rotation angle ±360°
Bevel cutting angle ±45°

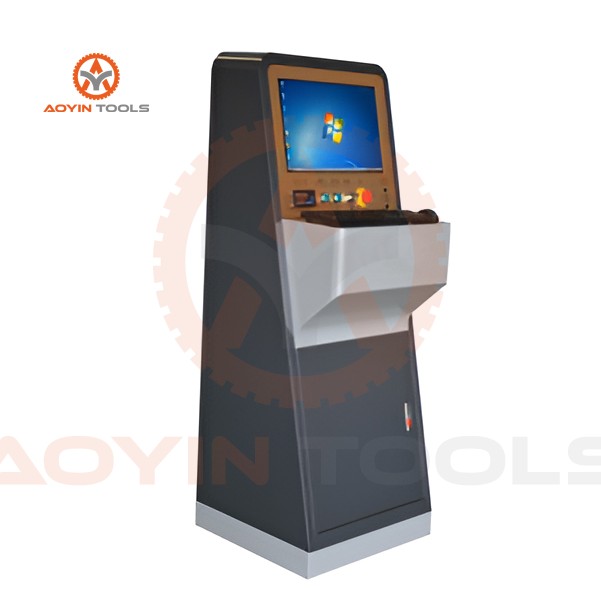

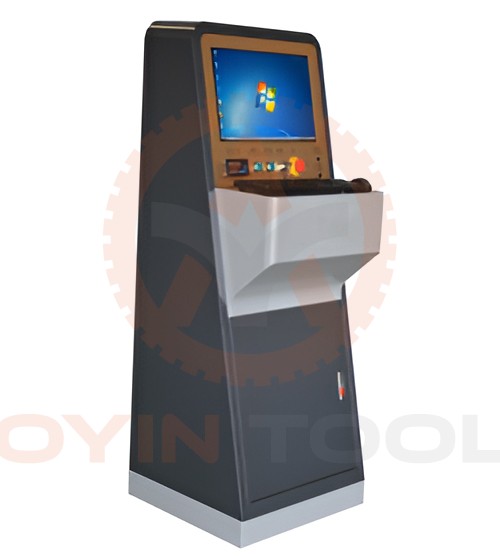

CNC Controller

Dimension (L*W*H) 600mm*550mm*1200mm
Weight 200Kg
Power supply  AC 220V  50/60Hz
Professional Water jet software NC Studio
Servo Driver YASKAWA , Japan/WEIHONG

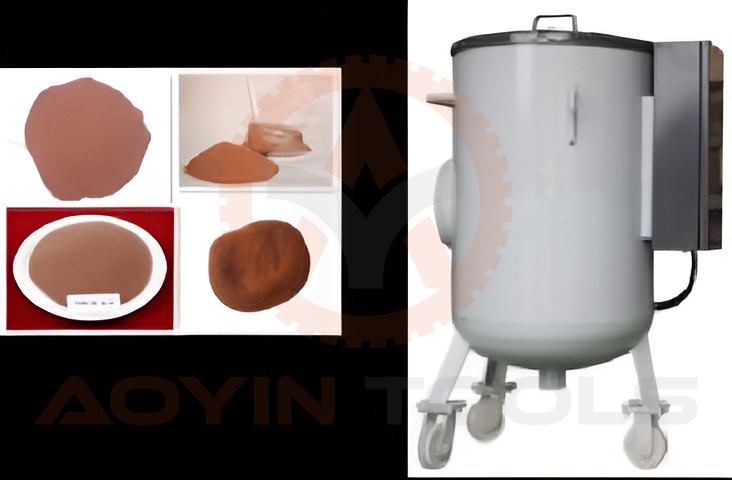

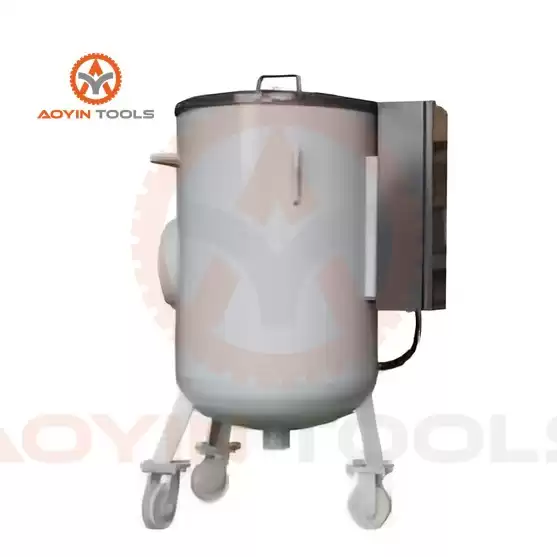

Auto Abrasive Feeding System

Dimension(L*W*H) 600mm*600mm*1400mm
Weight 80Kg
Max.capacity 200Kg
Max. air pressure supply 0.2Mpa
Voltage 24V
Power rate 30W
