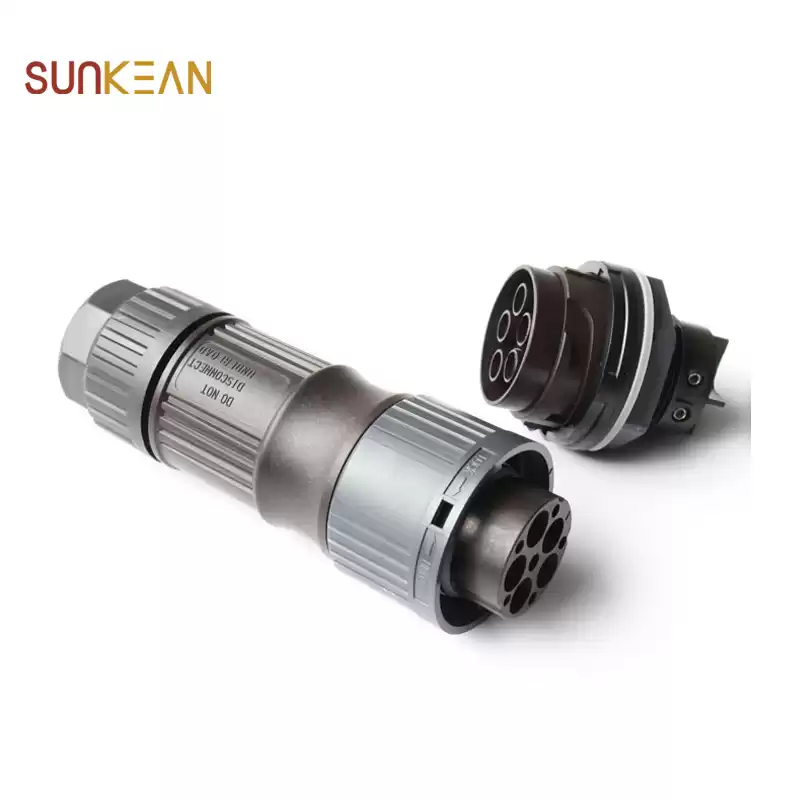

AC 5 pin PV Solar Circular connectors
This AC 3-phase connector features a large current-carrying capacity and an excellent resistance to UV light and high temperatures, making it ideal for use in the connection of medium-power string inverters. The housing is made of a high quality, imported PA66. The stability and reliability are guaranteed thanks to the snap-lock coupling system.
Product Information:
Pin Number
|
4P+PE
|
Rated Current
|
50A(when use 10mm² wire)
|
Rated voltage
|
690V
|
|
Contact Resistance
|
≤1mΩ
|
|
Rated Impulse Withstand Voltage
|
6000V AC
|
|
Over-voltage Category
|
III
|
|
Pollution Degree
|
2(mated)
|
|
Waterproof Rating
|
IP67(1m, 30min)
|
|
Insertion and Withdraw Force
|
50~100N
|
|
Flammability Rating
|
UL94-V0
|
|
Rated Temperature
|
-40℃~+85℃
|
|
Applicable Wire Gauge
|
2.5/4/6/10/16mm² or 14/12/10/8/6AWG
|
|
Outer Cable Diameter
|
15~24mm
|
|
Locking System
|
Bayonet
|
|
Size of Screw
|
M4X0.7(“--”type)
|
|
Wiring Connection
|
Screw type
|
|

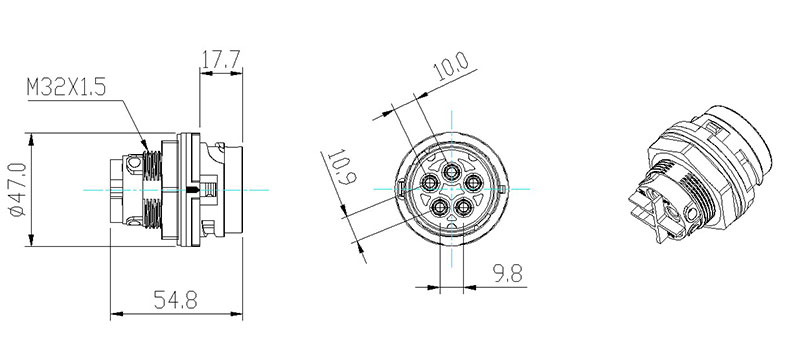

Fixed Thread Metric
|
M32
|
Size of Panel Cutout
|
Φ32.3+0.2/0
|
Product Features:
------Compact dimensions, more pleasing in form;
------Screw connection for easy field installation;
------Choose the best plastic material, ensure the product performance and using life;
------IP68 level protection of enclosure;
------Product quality is stable and reliable;
Packing & Delivery:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, solar extension cables , solar energy off grid, solar hot water panels, inverters etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of AC 5 pin Solar connector, AC 3-phase connector in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
