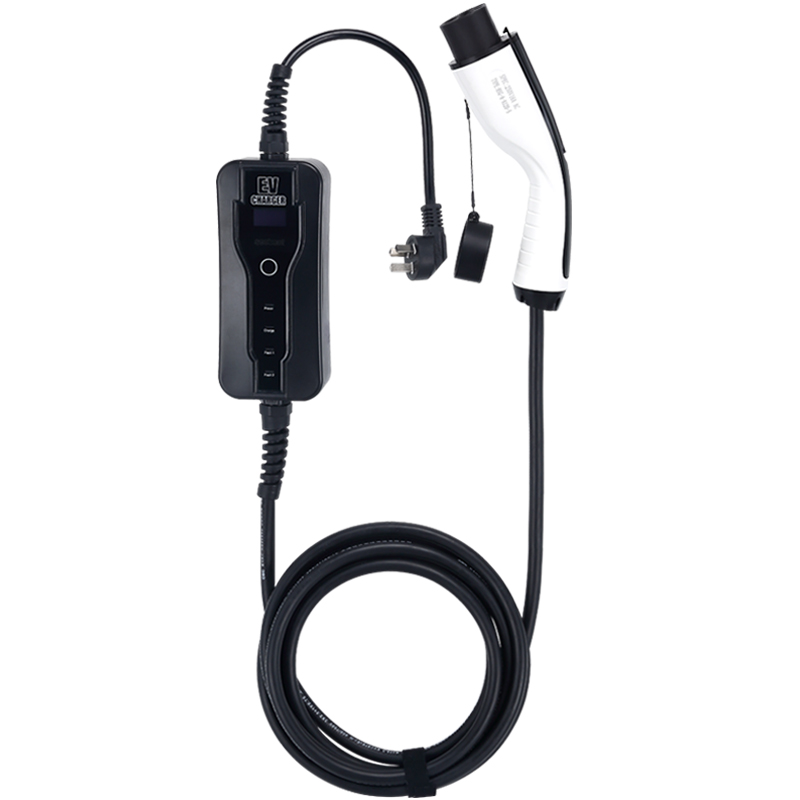

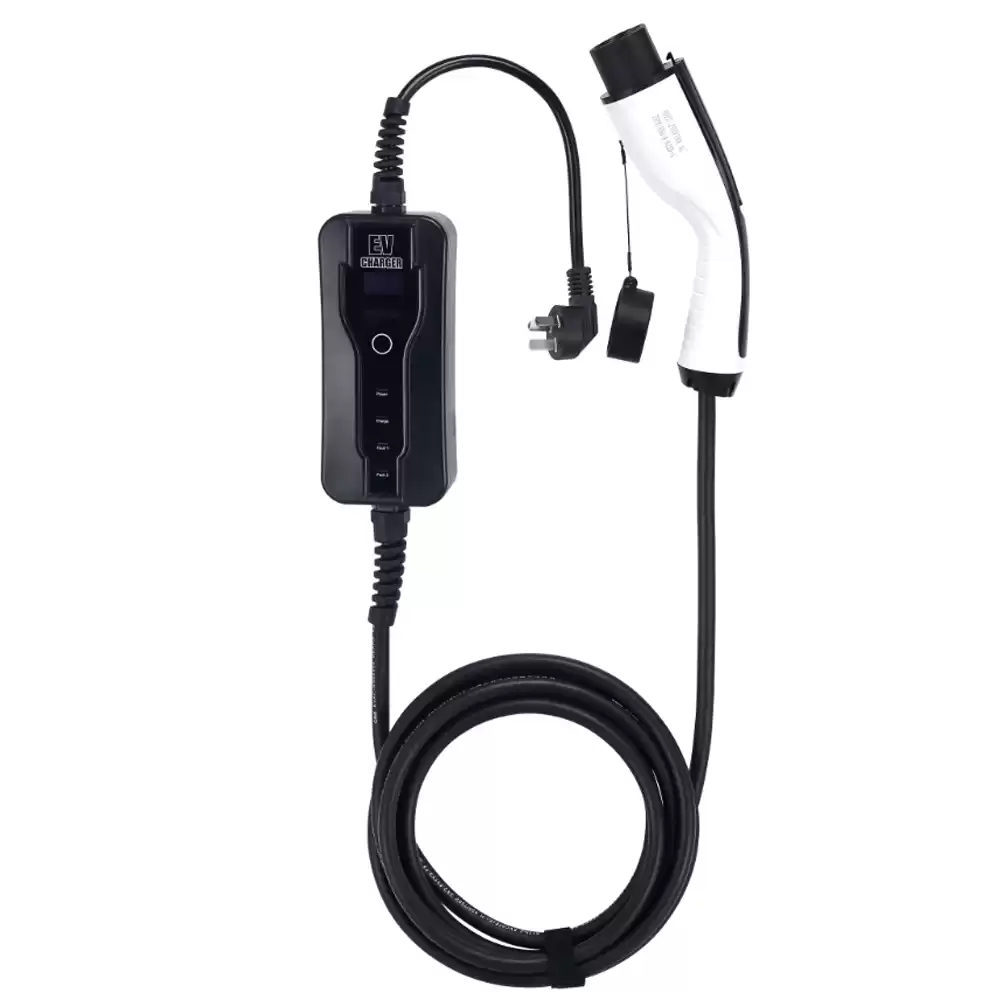

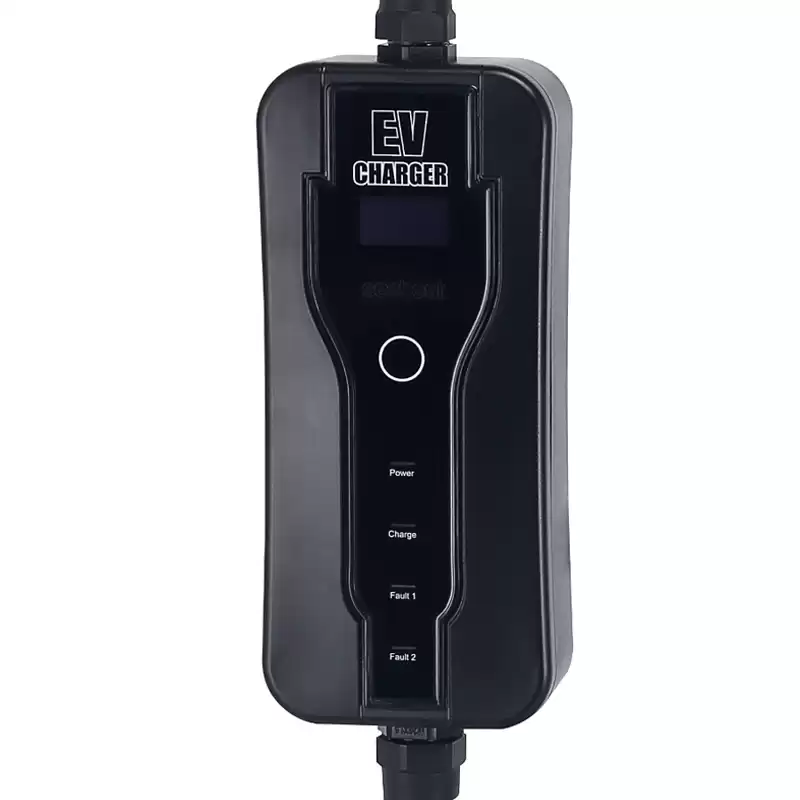

AC Electric Car 3.5KW 16A Adjustable Portable EV Charger
PRODUCTS FEATURES
-
Portable and compact design
-
Friendly interface
-
Adjustable Current 8A-16A
-
Scheduled Charging
-
Full Protection
-
IP66 Enclosure for Indoor and Outdoor Use
PRODUCTS APPLICATION
Commercial EV Charging/Workplace EV Charging,
Hotels EV Charging, Home/Residential EV Charging, Public EV charging
PRODUCTS SPECIFICATION
|
Model
|
EV-SB16A01
|
EV-SB16A02
|
EV-SB16A03
|
|
Version
|
GB Version
|
EU Version
|
US Version
|
|
Charging Capacity
|
3.5kW
|
3.5kW
|
3.5kW
|
|
Power Specification
|
|
Rated Voltage
|
200~240VAC / Single Phase
|
|
AC Input Connection
|
L/N/PE
|
L/N/PE
|
L1/L2/GND
|
|
Rated Current
|
8A/10A/13A/16A (Adjustable)
|
|
Frequency
|
50/60Hz
|
|
Output Power
|
3.5kW
|
3.5kW
|
3.5kW
|
|
Mechanical
|
|
Service Life
|
≥10000 times
|
≥10000 times
|
≥10000 times
|
|
Insertion Force
|
≤100N
|
≤100N
|
≤100N
|
|
Lock Retention Force
|
≥200N
|
≥200N
|
≥200N
|
|
Vehicle Rolling
|
2 tons of vehicle rolled back and forth more than 3
times
|
|

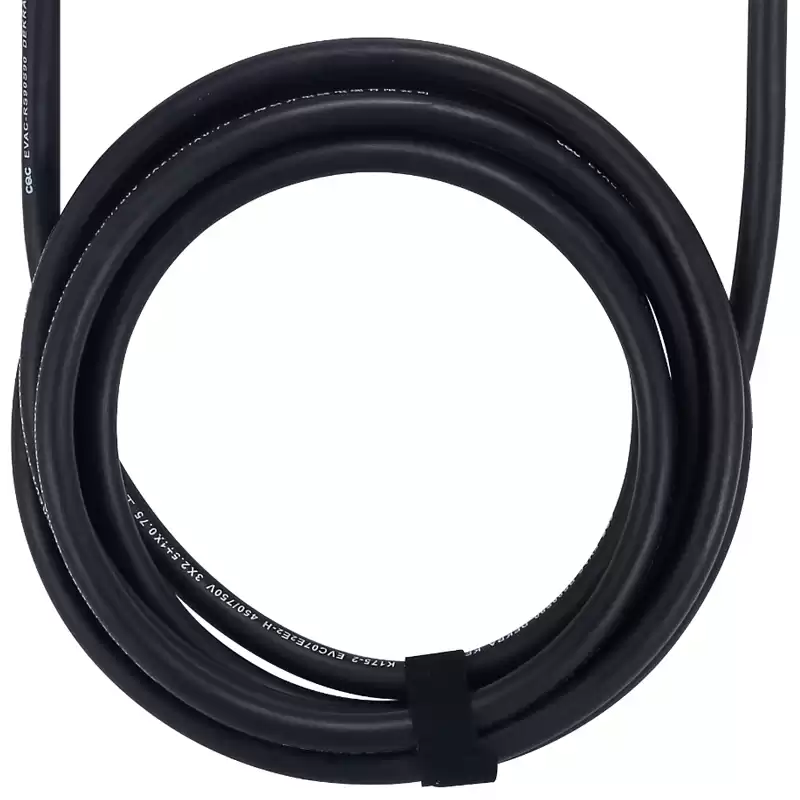

Cable Specification
|
3X2.5mm²+2X0.5mm²
|
3X2.5mm²+2X0.5mm²
|
3X14AWG+1X18AWG
|
|
Cable Length
|
5m or customizable
|
|
Environmental
|
|
Operating Temperature
|
-30℃~+50℃
|
-30℃~+50℃
|
-30℃~+50℃
|
|
Humidity
|
Max. 95% (Non-condensing)
|
|
Altitude
|
≤2000m
|
|
Protection Degree
|
IP55
|
IP55
|
IP55
|
|
Cooling Method
|
Natural Cooling
|
|
Safety
|
|
Charging Interface
|

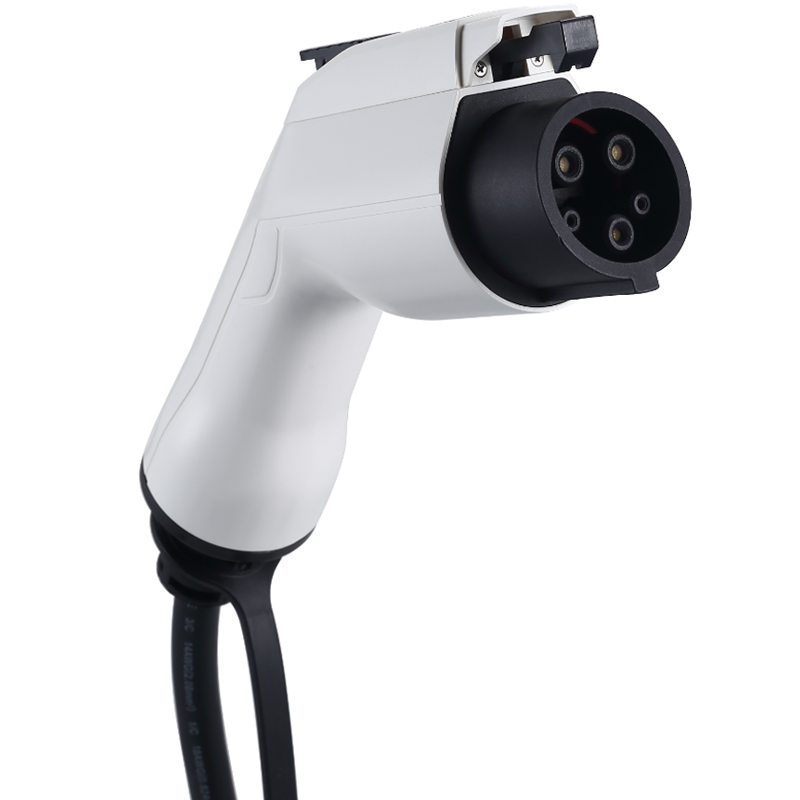

GB/T 20234.2
|

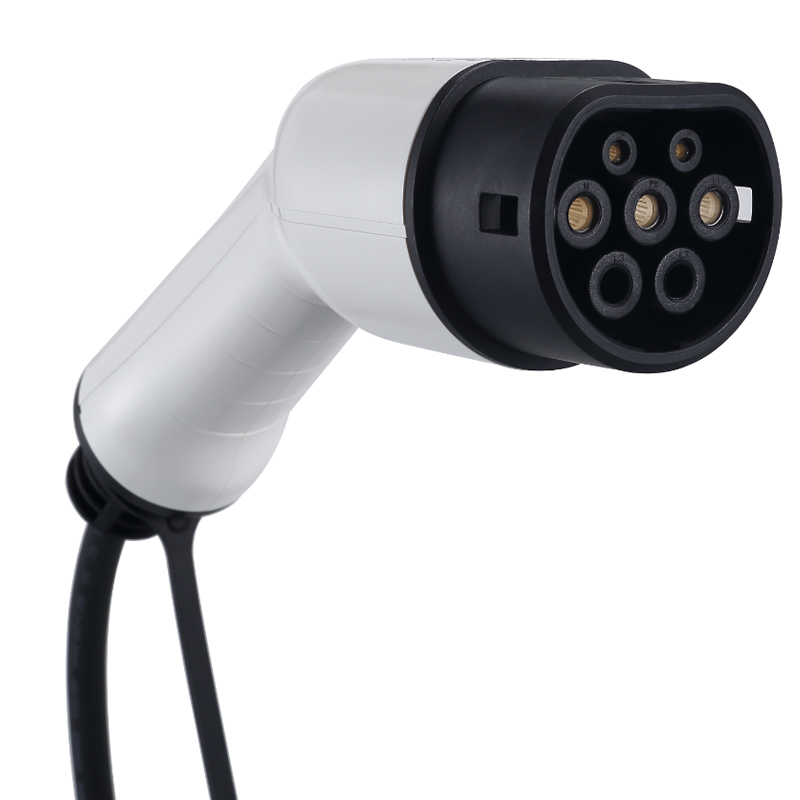

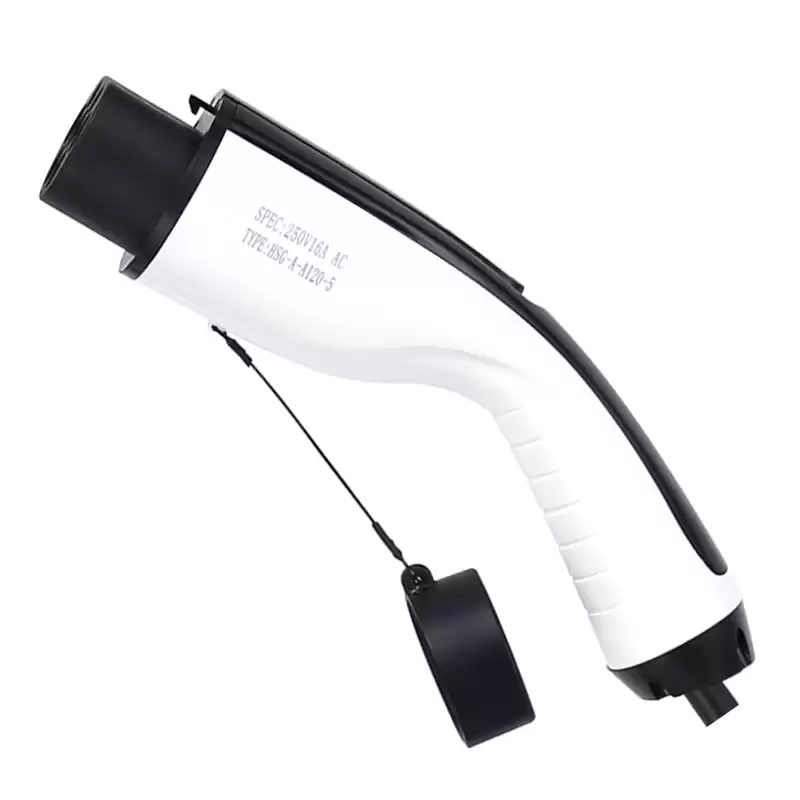

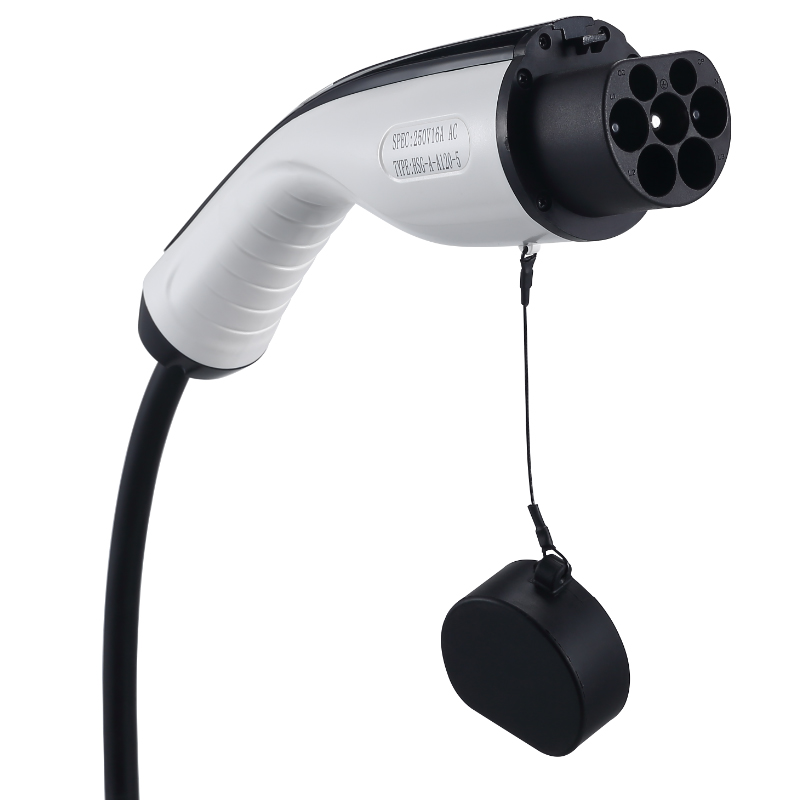

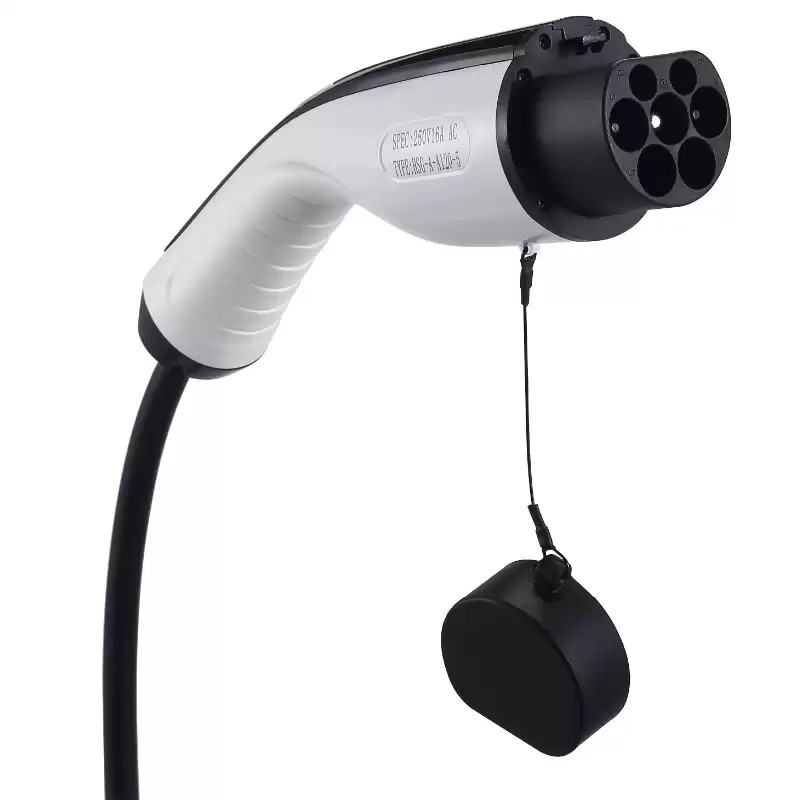

IEC 62196-2 Type 2 Plug
|
SAE J1772 Type 1 Plug
|
|
Warranty
|
|
12 Months
|
