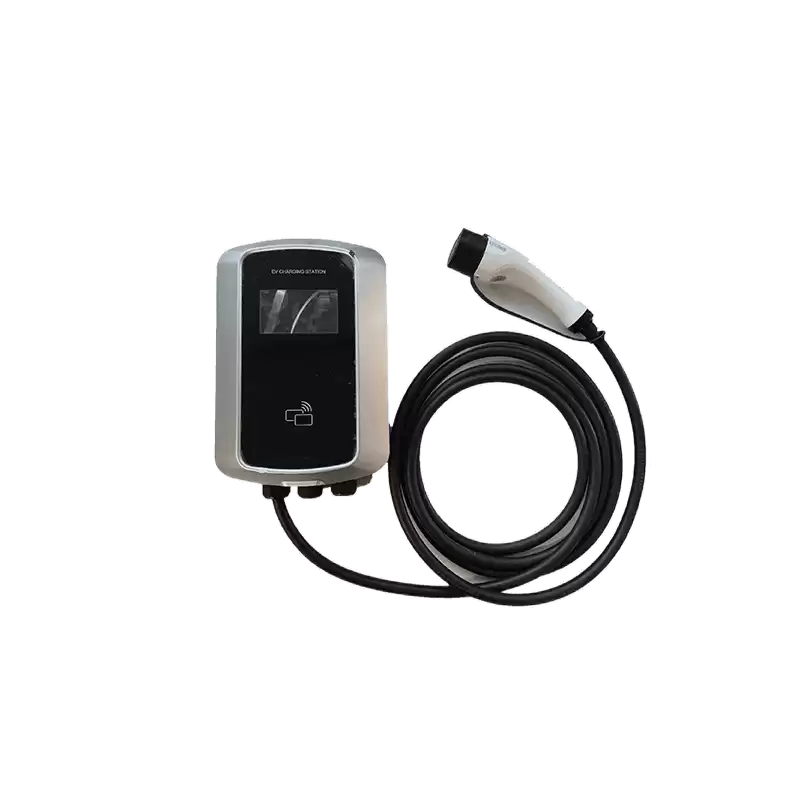

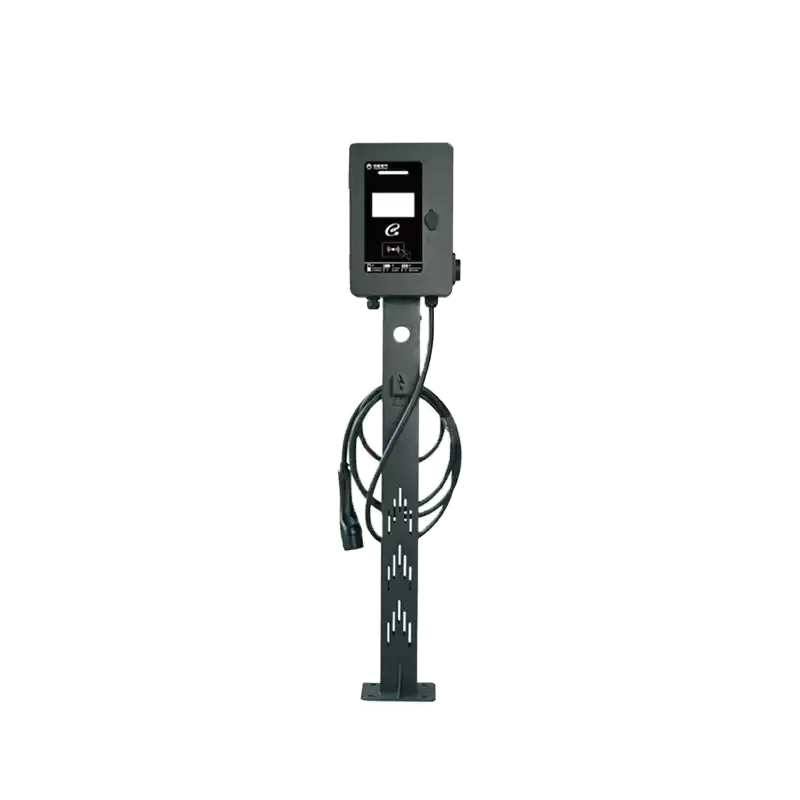

AC Electric Vehicles Charging Station Series

The AC charging station series is tailored for modern electric vehicles, providing versatile and reliable charging options for residential, commercial, and public environments. It supports single-gun and dual-gun configurations with power levels of 7kW, 11kW, and 14kW, ensuring efficient energy delivery. Designed for durability and adaptability, this series meets the growing demand for EV charging infrastructure, enhancing user convenience and promoting eco-friendly transportation.

Facebook Twitter Pinterest LinkedIn 分享

Description

AC EV Charging Station Series Features

Versatile Connectivity
Supports 4G, Ethernet, or Wi-Fi connections.
User-Friendly Display
Equipped with a 4.3-inch screen to show charging data, along with high-brightness LED indicators for charging and connectivity status.
Flexible Payments
Supports QR code and card payments.
Integrated Management
Features a dedicated operation and maintenance backend.
Comprehensive Safety Protections
Includes ground fault, overcurrent, undervoltage, leakage, emergency stop, and relay sticking protections.

Specifications

	7kW Single Gun AC Charger	11kW Single Gun AC Charger	14kW Dual Gun AC Charger
Rated Input Voltage	220Vac ± 15%	220Vac ± 15%	220Vac ± 15%
Rated Input Current	32A	50A	64A
Rated Output Current	32A	50A	32A * 2
Rated Power	7kW	11kW	7kW * 2
Operating Temperature	-25°C to 55°C	-25°C to 55°C	-25°C to 55°C
Standby Power	≤ 10W	≤ 10W	≤ 10W
Dimensions	32.6 * 22 * 9.7 cm	32.6 * 22 * 9.7 cm	32.6 * 22 * 9.7 cm
Weight	≤ 5kg (incl. cable)	≤ 6kg (incl. cable)	≤ 8kg (incl. cables)
Cable Length	Standard 5m	Standard 5m	Standard 5m * 2
IP Rating	IP54
Shell Material	PC540 (Heat & Impact Resistant, Halogen-Free Flame Retardant)
Installation Method	Wall-mounted / Pole-mounted
