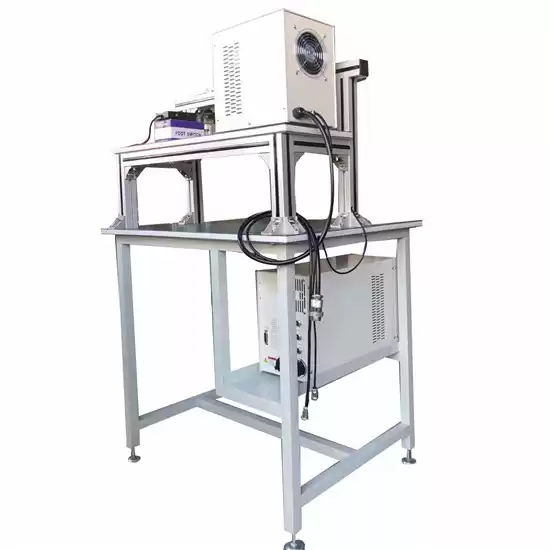

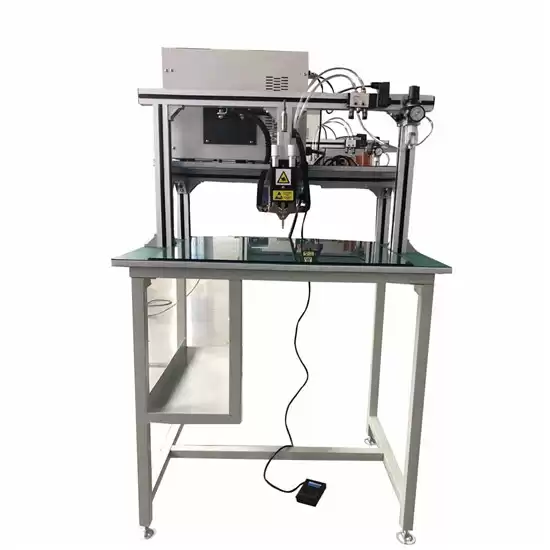

AC Pneumatic Manual Battery Pack Welding Machine
FEATURE
This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.
It equipped with advanced 220V AC welding power supply, Suitable battery for pack spot welding and assembly in the factory.
This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile ...
SPECIFICATION
|
Welder Power Suppler
|
220V AC welder
|
|
Power Supply
|
220AC/50Hz
|
|
Welding battery
|
18650, 26650, 21700...
|
|
Strip Material
|
Nickel, Nickel-plated steel
|
|
Welding Thickness
|
0.03~0.2mm
|
|
Maximum power output of transformer
|
15 KVA
|
|
Output Maximum Short Circuit Current
|
3000A
|
|
Open circuit voltage
|
6.5V
|
|
Control mode
|
Constant Current Control
|
|
Cooling mode
|
Forced air cooling
|
|
Total weight
|
24kg
|
