AC Pulse Battery Spot Welding Machine
for Mobile Phone Ni Welding
Product Specification
1 TOB-HT-328 spot welding machine is the most popular AC pulse Spot Welder driven Pedal. It is designed for the production of the world’s high-class battery manufacturer (NiMH. NiCd, Li-Ion/LiMnNi. LifePO4) with reliable performance.
2 This spot welding machine is mainly used for mobile phone battery PCB Ni and Ni welding process
|
Model
|
AC Pulse Spot Welder TOB-HT-328
|
|
Source voltage
|
110V-240V with transformer, Single Phase 50/60Hz
|
|
Power
|
8-25KVA
|
|
Welding ability
|
0.05-0.1mm Ni tab
|
|
Warranty
|
One year limited and lifetime support
|
|
Working theory
|
Pedal type AC pulse two spot welder
|
|
Scope of application
|
18650, 26650, 32650 cylindrical battery,
NI-MH battery(nickel-metal hydride battery),
Nickel cadmium battery and EV Lithium battery pack Ni tab welding,
Mobile phone pcb welding
|
|
Welding stroke
|
20mm
|
|
Operating
|
Foot switch
|
|
Weight
|
45kg
|
|
Dimension (L*W*H)
|
Foot switch model with desk : 800*580*1100mm
|

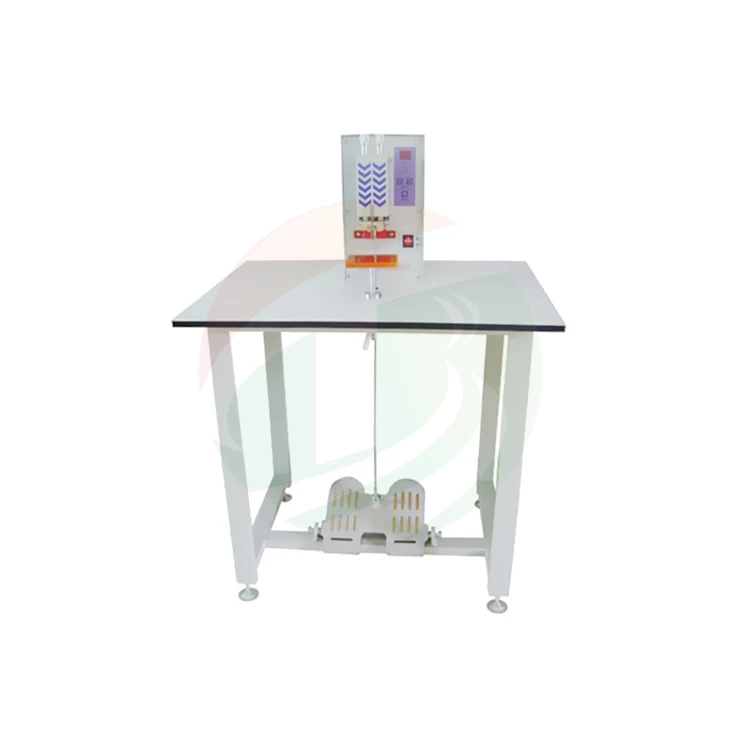

Product Image
Product Packing
