AC surge protection device for charging pile and charging station
AC power surge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 485V and 750V.
Standard compliance: IEC61643-11, EN61643-11
IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods
Features:
* Reliable thermal tripping protection
* Status indicator: Green(normal) Red（Defect）
* Fast response: action within nanosecond
* Optional remote signaling
* Pluggable design, easy to mount
* Latest reflow soldering process, ensure product consistency
|
Model
|

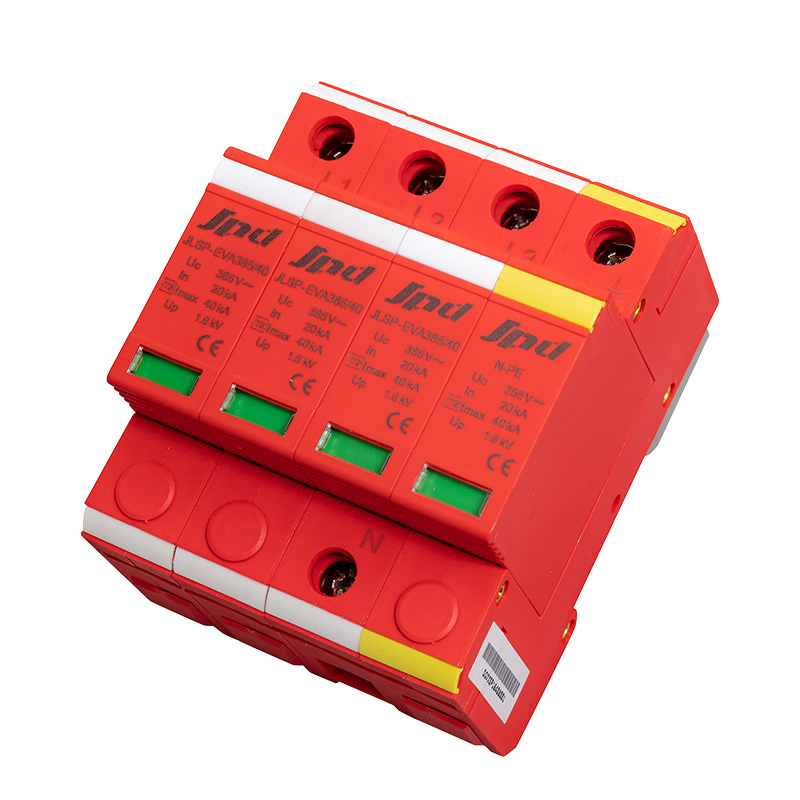

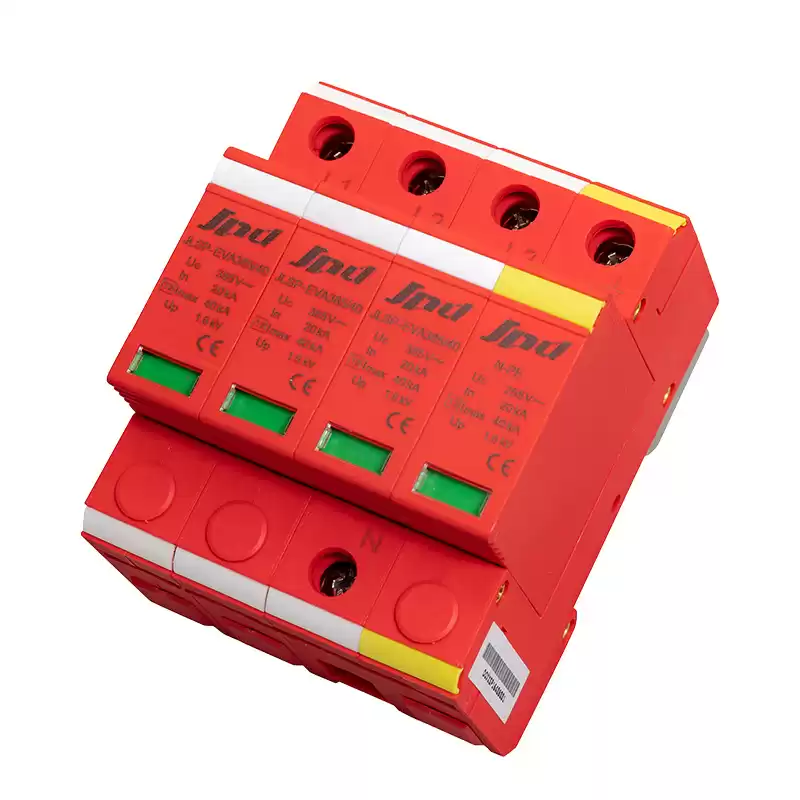

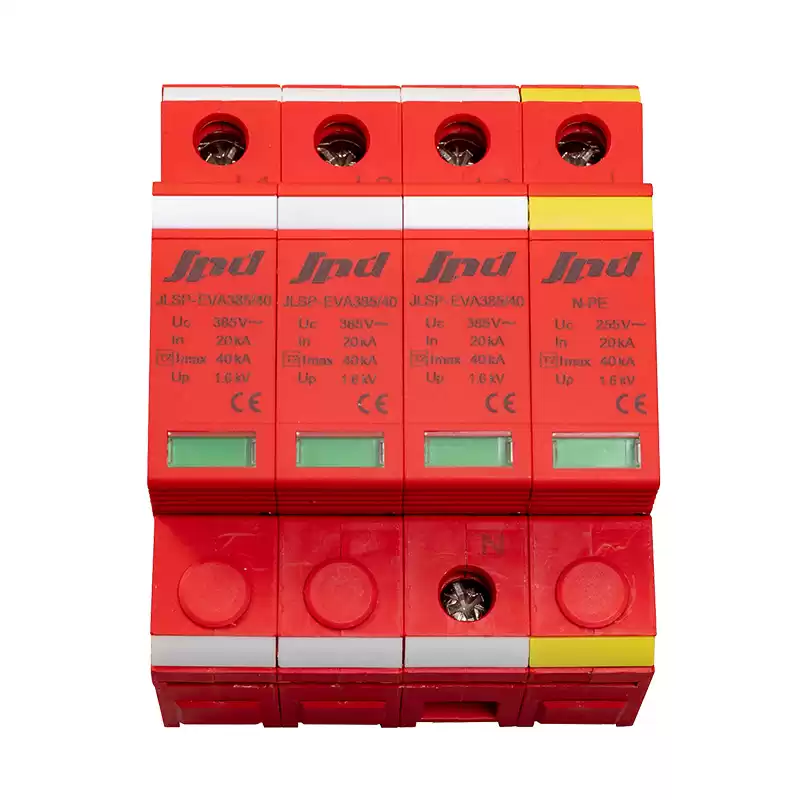

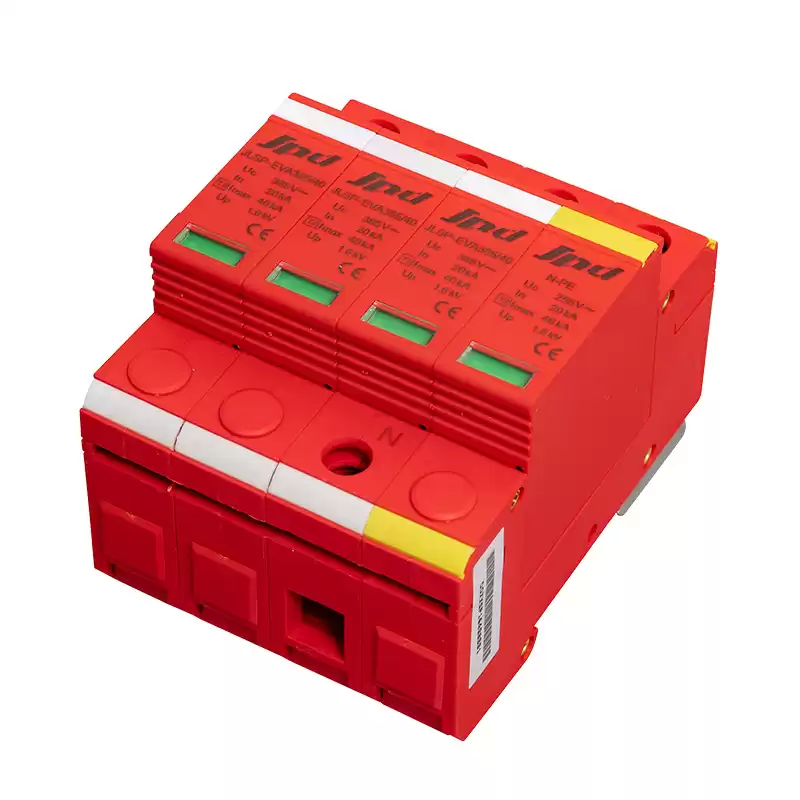

JLSP-EVA385/40/3P+N
|
|
Descrpition
|
Type 2 AC surge protector-4poles
|
|
Max. AC operating voltage (L-N, L-PE)
|
385V
|
|
Max. AC operating voltage (N-PE)
|
255/385V
|
|
Nominal discharge current In(kA)
|
20kA
|
|
Max. Discharge current Imax (kA)
|
40kA
|
|
Protection level Up (kV)
|
≦1.6kV
|
|
Dimensions
|
36*90*62MM
|
|
Protection rating
|
IP 20
|
|
Response time tA (ns)
|
≦25
|
|
Oeprating temperature
|
-40/+85℃
|
|
Mounting
|
DIN Rail 35mm
|
|
Housing material
|
Thermoplastic UL94-V0
|
|
Standards compliance
|
IEC64643-11, GB/T18802.11
|
