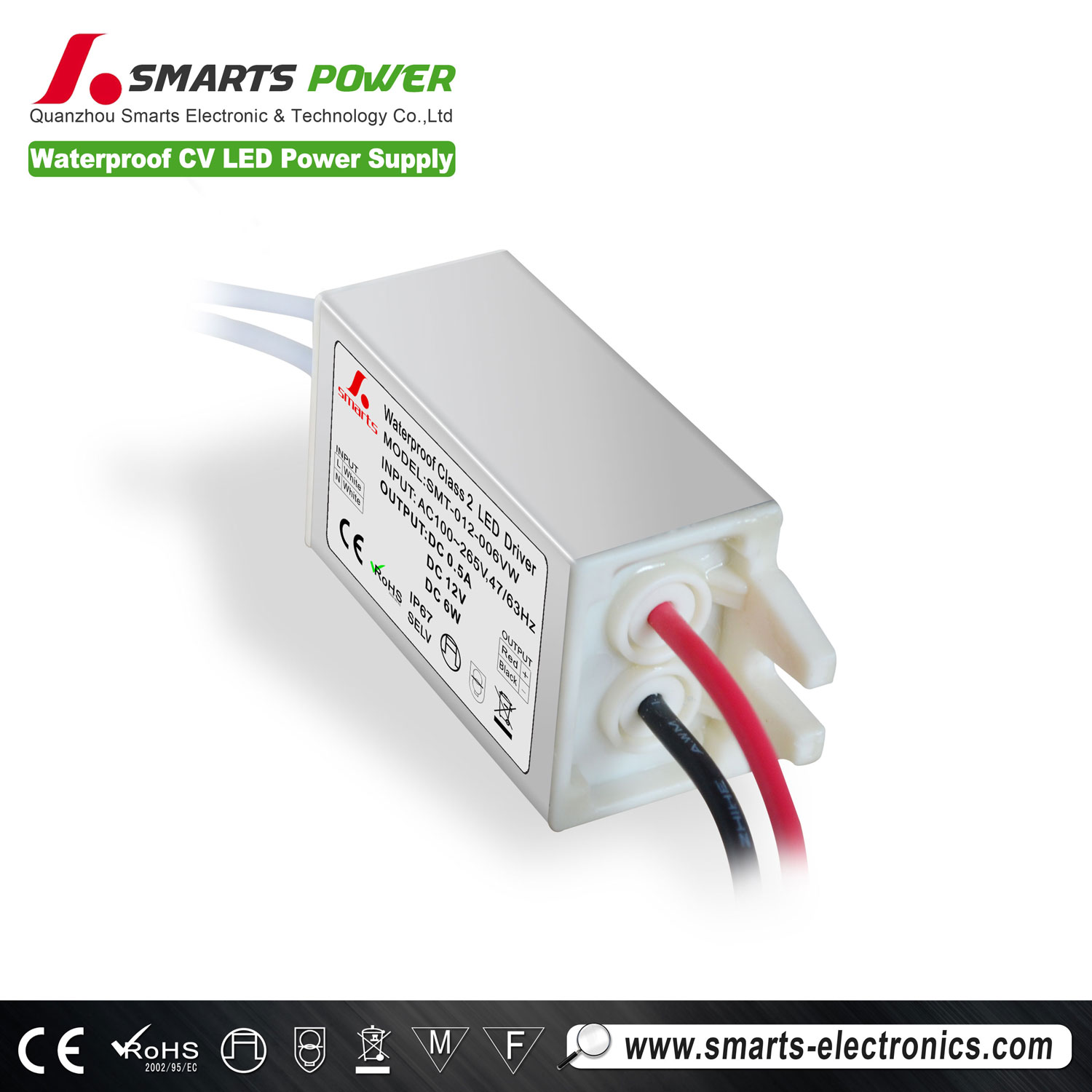

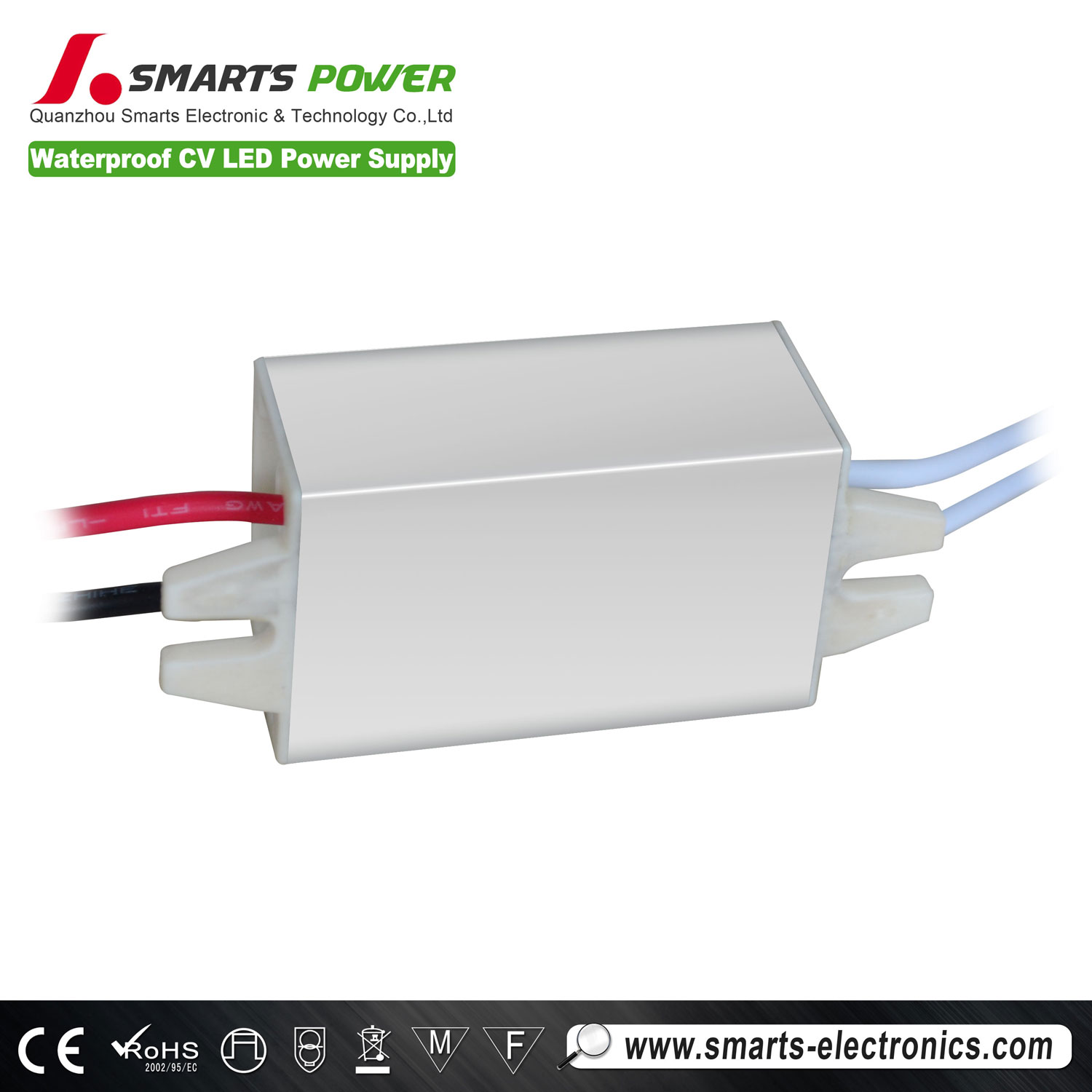

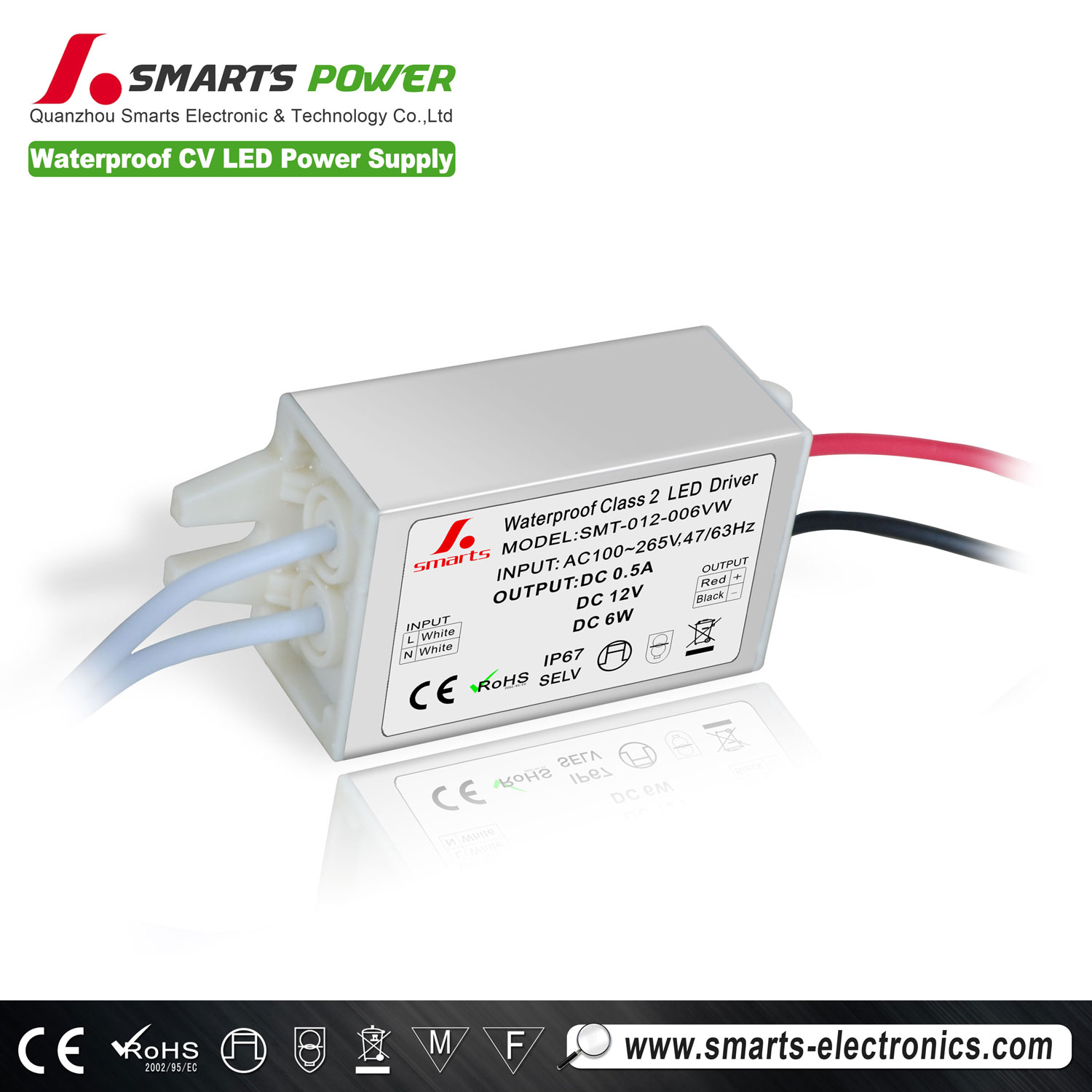

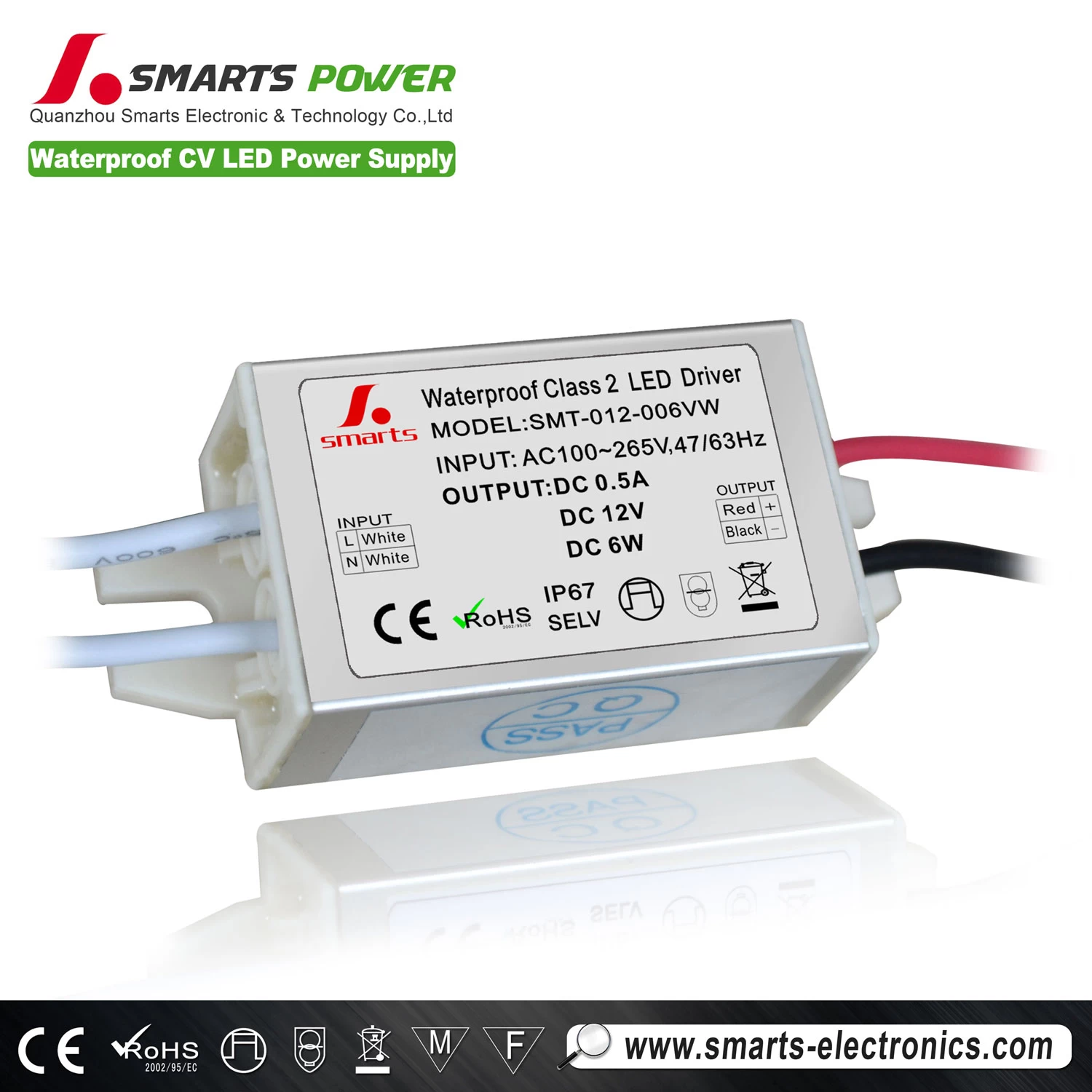

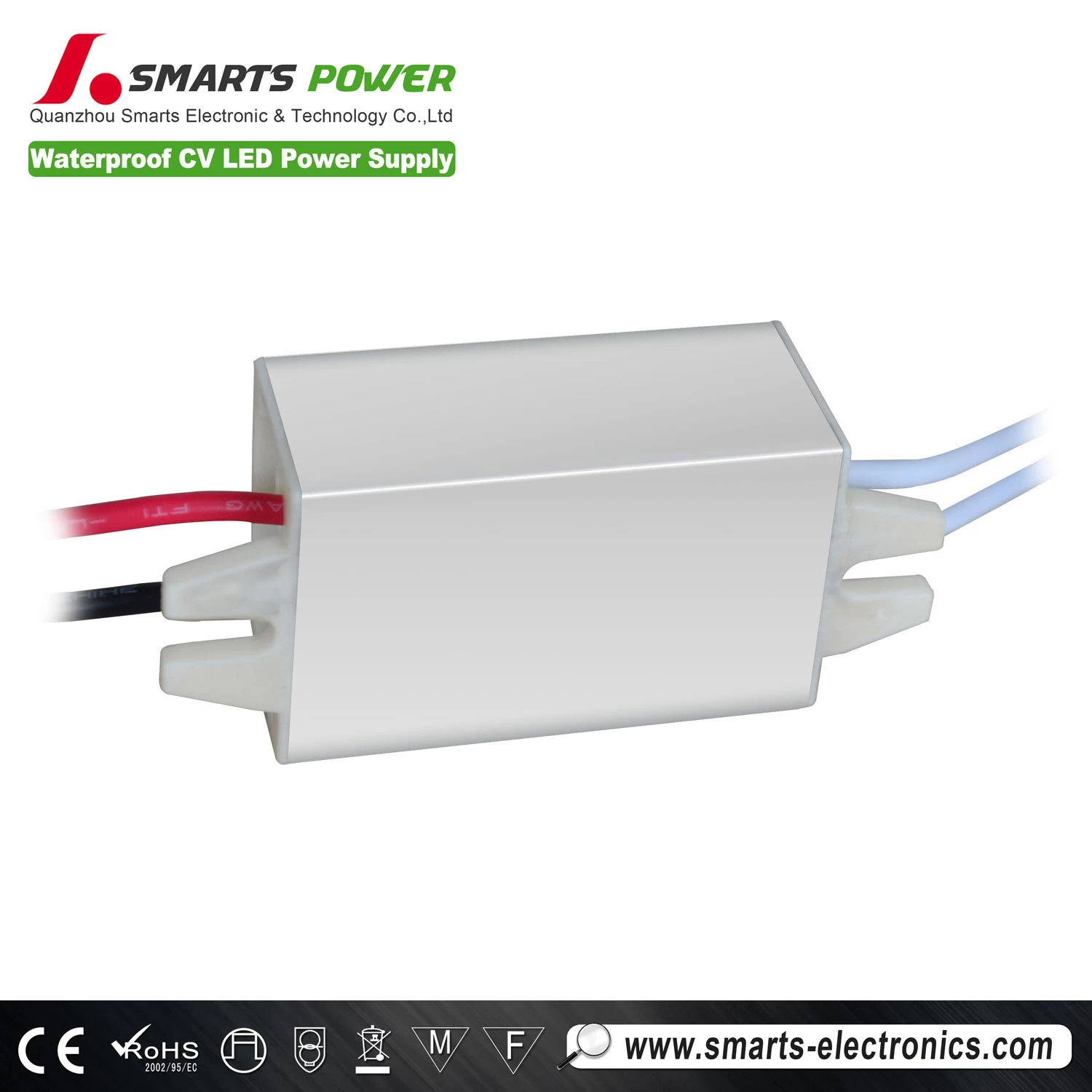

Product Name:AC to DC 12V 6W Constant voltage LED driver SMT-012-006VW
Specifications:
1. Modle:
SMT-012-006VW
2. Input:100~265vAC
/ 47-63HZ
3. Output :12V 0.50Amp 6Watt
4. Case
material: plastic / Aluminum
5. Waterproof
rate: IP20/IP67
6. Unit
weight: 29g
7. Product
size: 51*27*23 mm(IP20)/62*29*20(IP67)
8. Box
size:299*224*176mm
9. Pack qty:
200pcs/ctn
10. Pack
weight: 6kg/ctn
11. Produt
cord:connecting terminal(IP20) / 18AWG*20CM
13. 2 years
warranty (We promise to
replace new ones to you if there is any defective happen during the warranty
period)
Features:
1. High
efficiency,save energy ,protected environment.
2. High
stability and low ripple, increase light efficiency and decrease light
attenuation.
3. Meet to
safety standard and EMC
4. Assure LED
stability long lift and light efficiency by constant voltage.
5. Integrity
protection,over loading, over voltage ,over current.
6. Protections:Short
circuit/Overload/Over temperature
7. Cooling by
free air convection
8. 100% full
load burn-in test.
9. Suitable
for LED lighting
Environment:
1. Working
temp: -30~+50℃ (Refer to output load derating curve)
2. Working
humidity: 20~99% RH non-condensing(Waterproof)
3. Storage
temp. humidity: -40~+80℃,10~99%RH
Safety:
· Safety
Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
· Withstand
Voltage : I/P-O/P: 3000KVAC
· Isolation
Resistance : I/P-O/P:100M Ohms/500VDC
Applications:
Our products are widely used in various industries, such as
· indoor LED illuminating lights,
· LED Neon,
· LED urban Decoration
· LED Lighting Advertising,
· LED Display,
· Safety Protection Apparatus,
· Telecommunications,
· Networks,
· Vehicle Lights, Controller Panels, etc.
