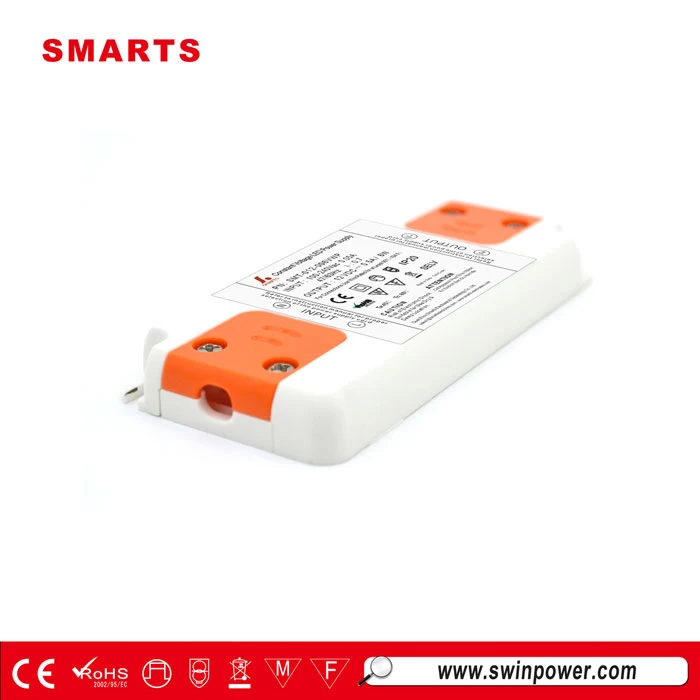

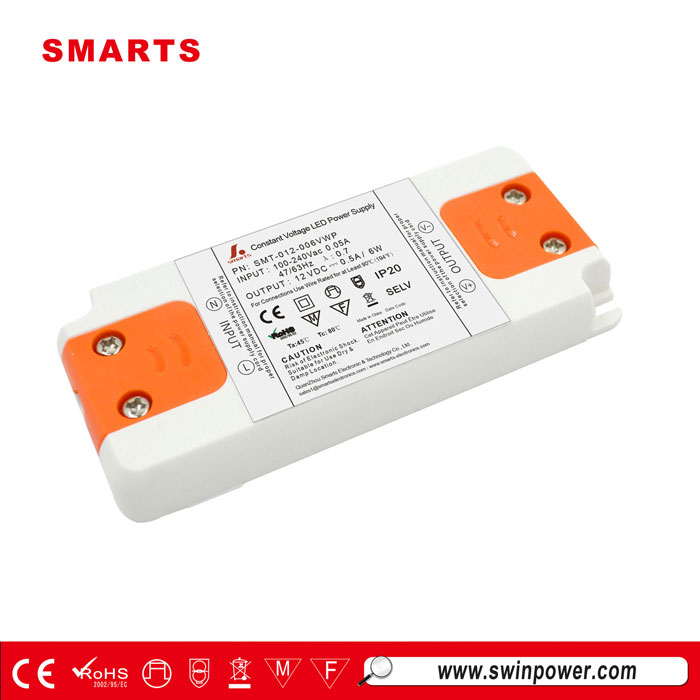

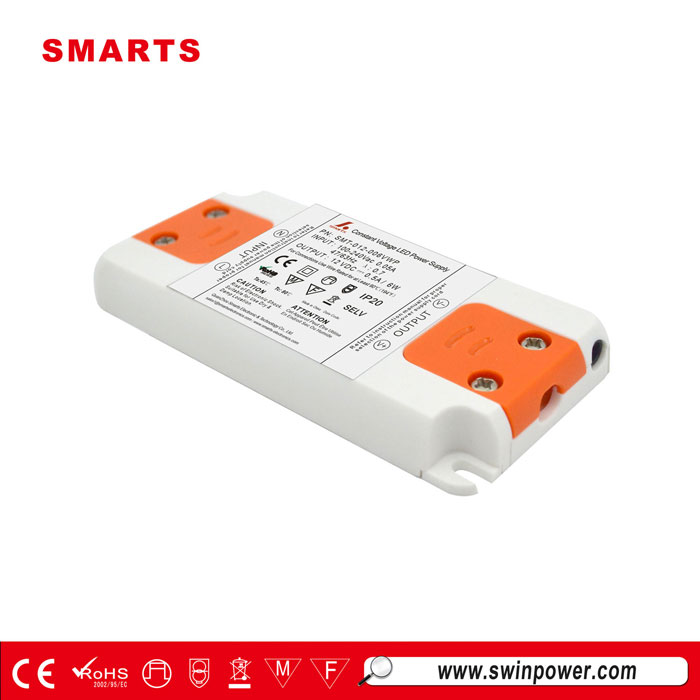

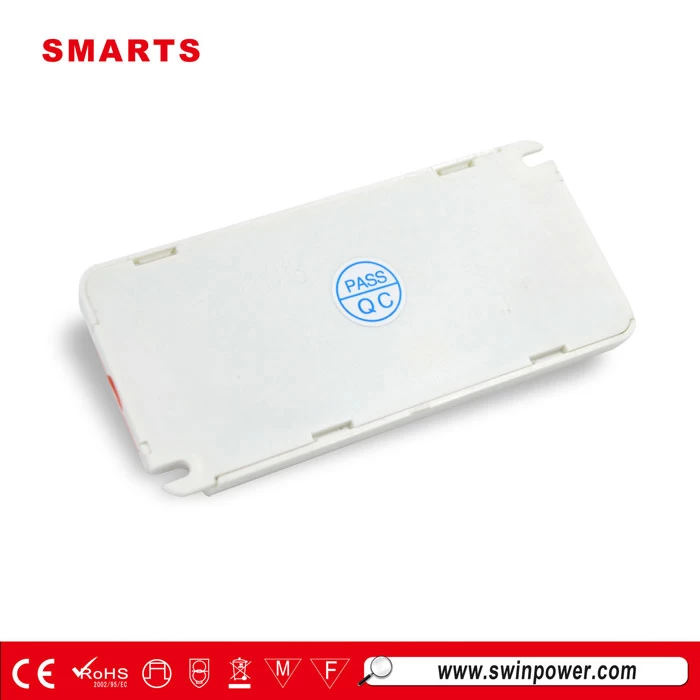

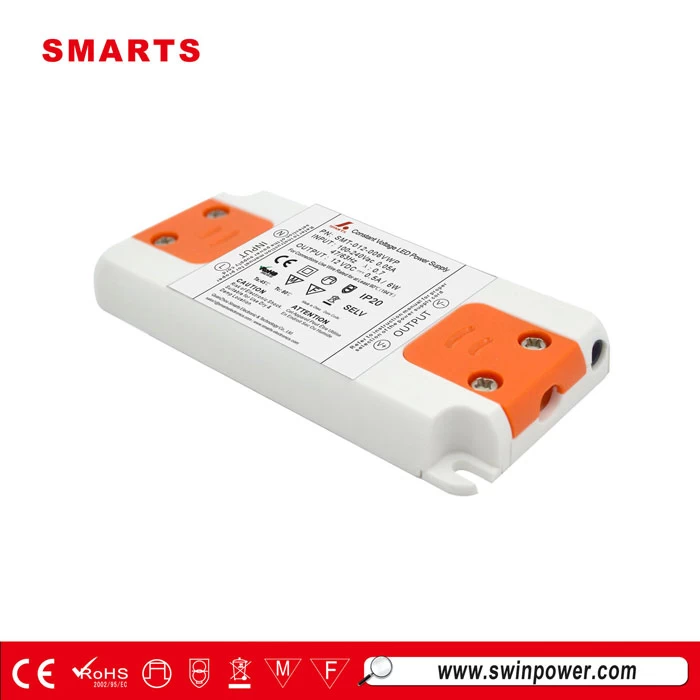

ac to dc plastic 12v 6w regulated power supply

SMT-012-006VWP has surge, short circuit and overload protection. This mini led driver is CE (LVD + EMC) certifications for dry or damp locations.


  • Size98.5×45.8×11.9mm
  • Working Modeconstant voltage
  • Output Voltage12vdc
  • Dimming modenon-dimmable
  • Output Current0.5amp
  • Input Voltage100-240V
  • Certificationce

ac to dc plastic 12v 6w regulated power supply

This led power supply 220v is capable of powering up to 6 watts of indoor LED lighting that requires 12 volts of constant voltage. It features overload and over heat protection, as well as short circuit protection with auto-restart.


  Feture
  Label for 6w led driver
● IP44 design for indoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through CE Certification
● 2 years warranty

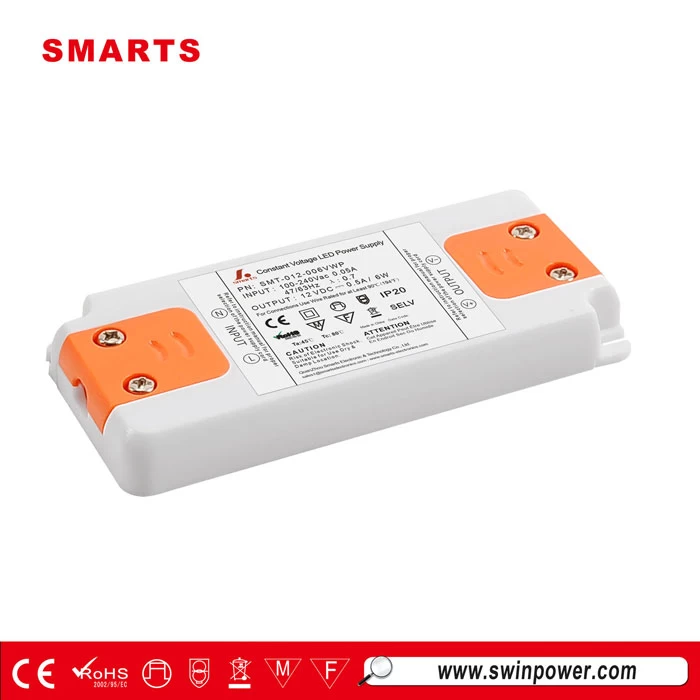

mini led power supply


  Specification


MODEL SMT-012-006VWP SMT-024-006VWP
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 0.5Amp 0.25Amp
VOLTAGE RANGE 0-0.5A 0-0.25A
RATED POWER 6Watt 6Watt
RIPPLE&NOISE(max) 300mV 300mV
VOLTAGE TOLERANCE ±5% ±5%
LINE REGULATION ±1% ±1%
LOAD REGULATION ±2% ±2%
INPUT VOLTAGE RANGE 100-240VAC 100-240VAC
FREQUENCY RANGE 47-63Hz 47-63Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) ﹥83% ﹥83%
AC CURRENT(Typ.) 0.0.9A/110VAC, 0.06A/220VAC 0.0.9A/110VAC, 0.06A/220VAC
PROTECTION SHORT CIRCUIT Protection type:recovers automatically after condition is removed
OVER CURRENT overload protected@145-160% above peak rating
OVER LOAD 1.0A
0.6A
0.6A
ENVIRONMENT WORKING TEMP. -10~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS EN61347-1;EN61347-2-13; CE /ROHS approval
WITHSTAND VOLTAGE I/P-O/P:2KVAC  I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards EN55015;EN61000-3-2;EN61000-3-3;
EN61547;EN61000-4-2,3,4,5,6,8,11;
NOTE 1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.







  Question


1. What are the details of the 7 year warranty: Is it based on 7 years of actual use? We understand that some driver manufacturers have technology to keep track of hours of use. Or does the warranty start at point of sale and end 7 years after? Please explain details.


  Answer

The 7 years warranty start at the point of LED Driver leave our factory. There have manufacture date in back of every LED driver.

We use the best quality components for our 277vac dimmable series and the capacitances we used have the super life-span. We can promise 7 years warranty if loading 80% and within 12 hours working time per days.


  FAQ


Q1.             What's type power supply do you have?

Answer:      We specialized in constant voltage & current LED drivers,

                   0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters



Q2.             What's shipping mode can we choose?

Answer:      1.FedEx/DHL/UPS/TNT/Express for samples;

                   2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

                   3. Customers specifying freight forwarders or negotiable shipping method



Q3.             What's the MOQ?

Answer:      Our MOQ is 500pcs, but we accept your trail order/small order, no problem.



Q4.             What can you do if the product is broken?

Answer:      We promise to replace new ones to you if there is any defective happen

                   during the warranty period, but we need pictures or video to prove the defective

                   comes from our quality problem



Q5.             How about the protection of product?

Answer:      Most of our products have protection of short-circuit. overload,

                   over voltage, over current and reserve polarity. About the specific product,

                   please consult our salesstuff.
