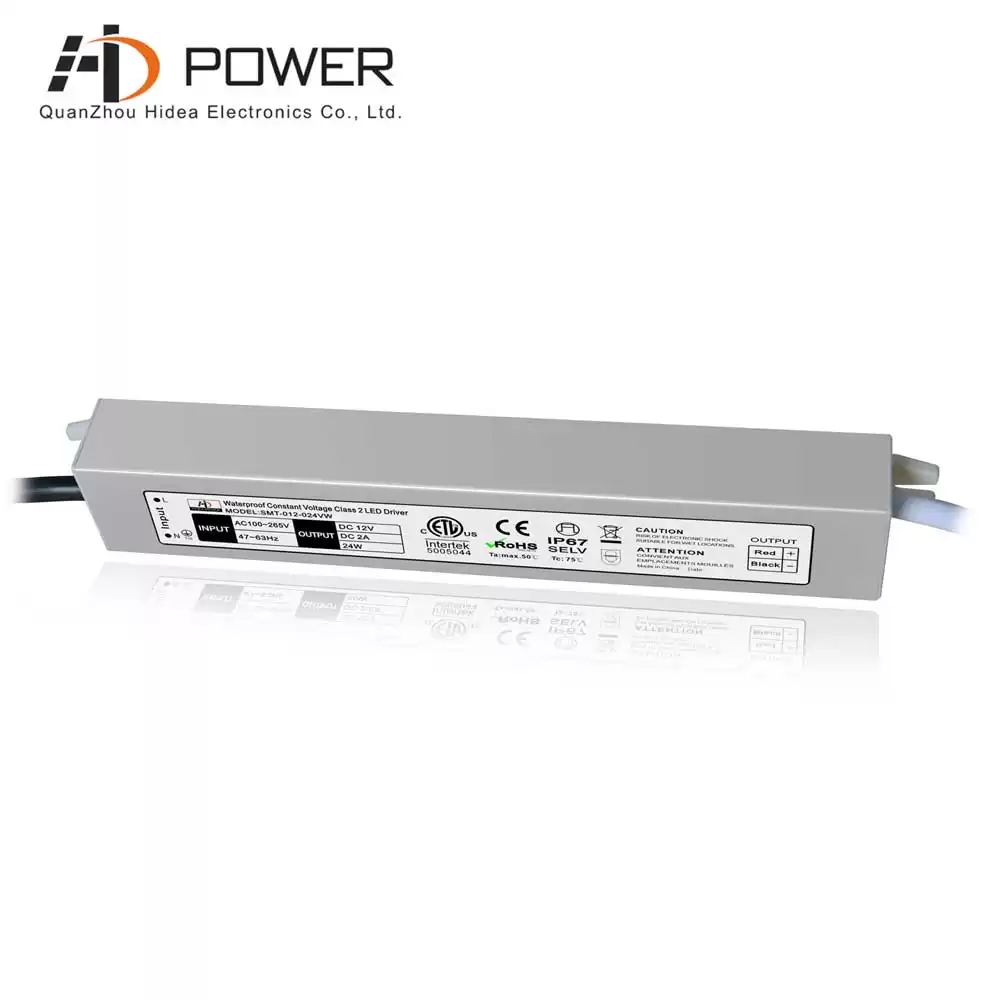

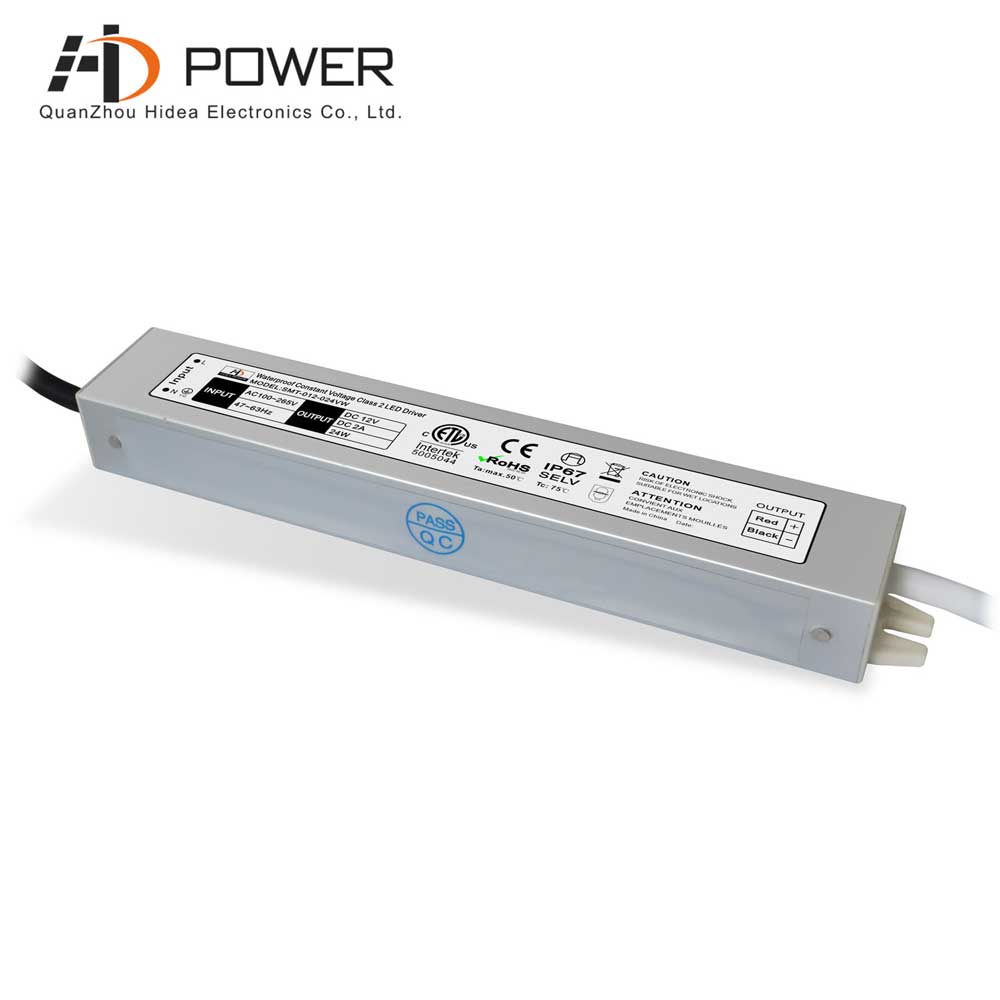

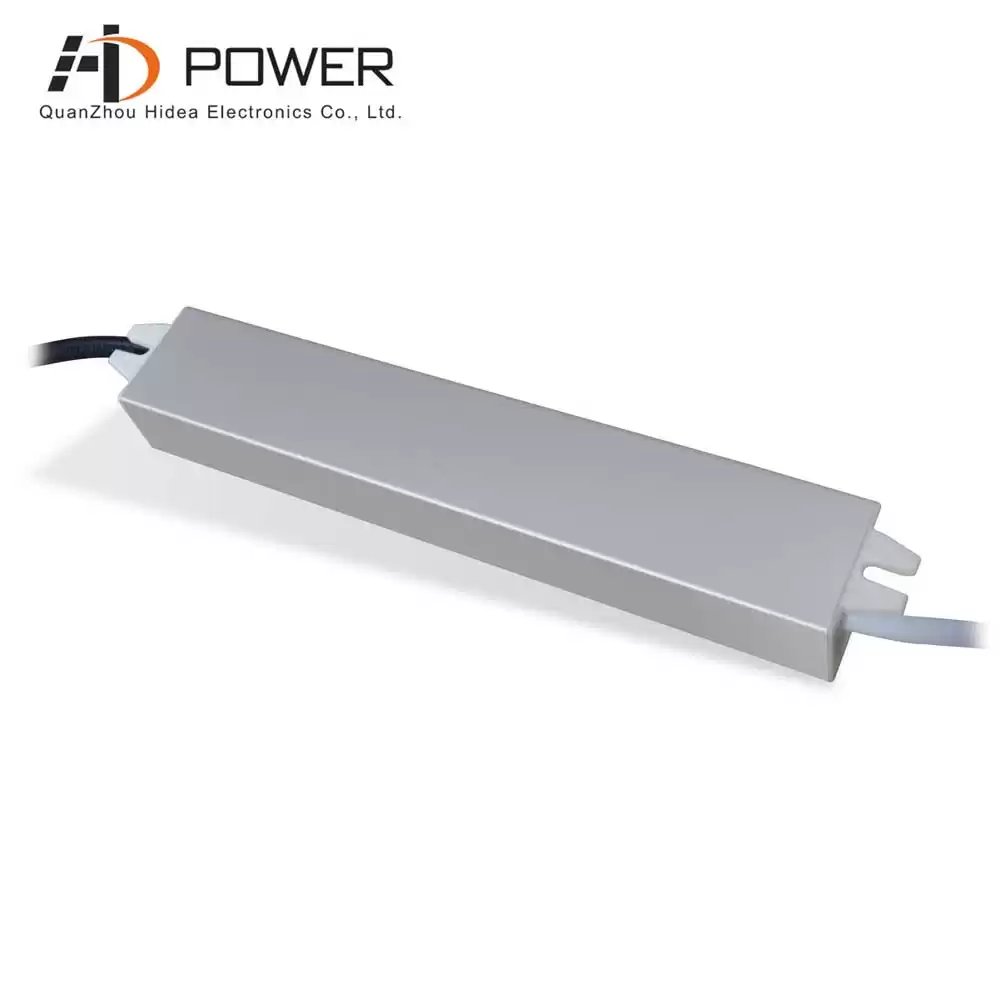

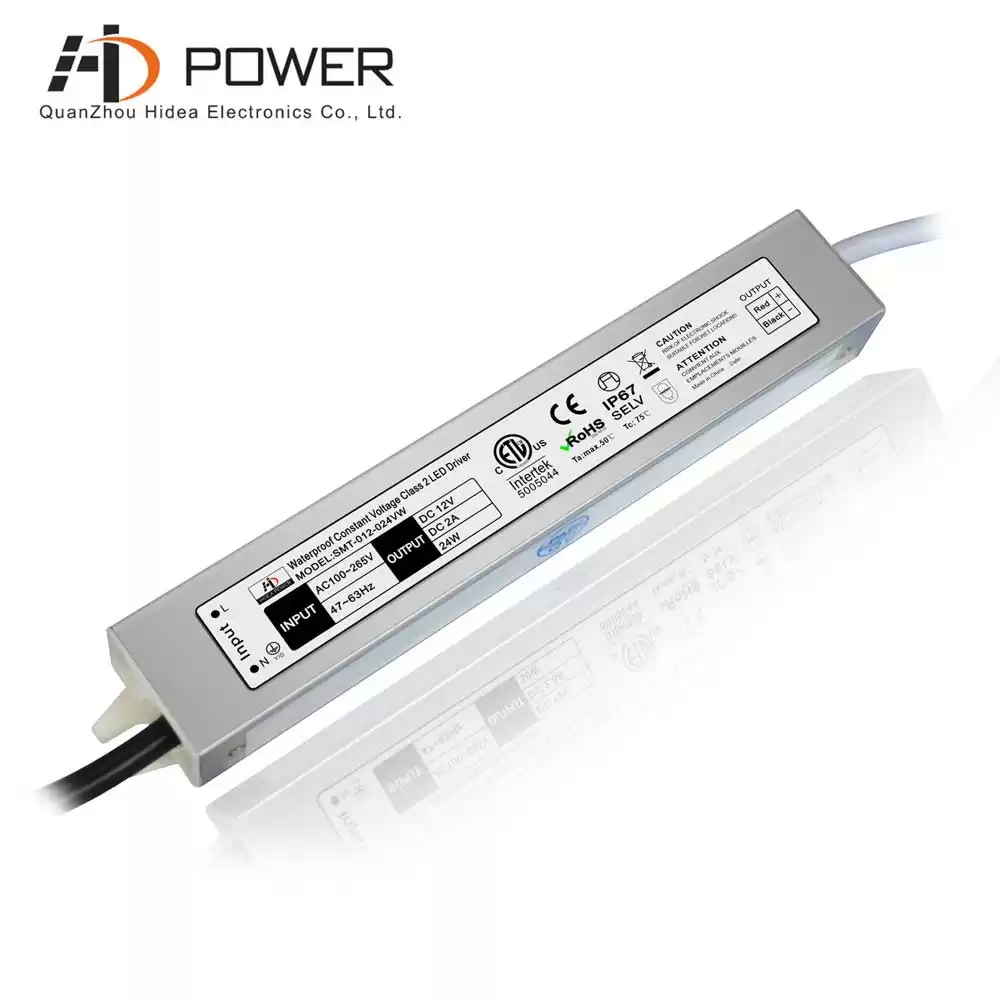

HIDEA produce SMT-012-024VW This is a IP67 rated non dimmable 24w led power supply Its Power 24 Watt, Input Voltage 100-265V,Output Voltage 12V DC 2000mA, Class 2 Power Supply, great ideal low voltage devices such as LOREX security cameras audio.
Specification
|
MODEL
|
SMT-012-024WW
|
SMT-024-024VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
2.0Amp
|
1.0Amp
|
|
CURRENT RANGE
|
|
|
|
RATED POWER
|
24W
|
24W
|
|
RIPPLE&NOISE(max)
|
150mV
|
150mV
|
|
CURRENT TOLERANCE
|
±0.5V
|
±0.5V
|
|
SETUP RISE TIME
|
80ms/110,220VAC
|
81ms/110,220VAC
|
|
HOLD UP TIME(Typ.)
|
60ms/220VAC
|
60ms/220VAC
|
|
INPUT
|
VOLTAGE RANGE
|
100~265VAC
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
>83%
|
>83%
|
|
AC CURRENT(Typ.)
|
3.5A/110,220VAC
|
2.0A/110,220VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/110~220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
UL/ROHS/CE Mark(EMC,LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Low Voltage Device Type
This ETL listed Class2 IP67 12v 24w 2a power supply is great ideal for led strip lights and other low voltage devices such as security cameras audio, video gear cabinets light, Mr16, Mr11, G4 bulb and more. It can match well with brand ZOSITECH security cameras audio.
Related Products
|

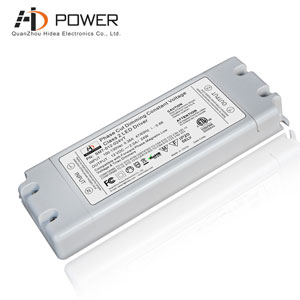

 This is ETL listed 12v triac dimmable 24w led power supply can match well with MLV dimmer.
Mode：SMT-012-024VT
Dimming Mode : Triac Dimming
Output Power : 24W
input voltage：200~240V AC
Size：155*54*20MM （L*W*H）
|
