Compact design with high power density
Built on our all-compatible drive architecture, these liquid-cooled inverter modules are designed to fulfil all your requirements for motor control and for cabinet building. The inverters are designed to be used in common DC bus systems, multidrives, to control several motors, but can also be used in a single drive configuration together with a dedicated supply unit.

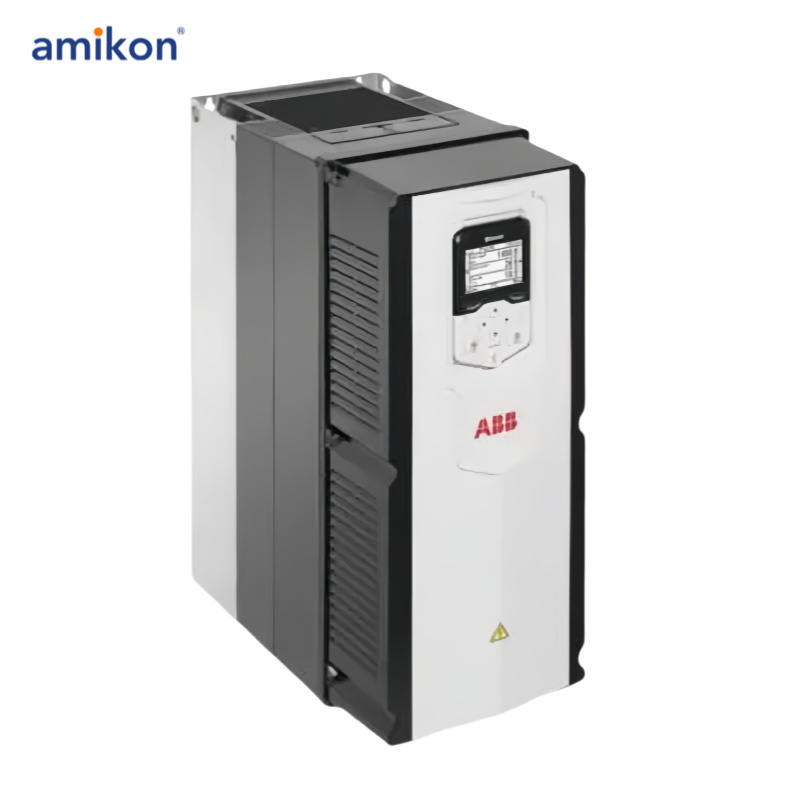

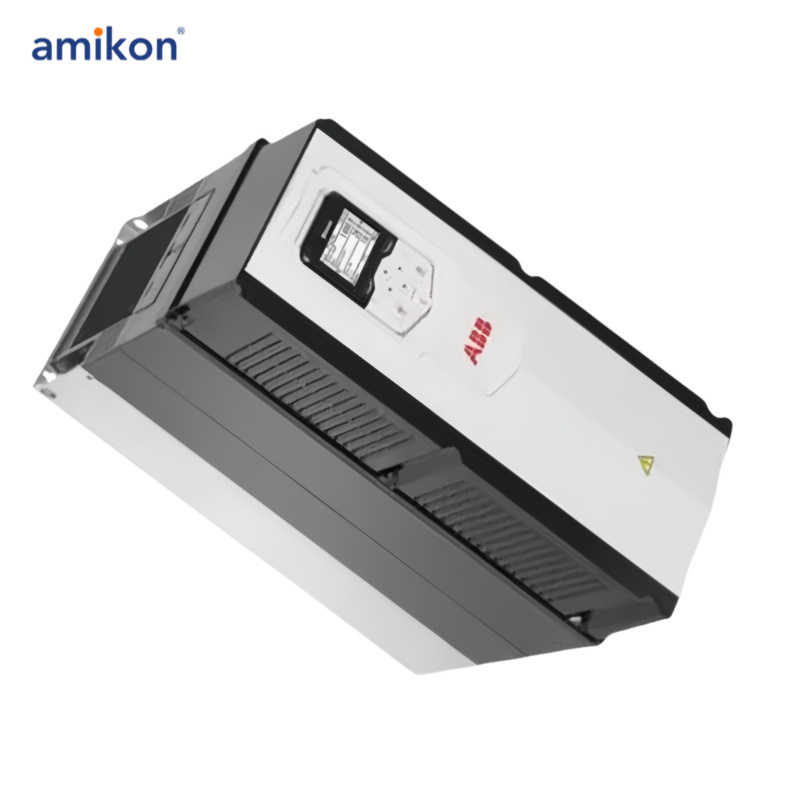

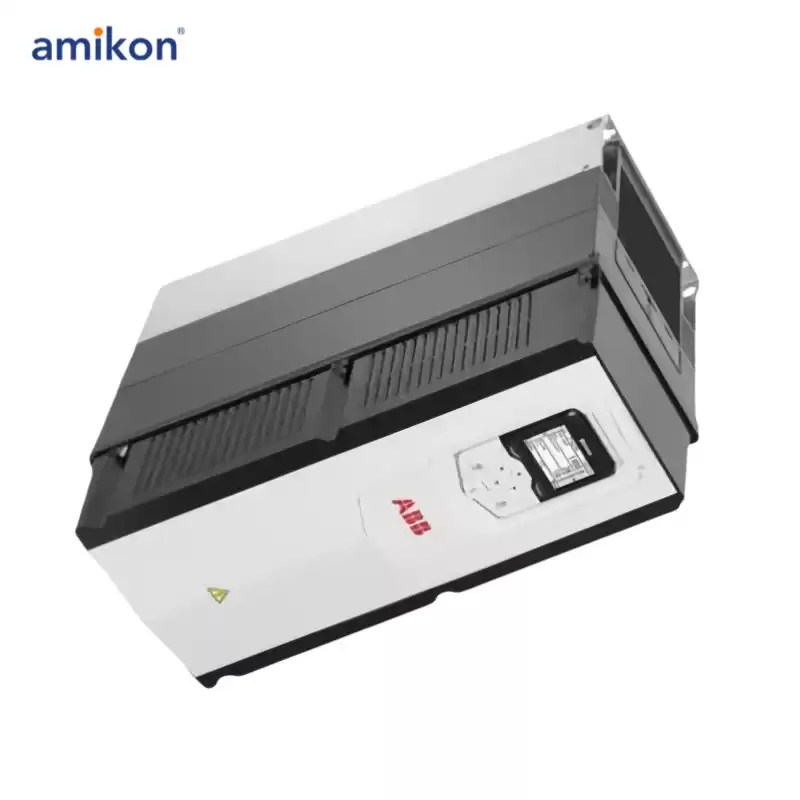

The ACS880-104LC-0860A-7 modules come in two frame sizes: R7i and R8i. The modules are DC supplied and have several built-in options. The electrical connection to the common DC bus is fuse protected. An optional DC-switch can be selected to disconnect an individual inverter unit from the DC bus. The AC output for the motor cabling is equipped with a quick connector, which enables easy installation and removal of the module from the cabinet. The R7i module has additionally quick connectors for the DC supply connection. Each inverter module comes with safe torque off (STO) as standard.
The design is extremely compact which enables optimized drive cabinet installations. One drive module can deliver motor current up to 850 A. The inverter modules are 3-phase modules and can be parallel connected for higher powers as they come with inbuilt du/dt output filters as standard. The modules are light, only 37-41 kg (R7i) or 59-63 kg (R8i), meaning that the cabinet mechanical design and construction is less demanding.
The R7i modules come with an installation frame, which is fully generic and can be easily mounted into any kind of cabinet/enclosure/rack. The R7i can be mounted in vertical or horizontal position and the modules can be freely stacked on top of each other, which enables to build compact solutions for applications where e.g. the height of the enclosure is restricted. The R8i module with unique power density provides a perfect solution and optimized footprint for standard cabinets/panels with standard height.
The ACS880-104LC-0860A-7 industrial drive modules are specifically designed for machine builders and systems integrators. You can build flexibility, simplicity into your own cabinet. Made as a bookshelf variants, they can easily be pushed inside the cabinet using a pedestal on wheels.
Clean supply network:
Total harmonic current distortion typically <3% in nominal situation and undistorted network
Flexible installation:
Flexible mounting and cabling directions enable adaptation to various cabinet enclosures
Reduced installation space:
The most compact design on the market with side-by-side mounting capability
Easy cabinet design and assembly:
A large variety of support materials, accessories and assistance available
