Active Dynamic Filter ADF

YTPQC-ADF based on 3-level topology, is an Active Dynamic Filter (ADF) system designed to eliminate harmonic oscillations and reduce costs consequently. ADF is a versatile solution, easily tailored to deliver power factor improvement, voltage variation control, flicker mitigation and load balancing functionality, and highly improved power quality in networks while reducing harmonic pollution.



YT-PQC-ADF Active Dynamic Filter

YTPQC-ADF Active Dynamic Filter is a perfect and comprehensive solution to the power quality issues of power grid , such as harmonics, reactive power and 3 phase load unbalance. YTPQC-ADF which is in parallel to power grid can detect the harmonic wave in power grid in time, generate the reverse-phase compensation current through the converter and dynamically filter the harmonic wave in power grid.

YTPQC Active Harmonic Filter basics

The operation of YTPQC-ADF is unaffected by multifarious load forms and power grid structures. And it will not produce harmonic oscillation (resonance) along with the system, thus perfectly realizing harmonic control under diverse loads. YTPQC Active Dynamic Filter can fully accomplish dynamic reactive compensation, control the capacitor switching and ultimately heighten the power factor of power grid. Meanwhile, YTPQC-ADF has the function of controlling the three-phase load current unbalance, thus comprehensively handling various power quality matters in power grid.



Modular Design

YTPQC Active Dynamic Filter has a advanced modular design. Usually YTPQC-AdF consists of one or several ADF modules and an optional touched LCD Human Machine Interface. Each ADF module is an independent harmonic filtering system, and users can change the harmonic filtering system rating by adding or removing ADF modules.

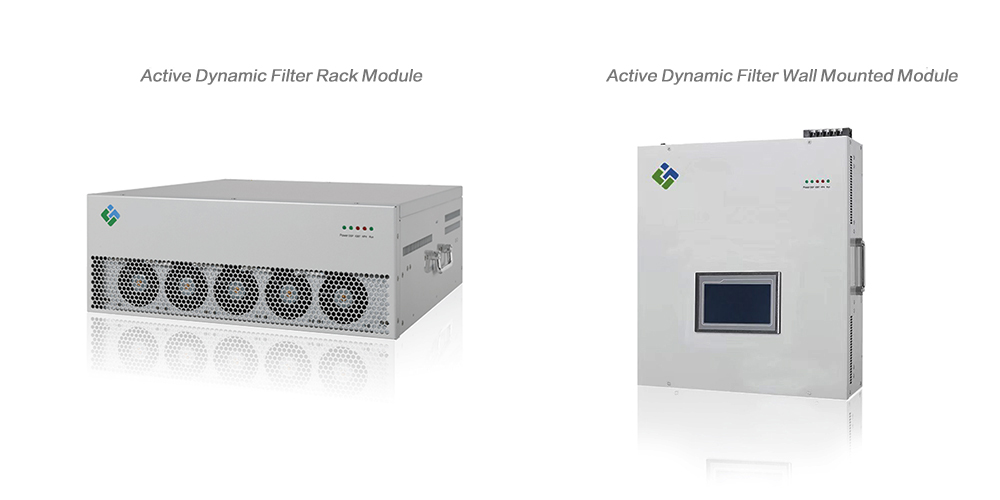

According to the mounting type, YTPQC-ADF can  be divided into Rack Modular ADF, Wall-mounted ADF and free landing ADF.


YTPQC-APF Active Dynamic Filter ADF

Model Description

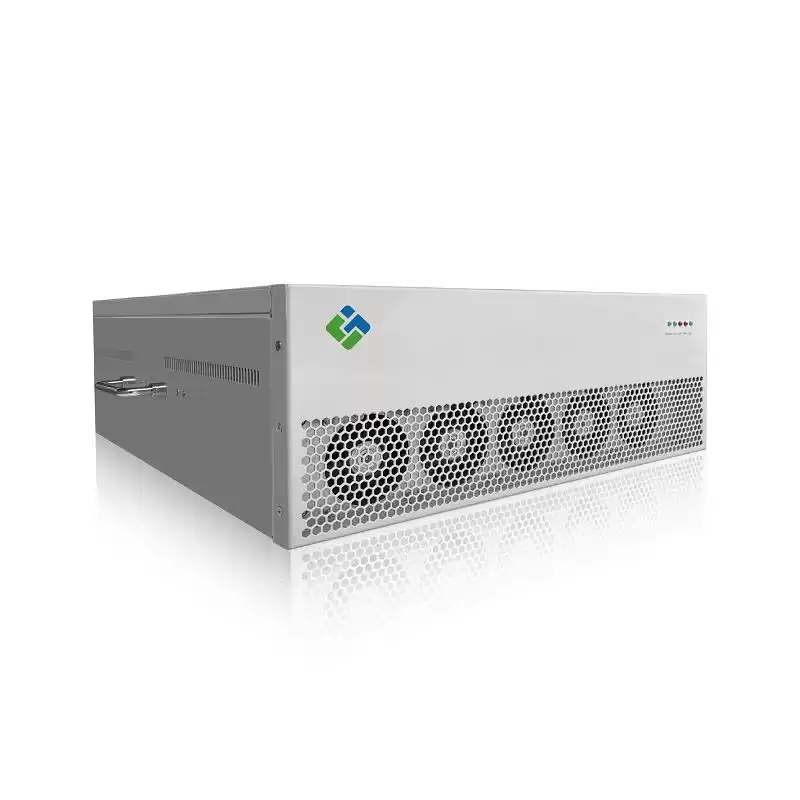

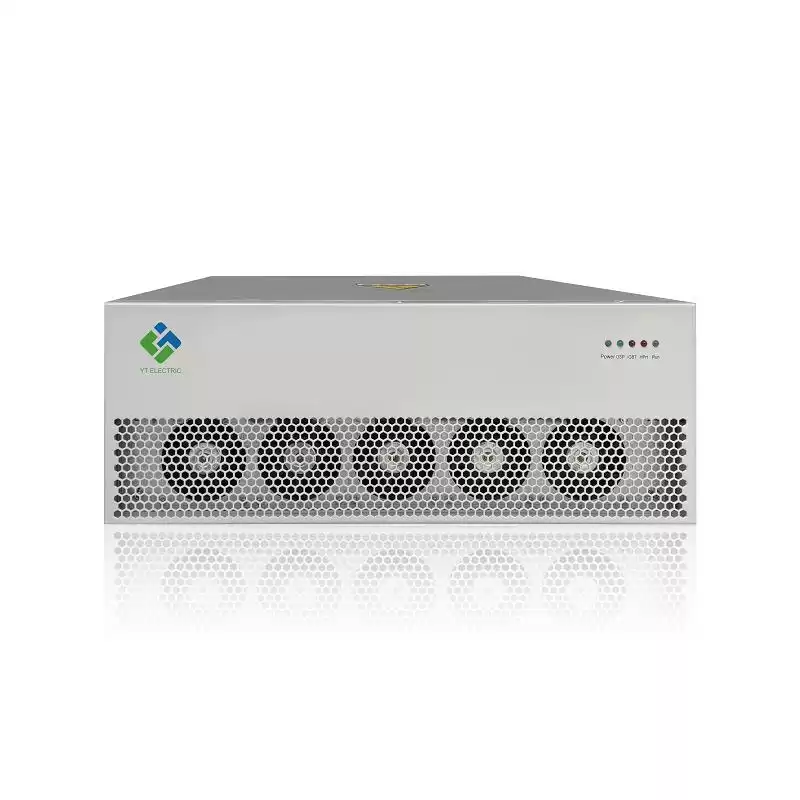

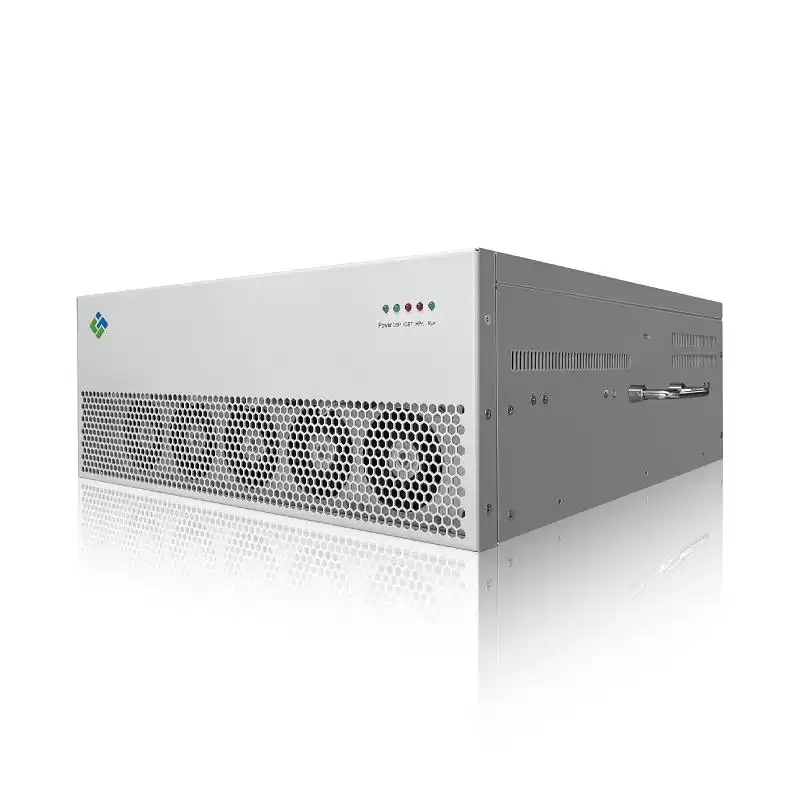

YTPQC-ADF Active Dynamic Filter Module series cover from 15A to 150A, support wall mounted type, rack type, free landing modules.



SN Item Rated Capacity Factory Model Dimensions
(W*D*H,MM)
N.G
(KG)

Packing Size

(W*D*H,MM)

G.W.
(KG)
1 ADF 15A YTPQC-ADF/15-4-4L-RW 360*402*125 20 740*690*445 25
2 ADF 25A YTPQC-ADF/25-4-4L-RW 360*402*125 20 740*690*445 25
3 ADF 50A YTPQC-ADF/50-4-4L-RW 505*550*190 34 740*690*445 40
4 ADF 75A YTPQC-ADF/75-4-4L-RW 505*550*190 35 740*690*445 40
5 ADF 100A YTPQC-ADF/100-4-4L-RW 505*570*280 53 740*690*445 63
6 ADF 125A YTPQC-ADF/125-4-4L-RW 505*570*280 54 740*690*445 64
7 ADF 150A YTPQC-ADF/150-4-4L-RW 505*570*280 55 740*690*445 65
