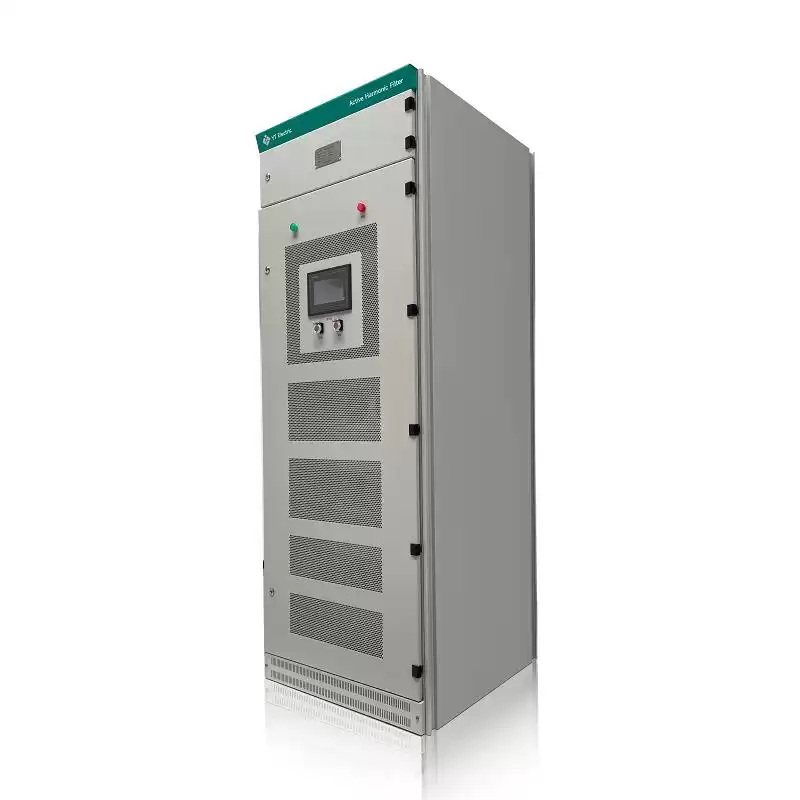

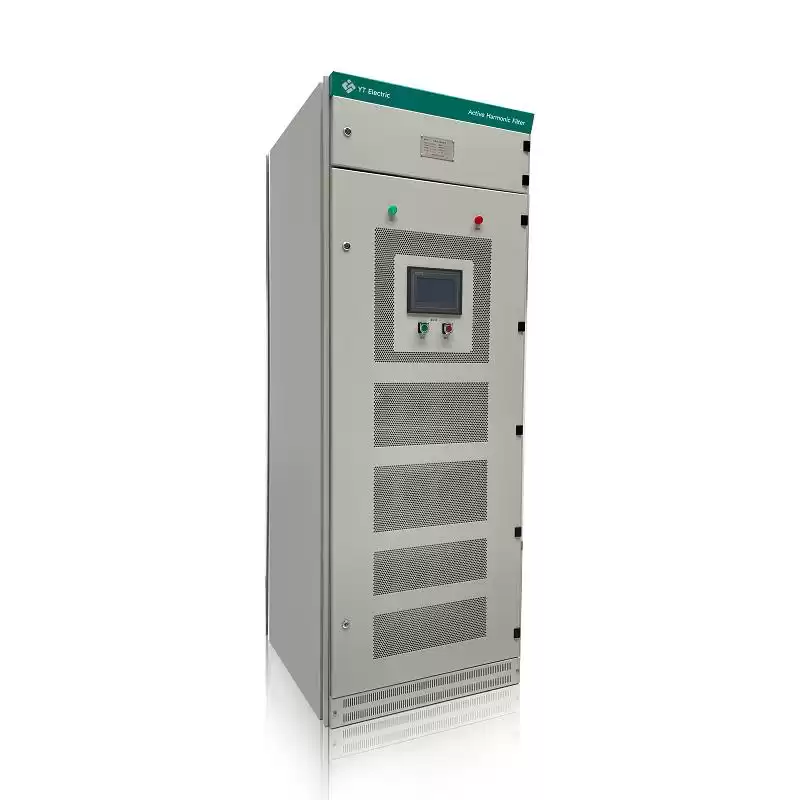

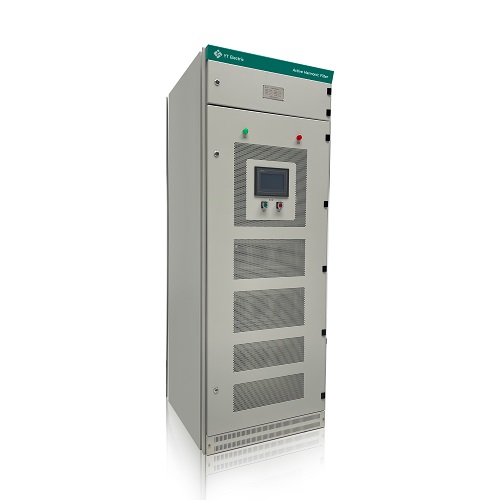

YT-PQC-AHF Active Harmonic Compensation Filter
YTPQC-AHF Active Harmonic Compensation Filter is a perfect and comprehensive solution to the power quality issues of power grid , such as harmonics, reactive power and 3 phase load unbalance. YTPQC-AHF which is in parallel to power grid can detect the harmonic wave in power grid in time, generate the reverse-phase compensation current through the converter and dynamically filter the harmonic wave in power grid.
The operation of YTPQC-AHF is unaffected by multifarious load forms and power grid structures. And it will not produce harmonic oscillation (resonance) along with the system, thus perfectly realizing harmonic control under diverse loads. YTPQC Active Harmonic Filter can fully accomplish dynamic reactive compensation, control the capacitor switching and ultimately heighten the power factor of power grid. Meanwhile, YTPQC-AHF has the function of controlling the three-phase load current unbalance, thus comprehensively handling various power quality matters in power grid.
Modular Design

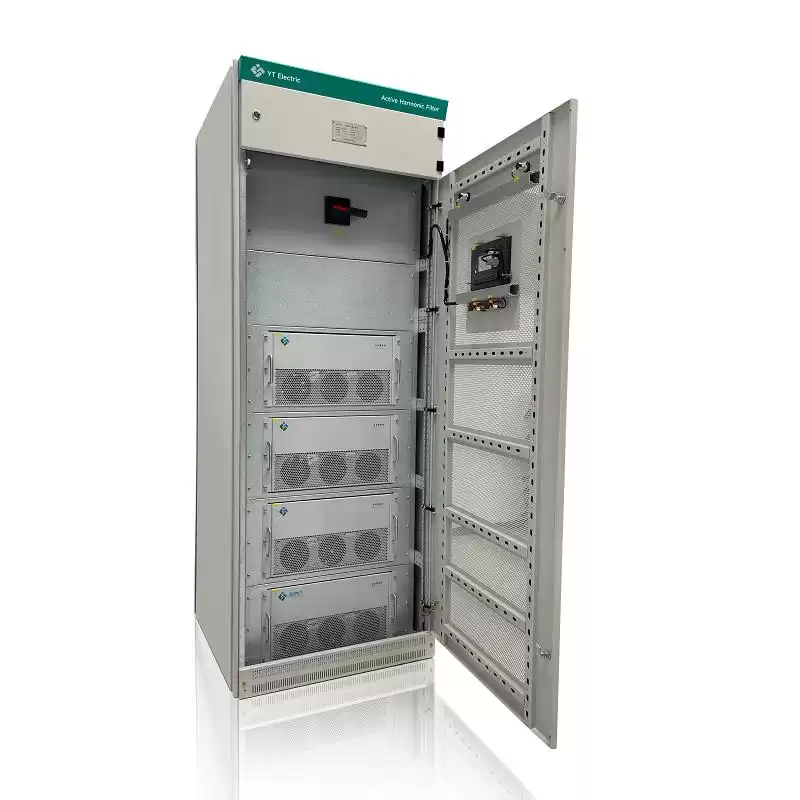

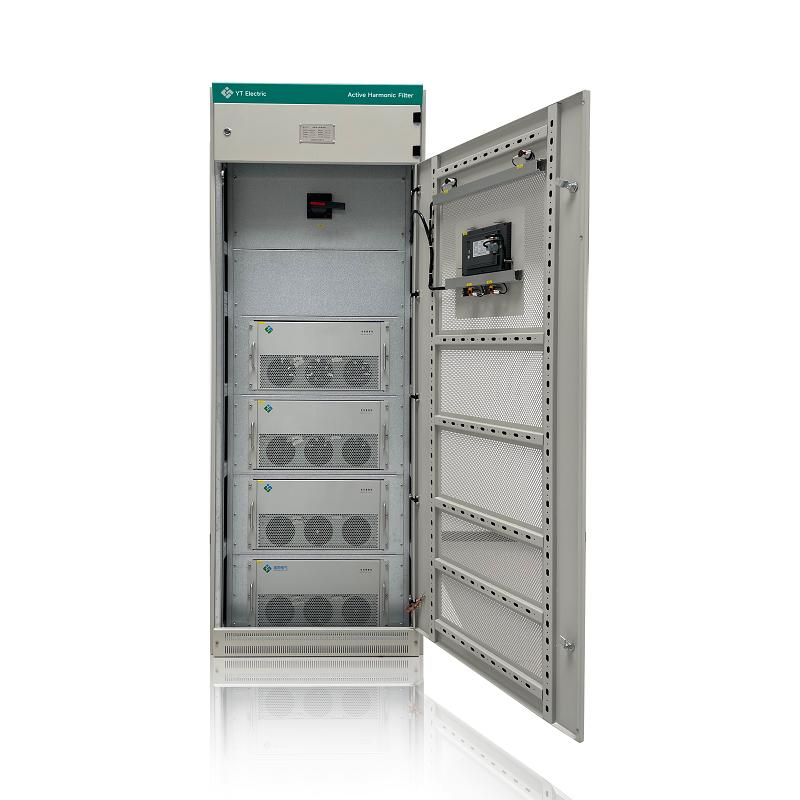

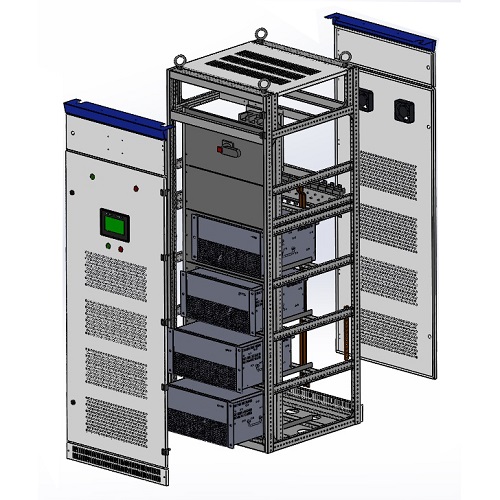

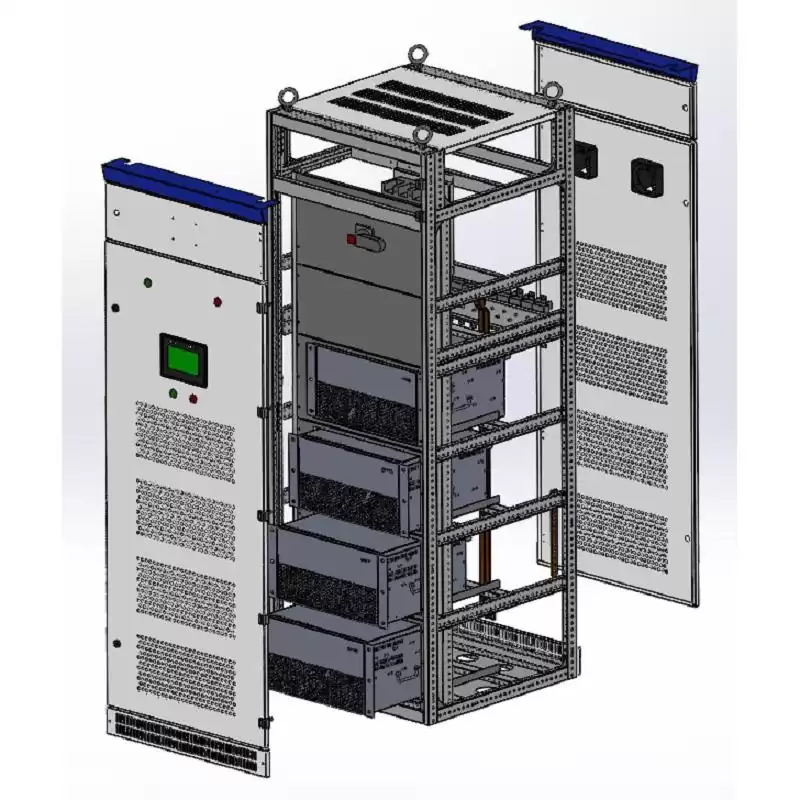

YTPQC Active Harmonic Compensation Filter has a advanced modular design. Usually YTPQC-AHF panel consists of one or several AHF modules and an optional touched LCD Human Machine Interface. Each AHF module is an independent harmonic filtering system, and users can change the harmonic filtering system rating by adding or removing AHF modules.
Model Description
YTPQC-AHF Active Harmonic Compensation Filter Panel series cover from 150A to 750A/cabinet, support wall mounted type or free landing type.
| SN |
Item |
Rated Capacity |
Factory Model |
Dimensions
(W*D*H,MM) |
N.G
(KG) |
Packing Size
(W*D*H,MM)
|
G.W.
(KG) |
| 1 |
APF |
150A |
YTPQC-AHF/150-4-4LF |
800*800*2200 |
220 |
950*950*2450 |
260 |
| 2 |
APF |
200A |
YTPQC-AHF/200-4-4LF |
800*800*2200 |
260 |
950*950*2450 |
300 |
| 3 |
APF |
300A |
YTPQC-AHF/300-4-4LF |
800*800*2200 |
315 |
950*950*2450 |
4355 |
| 4 |
APF |
400A |
YTPQC-AHF/400-4-4LF |
800*800*2200 |
370 |
950*950*2450 |
410 |
| 5 |
APF |
500A |
YTPQC-AHF/500-4-4LF |
800*800*2200 |
425 |
950*950*2450 |
465 |
| 6 |
APF |
600A |
YTPQC-AHF/600-4-4LF |
800*800*2200 |
470 |
950*950*2450 |
510 |
| 7 |
APF |
750A |
YTPQC-AHF/750-4-4LF |
1000*1000*2200 |
525 |
1150*1150*2450 |
565 |
