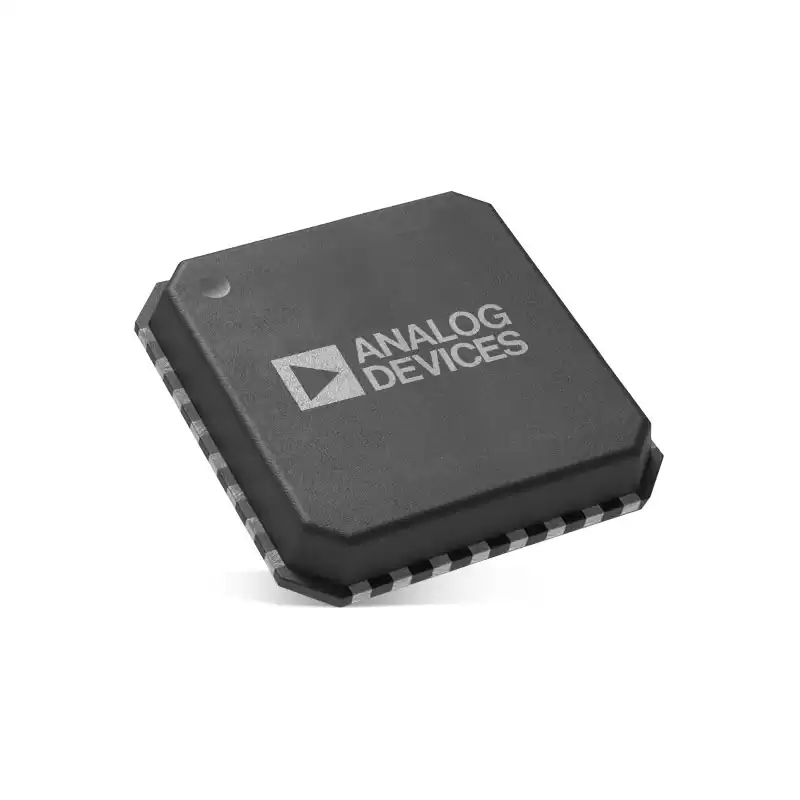

AD9914BCPZ ADI Data Converter ICs
Parameter
| Manufacturer |
Analog Devices Inc. |
| Product Category |
Data Acquisition ADCs/DACs - Specialized |
| Series |
AD9914 |
| Mounting Style |
SMD/SMT |
| Operating Supply Voltage |
1.8 V, 3.3 V |
Minimum Operating Temperature
|
-40 C
|
Maximum Operating Temperature
|
+85 C
|
Package Quantity
|
168 pcs
|
Subcategory
|
Data Converter ICs
|
Unit Weight
|
1.451982 oz
|
Introduction
The AD9914BCPZ chip is a highly integrated direct digital synthesizer (DDS) designed by Analog Devices Inc. It offers a comprehensive solution for generating high-frequency, precise, and digitally-controlled waveforms for a wide range of applications.
The AD9914BCPZ chip combines a high-speed 14-bit digital-to-analog converter (DAC) with a high-performance DDS core. It supports frequency synthesis up to 3.5 GHz, allowing for the generation of complex waveforms with fine frequency resolution.
This chip provides advanced features such as on-chip phase-locked loop (PLL), clock multiplier, and amplitude modulation capability. It offers exceptional frequency accuracy, phase noise performance, and spectral purity, making it suitable for applications in communications, radar systems, test and measurement equipment, and scientific research.
The AD9914BCPZ chip includes a versatile serial interface, enabling seamless integration with microcontrollers and digital signal processors (DSPs). It operates with a single power supply and offers flexible power management options for efficient power consumption.
With its compact LFCSP package and industry-standard pinout, the AD9914BCPZ chip facilitates easy integration into circuit designs. It offers programmability and flexibility, allowing users to generate a wide range of waveforms with precise frequency, phase, and amplitude control.
Application
The AD9914BCPZ chip finds applications in various industries that require high-performance waveform generation and control. It is well-suited for applications in communications, radar systems, test and measurement equipment, and scientific research. With its high-speed DAC, advanced features, and exceptional performance characteristics, the chip enables precise frequency synthesis, phase control, and amplitude modulation. It offers accurate frequency accuracy, low phase noise, and high spectral purity, making it ideal for demanding applications that rely on precise waveform generation. The AD9914BCPZ chip's compact package, versatile serial interface, and programmability allow for seamless integration into circuit designs and enable users to generate complex waveforms with fine control over frequency, phase, and amplitude.
