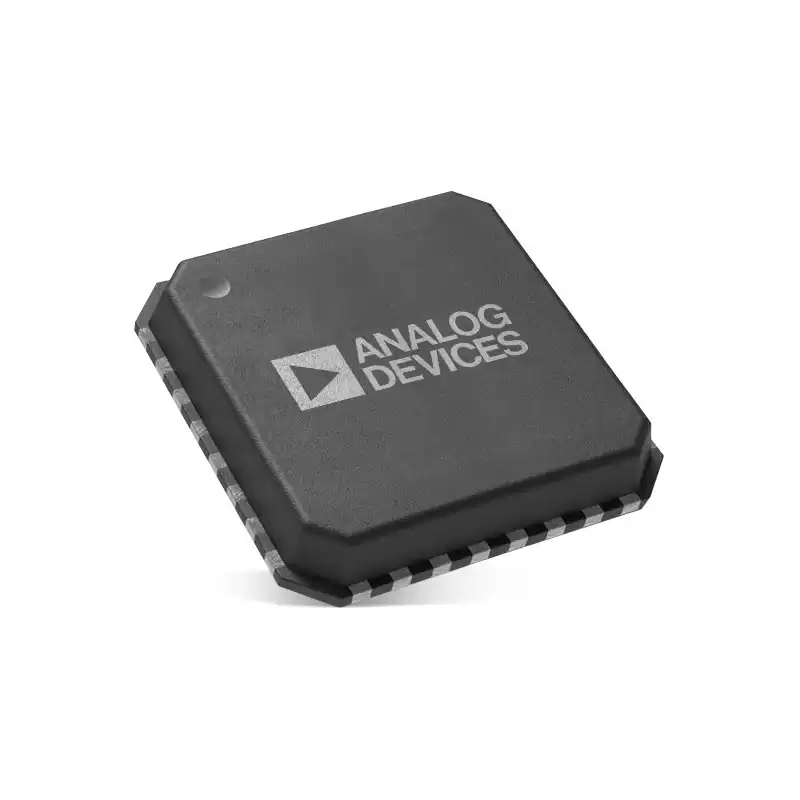

ADF4351BCPZ ADI Phase Locked Loops
Parameter
| Manufacturer |
Analog Devices Inc. |
| Product Category |
Phase Locked Loops - PLL |
| Series |
ADF4351 |
| Mounting Style |
SMD/SMT |
| Supply Voltage - Max |
3.6 V |
Supply Voltage - Min
|
3.3 V |
Minimum Operating Temperature
|
-40 C
|
Maximum Operating Temperature
|
+85 C
|
Package Quantity
|
490 pcs
|
Subcategory
|
Wireless & RF Integrated Circuits
|
Unit Weight
|
0.057602 oz
|
Introduction
The ADF4351BCPZ chip is a highly integrated fractional-N/integer-N frequency synthesizer designed by Analog Devices Inc. It provides a versatile solution for generating precise, high-frequency signals in various applications.
The ADF4351BCPZ chip combines a phase-locked loop (PLL) and a voltage-controlled oscillator (VCO) to generate stable and accurate output frequencies. It offers a wide frequency range with excellent phase noise performance, making it suitable for applications in wireless communications, radar systems, test and measurement equipment, and other RF systems.
This chip supports both fractional-N and integer-N frequency synthesis, allowing for fine frequency resolution and flexibility. It includes an integrated wideband modulator that enables amplitude and phase modulation for advanced signal processing requirements.
The ADF4351BCPZ chip features a flexible serial interface, enabling easy integration with microcontrollers and digital signal processors (DSPs). It operates with a single power supply and offers various power management options for efficient power consumption.
With its compact LFCSP package and industry-standard pinout, the ADF4351BCPZ chip facilitates straightforward integration into circuit designs. It provides programmability and flexibility, allowing users to generate precise and customized frequency signals with control over frequency, phase, and modulation.
Application
The ADF4351BCPZ chip is widely used in various industries for precise and stable high-frequency signal generation. It finds applications in wireless communications, radar systems, test and measurement equipment, and other RF systems. With its wide frequency range and excellent phase noise performance, the chip enables accurate frequency synthesis and reliable signal generation. Its integrated modulator allows for advanced signal processing and modulation capabilities. The ADF4351BCPZ chip features a flexible serial interface for easy integration with microcontrollers and DSPs. Its compact package and programmability facilitate seamless integration into circuit designs, providing users with the ability to generate customized frequency signals with fine control over frequency, phase, and modulation.
