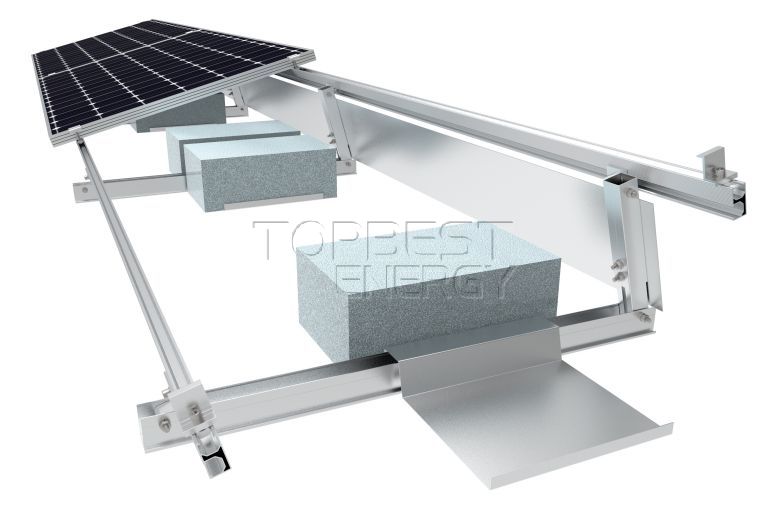

Adjustable Ballasted Triangle Roof PV Mounting Bracket
Installing solar panels by Adjustable ballasted triangle PV structure on rooptop ,the solar panel can be angled adjustable towards the sun on dso they get full use of the uv rays from the sun and the rays are not reflected off the panels
Adjustable Ballasted Triangle PV structure is easy to install and has good stability. It is widely used on the concrete foundation or metal sheet rooftop solar projects. The simple yet strong rack structure enables it to make the best of the existing rooftop, Angle adjustable greatly increase the power yield capacity.
☆ Safety and Good Stability
The system designed by skilled engineers can meet the international standards, The main support components should be tested to ensure the strength,stable and safe.
☆ Easy installation
All components are pre-install which help saving labor cost and time
☆ Angle Adjustable
Angle adjustable greatly increase the power yield capacity.
Technical Parameters
|
Installation Site:
|
Flat Roof or Metal Roof
|
|
Material：
|
Anodized Aluminum 6005-T5
|
|
Tit Angle:
|
Adjustbatl(10-60 degree)
|
|
PV Modules：
|
Framed, Frameless
|
|
Module Layourt：
|
As Designed Portrait or Landscape
|
|
Wind load：
|
60m/s
|
|
Snow Load：
|
1.4KN/m2
|
|
Building height：
|
up to 20m
|
|
Standards：
|
AS/NZS 1170& DIN 1055
|
|
Warranty：
|
10 years warranty
|

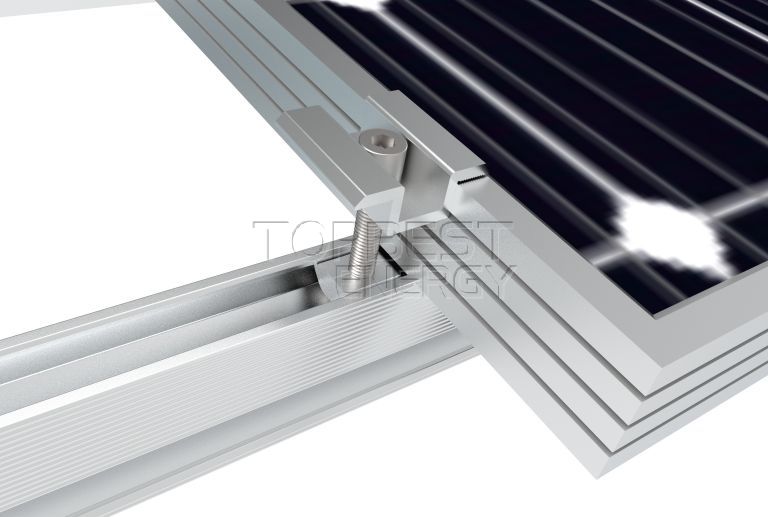

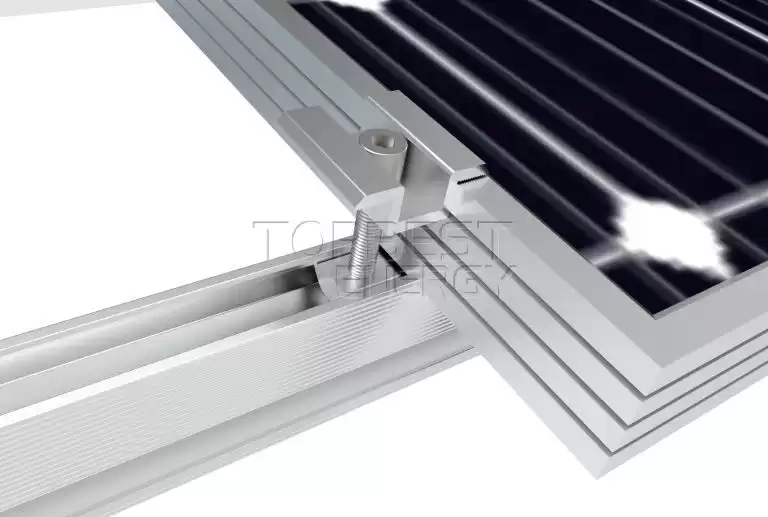

Framed Module Install

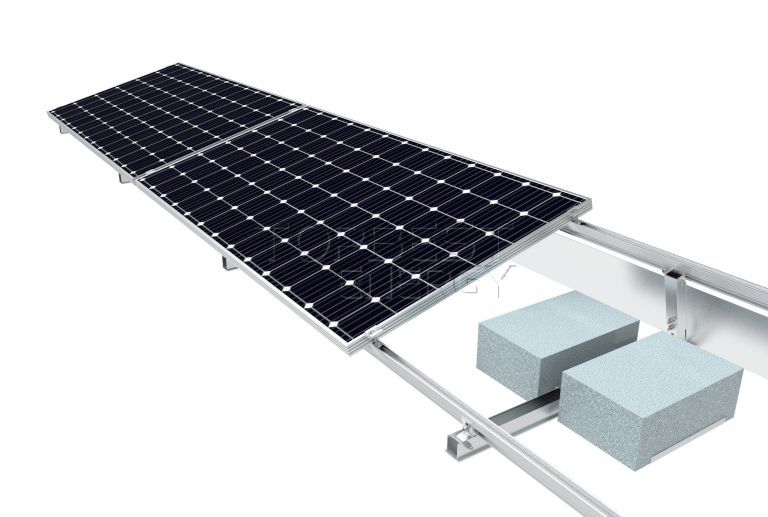

Frameless Module Install
