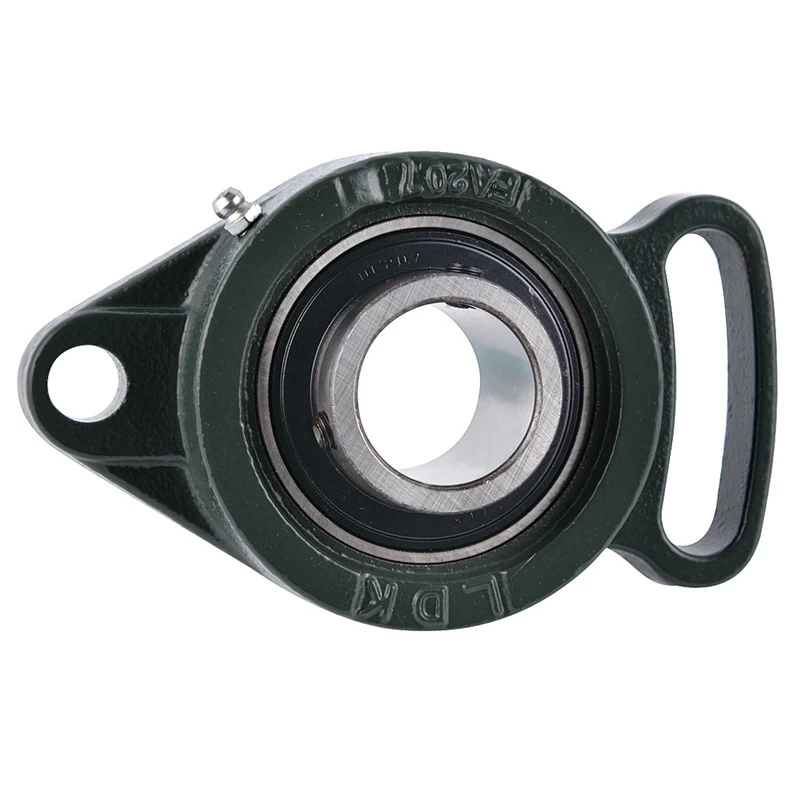

Adjustable Flange Bearing Units UCFA2


UCFA  Standard duty,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.


Facebook Twitter Pinterest LinkedIn 分享

Adjustable Flange Bearing Housing UCFA210

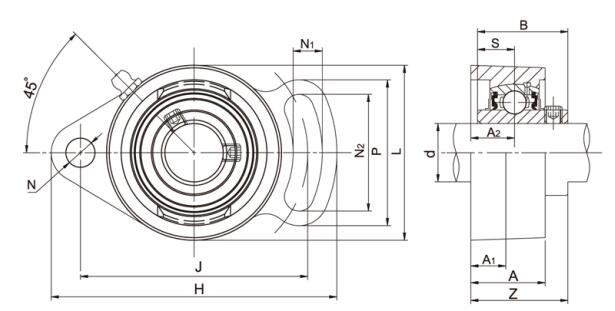

Unit No. Shaft Dia Dimensions (mm) Bolt Size (mm) Weight
d H J A2 A1 A N N1 N2 L P B S Z (kg)
(in) (mm)
UCFA201  12 98 78 15 12 25.5 10 10 40 60 50 31 12.7 33.3 M8 0.53
UCFA201-8 1/2 98 78 15 12 25.5 10 10 40 60 50 31 12.7 33.3 M8 0.53
UCFA202   15 98 78 15 12 25.5 10 10 40 60 50 31 12.7 33.3 M8 0.49
UCFA202-9 9/16   98 78 15 12 25.5 10 10 40 60 50 31 12.7 33.3 M8 0.49
UCFA202-10 5/8   98 78 15 12 25.5 10 10 40 60 50 31 12.7 33.3 M8 0.49
UCFA203  17 98 78 15 12 25.5 10 10 40 60 50 31 12.7 33.3 M8 0.48
UCFA203-11 11/16   98 78 15 12 25.5 10 10 40 60 50 31 12.7 33.3 M8 0.48
UCFA204  20 98 78 15 12 25.5 10 10 40 60 50 31 12.7 33.3 M8 0.46
UCFA204-12 3/4   98 78 15 12 25.5 10 10 40 60 50 31 12.7 33.3 M8 0.46
UCFA205   25 125 98 16 14 27 12 13 51 70 65 34.1 14.3 35.8 M10 0.69
UCFA205-14  7/8    125 98 16 14 27 12 13 51 70 65 34.1 14.3 35.8 M10 0.69
UCFA205-15 15/16   125 98 16 14 27 12 13 51 70 65 34.1 14.3 35.8 M10 0.69
UCFA205-16 1   125 98 16 14 27 12 13 51 70 65 34.1 14.3 35.8 M10 0.69
UCFA206   30 142 117 18 14 31 12 13 58 83 72 38.1 15.9 40.2 M10 1.00
UCFA206-17 1-1/16   142 117 18 14 31 12 13 58 83 72 38.1 15.9 40.2 M10 1.00
UCFA206-18 1-1/8   142 117 18 14 31 12 13 58 83 72 38.1 15.9 40.2 M10 1.00
UCFA206-19 1-3/16   142 117 18 14 31 12 13 58 83 72 38.1 15.9 40.2 M10 1.00
UCFA206-20 1-1/4   142 117 18 14 31 12 13 58 83 72 38.1 15.9 40.2 M10 1.00
UCFA207   35 154 130 19 16 34 15 15 66 95 82 42.9 17.5 44.4 M12 1.50
UCFA207-20 1-1/4   154 130 19 16 34 15 15 66 95 82 42.9 17.5 44.4 M12 1.50
UCFA207-21 1-5/16   154 130 19 16 34 15 15 66 95 82 42.9 17.5 44.4 M12 1.50
UCFA207-22 1-3/8   154 130 19 16 34 15 15 66 95 82 42.9 17.5 44.4 M12 1.50
UCFA207-23 1-7/16   154 130 19 16 34 15 15 66 95 82 42.9 17.5 44.4 M12 1.50
UCFA208   40 172 144 21 16 38 15 15 71 105 87 49.2 19.0 51.2 M12 1.80
UCFA208-24 1-1/2   172 144 21 16 38 15 15 71 105 87 49.2 19.0 51.2 M12 1.80
UCFA208-25 1-9/16   172 144 21 16 38 15 15 71 105 87 49.2 19.0 51.2 M12 1.80
UCFA209   45 180 148 22 18 40 15 15 72 110 90 49.2 19.0 52.2 M14 2.10
UCFA209-26  1-5/8    180 148 22 18 40 15 15 72 110 90 49.2 19.0 52.2 M14 2.10
UCFA209-27 1-11/16   180 148 22 18 40 15 15 72 110 90 49.2 19.0 52.2 M14 2.10
UCFA209-28 1-3/4   180 148 22 18 40 15 15 72 110 90 49.2 19.0 52.2 M14 2.10
UCFA210   50 190 157 22 18 40 15 15 76 115 94 51.6 19.0 54.6 M14 2.30
UCFA210-30  1-7/8    190 157 22 18 40 15 15 76 115 94 51.6 19.0 54.6 M14 2.30
UCFA210-31 1-15/16   190 157 22 18 40 15 15 76 115 94 51.6 19.0 54.6 M14 2.30
UCFA210-32 2   190 157 22 18 40 15 15 76 115 94 51.6 19.0 54.6 M14 2.30
UCFA211   55 216 184 25 20 43 16 17 86 132 104 55.6 22.2 58.4 M14 3.60
UCFA211-32  2   216 184 25 20 43 16 17 86 132 104 55.6 22.2 58.4 M14 3.60
UCFA211-34 2-1/8   216 184 25 20 43 16 17 86 132 104 55.6 22.2 58.4 M14 3.60
UCFA211-35 2-3/16   216 184 25 20 43 16 17 86 132 104 55.6 22.2 58.4 M14 3.60
