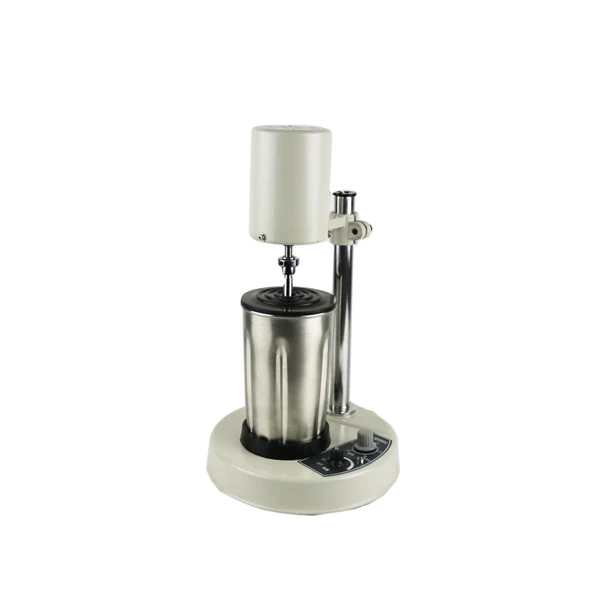

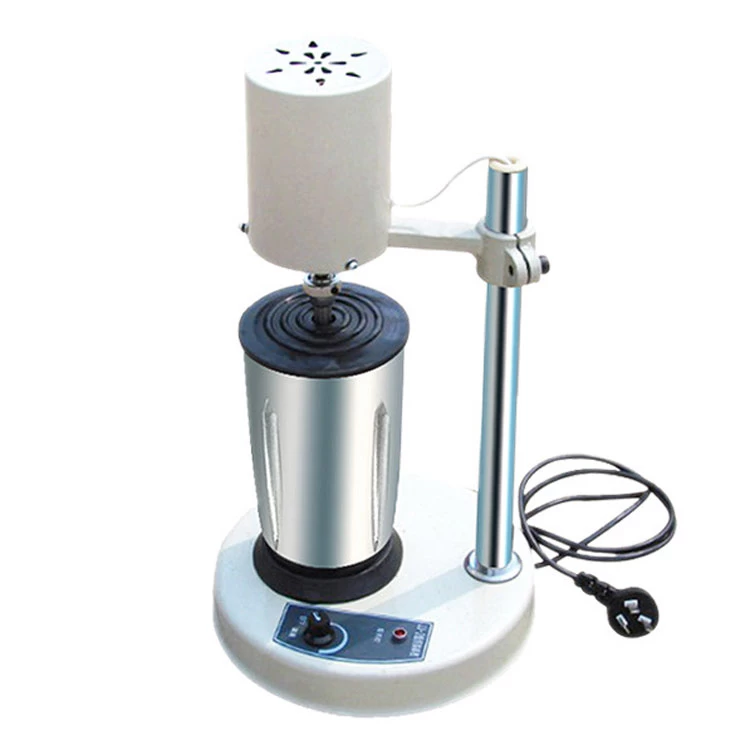

The homogenizer (also known as high-speed electric homogenizer, adjustable high-speed homogenizer, high-speed homogenizer, tissue homogenizer, emulsifier) has a novel structure and reasonable design. Adopt high quality high speed motor and stepless speed change. It is equipped with a voltage regulator system, featuring high power, low noise and safe operation. It is widely used in laboratories such as scientific research, colleges and universities for fine crushing, homogenization, emulsification, dispersion, strong stirring, moisturizing, melting organic or inorganic substances.
The homogenizer was developed by our company in combination with advanced technology at home and abroad and soliciting opinions from users. The 200W, 20,000 rpm single-phase series-excited micro-motor is used. The motor-driven rotary knife acts in the bottle cup, and uses the fluid mechanics and high-speed mechanical shearing force in the bottle. It is equipped with six kinds of homogenized cups, blades and knives of different sizes, and is equipped with six temperature control cups. It can be placed in the cup with hot water or coolant for temperature adjustment according to the needs of the materials, and has mechanical positioning. The mechanical operation is convenient and convenient, the electric part is provided with power-on indicator light, the governor can be steplessly regulated according to the need, and the outer casing is provided with a grounding device, which is safe and reliable when used.
1, model: OLT-03
2, use the power: 220V ± 10% 50Hz
3, power consumption: 200W
4, speed: 0 ~ 20000r / min can be freely adjusted
5, work method: continuous
6, volume: 500 × 370 × 350mm
7, weight: 14Kg
1. Select the bottle number according to the load, put the material into the bottle, turn the required bottle clockwise to the positioner, center the motor shaft, tighten the compression nut, and apply the rubber on the motor shaft and the cutter shaft. Connect the tubes, evenly distribute them up and down, turn on the power switch, and turn on the power when the indicator light is on. Adjust the governor knob to select the appropriate speed.
2. (1) Note that the power supply must match the technical data before starting the power. (2) Connect the crankshaft to the cutter shaft perpendicularly with a rubber hose. (3) In order to avoid excessive torque generated by the cutter shaft, damage the machine parts, break the bottle cup, the governor should be turned on the zero position before the machine can be turned on, and the speed is slow to fast. (4) The blade should be rigorously sharpened at the sharp angle and can not be deformed to ensure stable start-up and high work efficiency.
3. The motor and governor should not be damp and keep clean.
4. The bearings should be inspected regularly, and the high-temperature lubricating oil should be added once every six months.
5. When it is found that the governor is not adjusted, it should be stopped for inspection.
6, carbon brush should be checked frequently, wear and tear to replace, found that the carbon brush spark should be too large to stop using, repair can be started.
7. Vulnerable items need to be updated.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
