Adjustable roof mount-concrete foundation

Adjustable roof mounting system is quite cost-effective and easy installation.It save installation time as well as cost.


  • Warranty12 years

Adjustable roof mount is easy installation and perfect for flat concrete roof.The bracket system with fewer components, low price,  and adjustable angle


Technical Parameters

Installation Angle

5-60°

Wind Load

60m/s

Snow Load

1.6KN/m2

PV Modules

Framed,unframed

Module Orientation

Landscape

Standards

AS/NZS 1170



DIN 1055



JIS C 89552017



International Building Code IBC 2009



California Building Code CBC 2010

Material

Al6005-T5(Anodized)

Color

Silvery or according to customer requirements

Warranty

12 years



Adjustable roof mount-concrete foundation


Feature:

1.Back leg is adjustable,to ensure the angle is adjustable;

2.The whole system consist of front leg,back leg,rail,rail splice,inter clamp and end clamp,easy installation

3.Less components,more cost-effective


Advantage


High strength,anti-uv,high frequency insulation(design standard:JIS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
Chemical resistance&weatherablity(certificate:AS/NZS 1170,MCS,CSA etc);
Max wind speed :up to 60m/s;
Material:Al 6005-T5;
Anti-corrosive:anodized;
Warranty:12 years;
Duration:25 years.

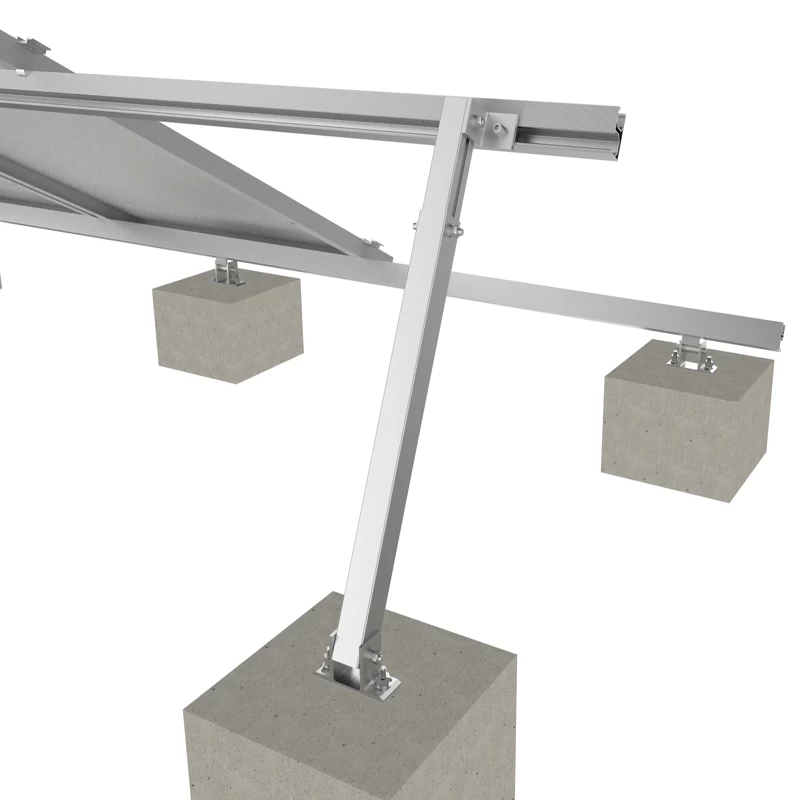

Component photos of adjustable roof mount-concrete foundation

adjustable solar panel roof mount

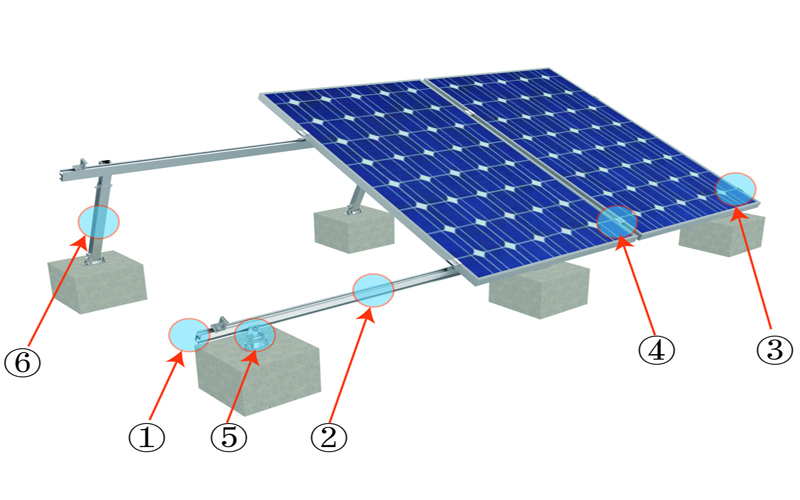

Solar roof rail Solar roof rail splice Solar end clamp Solar inter clamp

      1. Solar roof rail               2. Solar roof rail splice             3. Solar end clamp              4. Solar inter clamp

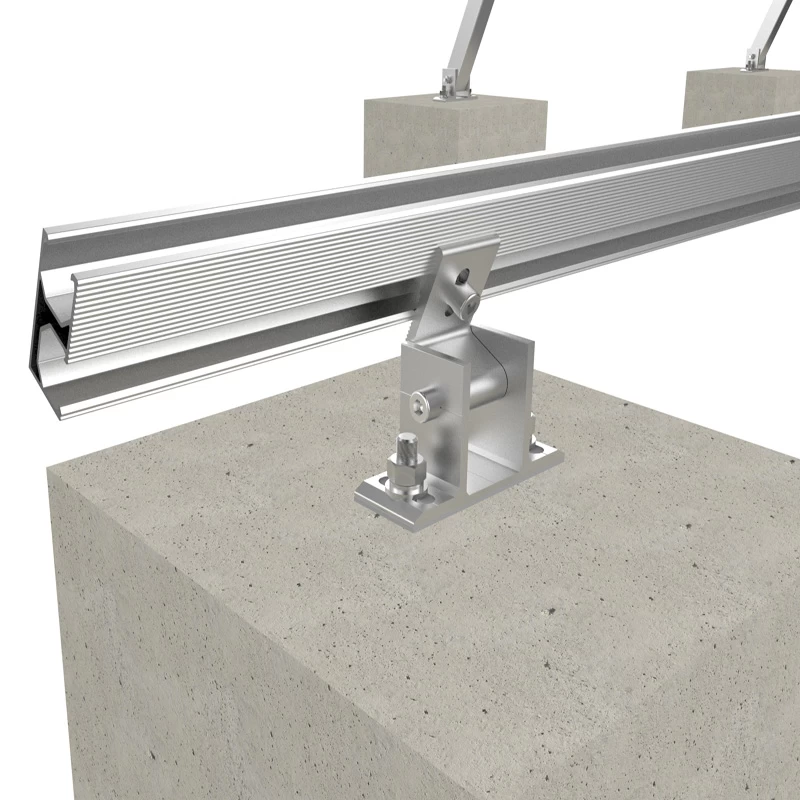

Adjustable front leg Adjustable back leg

  5. Adjustable front leg      6.  Adjustable back leg


Installation photos of adjustable roof mount-concrete foundation

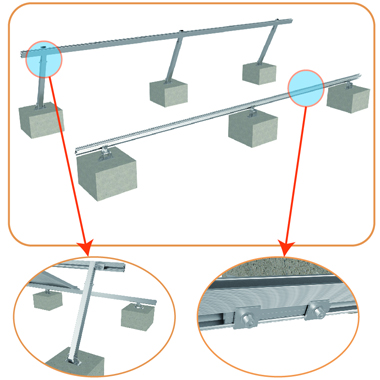

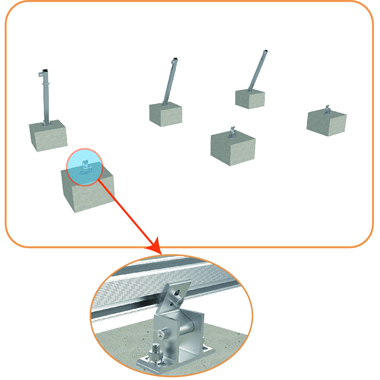

Step1:Install adjustable front legs and back legs            Step2:Install rails and rail splices



Adjustable roof mounting system      Adjustable roof mounting system

                     Adjustable front leg                                         Adjustable back leg                    Rail splice

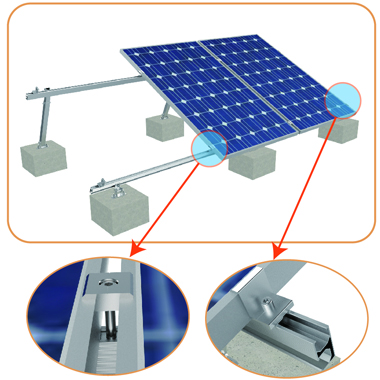

Step3:Fasten panel by inter clamps and end clamps     Step3:Installation completion diagram



adjustable aluminum pv mounting system    adjustable roof mount

             Inter clamp                         End clamp


adjustable ground mount solar rack
