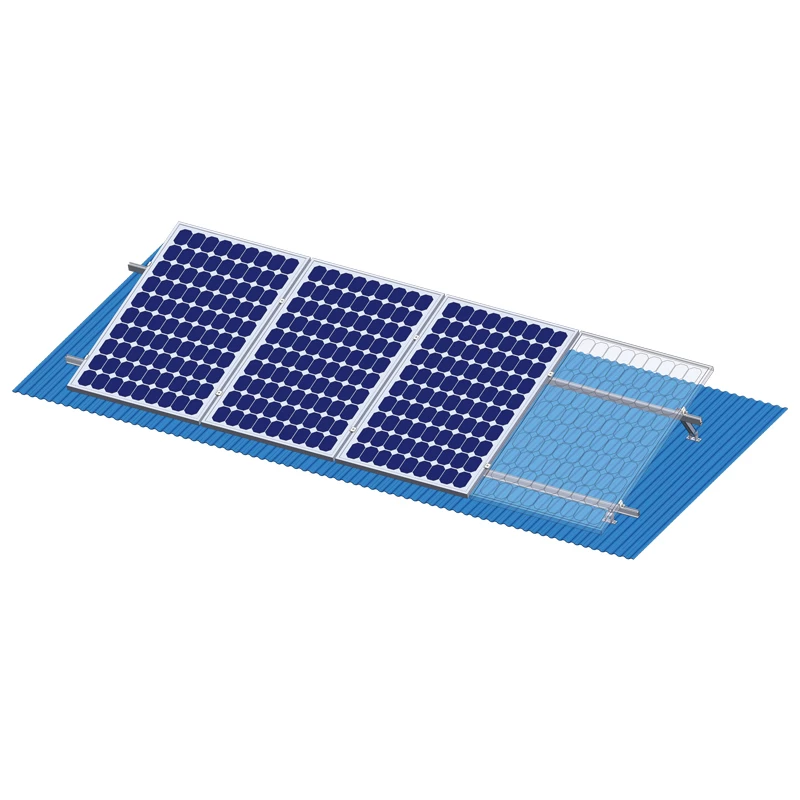

Product Name: Adjustable solar panel mounting system for flat surface
Product Description
Adjustable Solar Panel Tilt Mount Brackets Support most Solar Panel on the market for Roof, RV, Boat and Any Flat Surface, for on-Grid/Off-Grid Systems
Ideal for easy transportation and safe mounting
Maximum tilt angles depend on the size of solar panels.
Used on flat surface or tin roof.
Easy installation.
Light weight aluminum alloy material

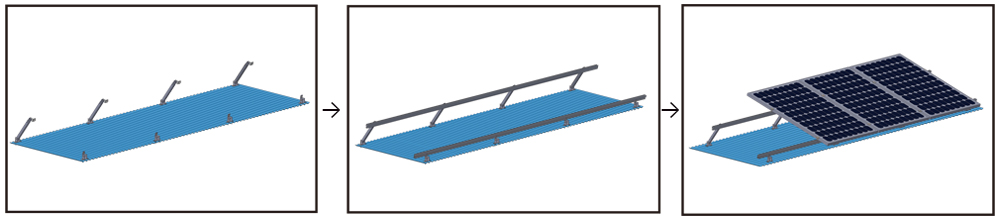

Installation Guide:
Step 1: Fix adjustable front leg and rear leg on steel roofing.
Step 2: Fix solar rail on adjustable front leg and rear leg.
Step 3: Put solar panel on rail and fix with solar clamp until finished.

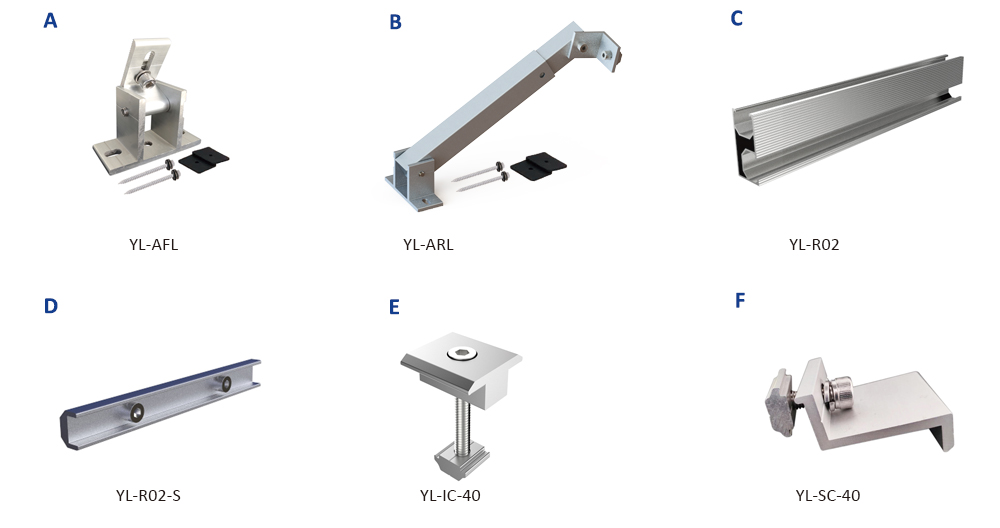

Components List:
A: Adjustable front leg
B: Adjustable rear leg
C: Alu roof rail
D: Rail Splice
E: Mid clamp
F: End clamp

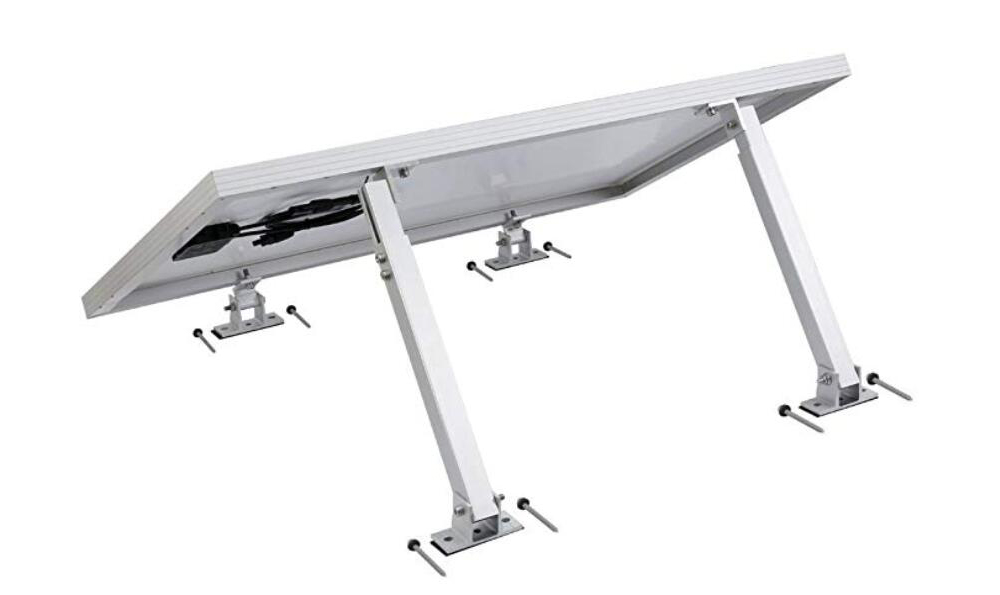

There are two install type, one is with aluminum rail profile, the other is without profile, adjustable front leg and rear leg only.
