Adjustable Solar Panel Tin Roof Mount Bracket
Product Description

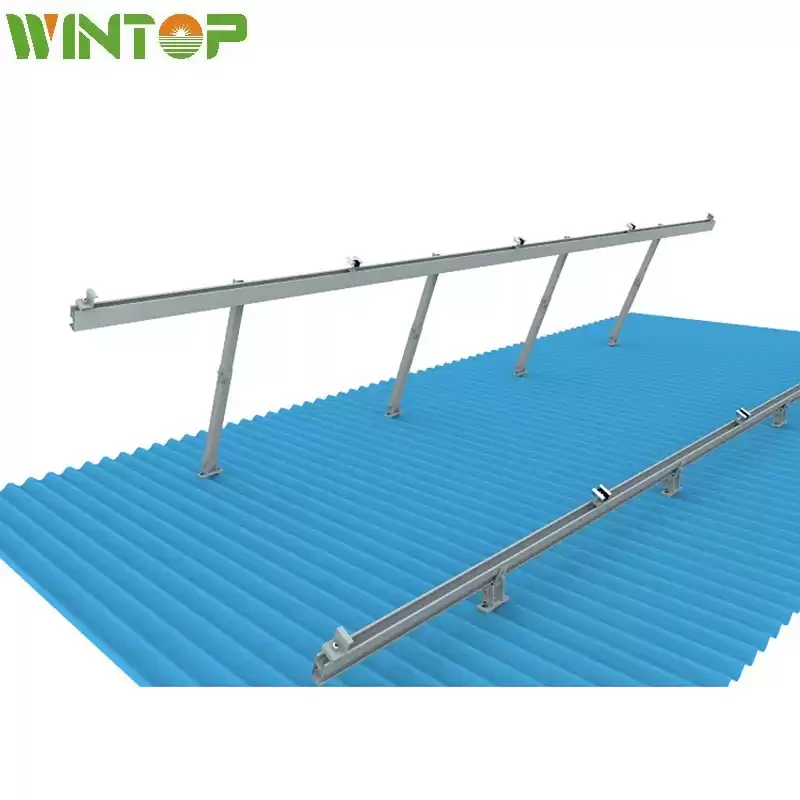

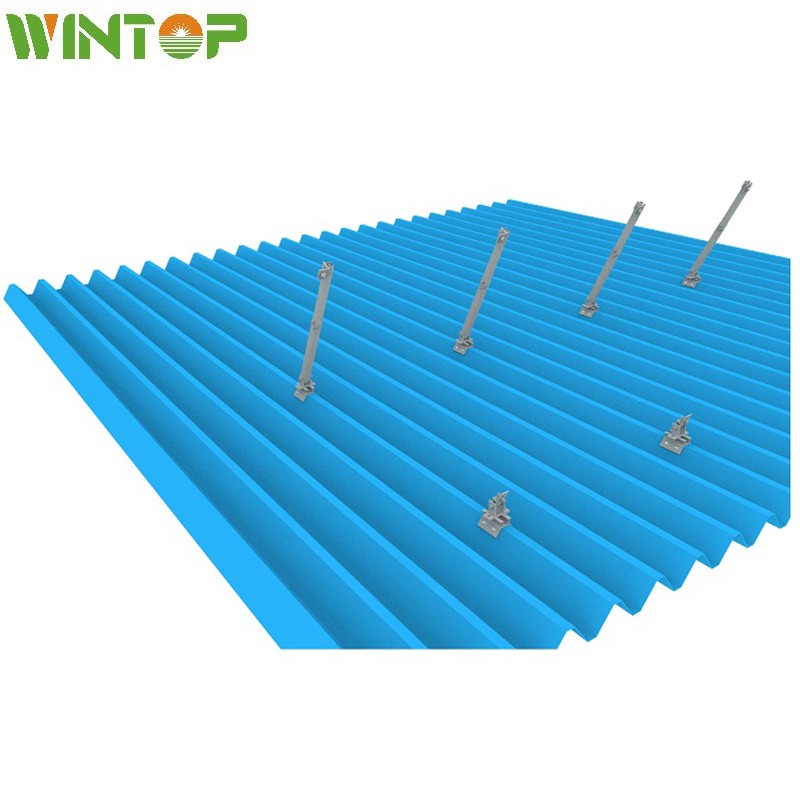

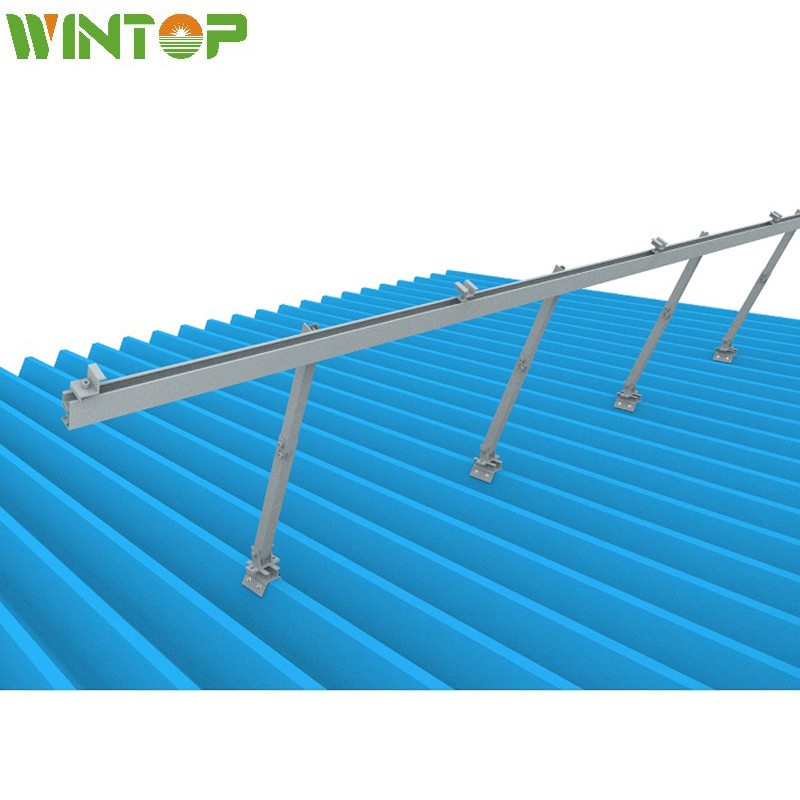

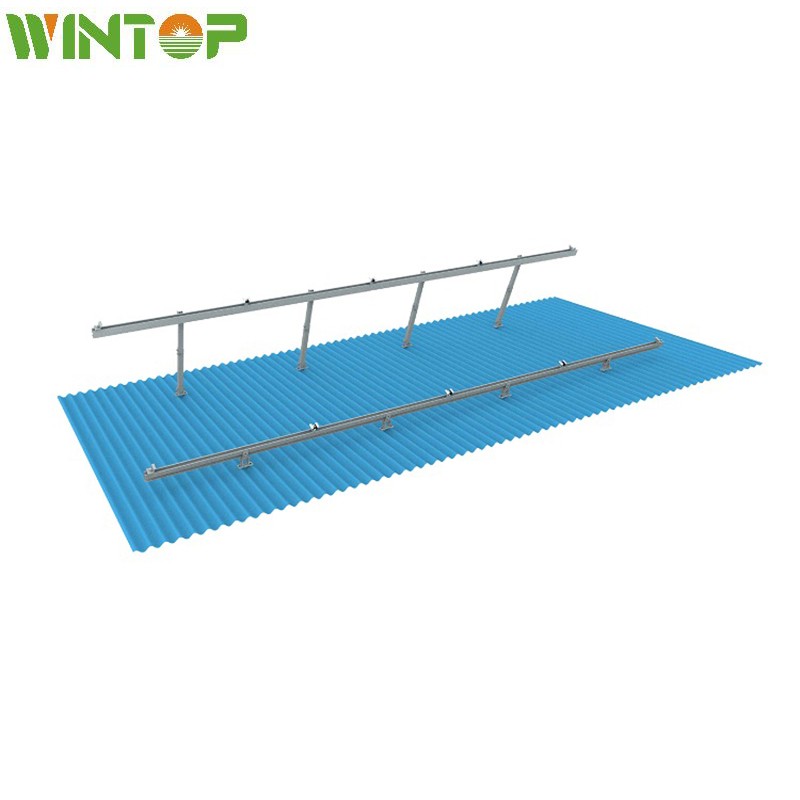

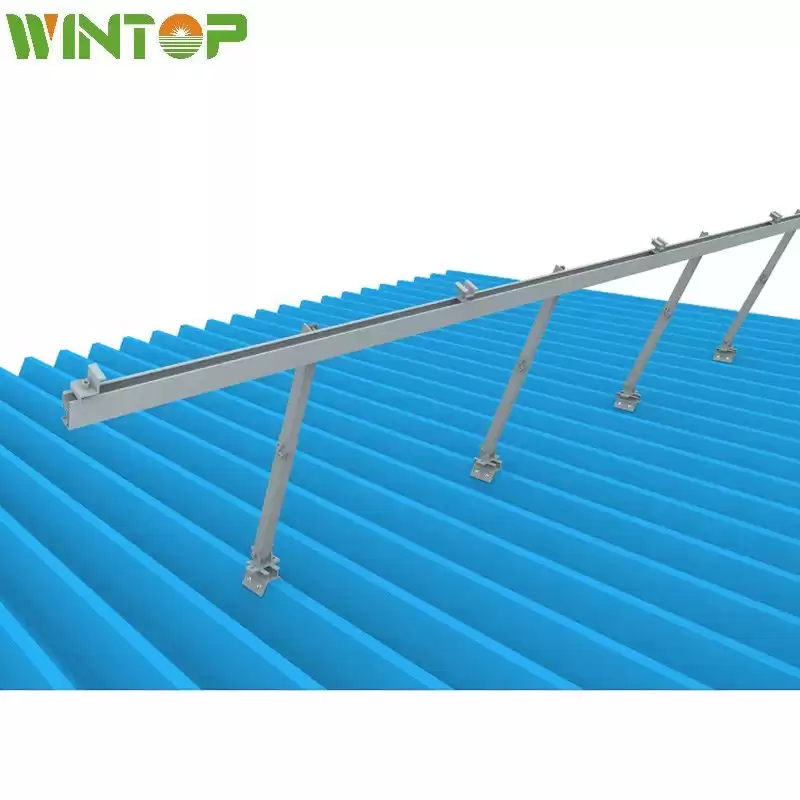

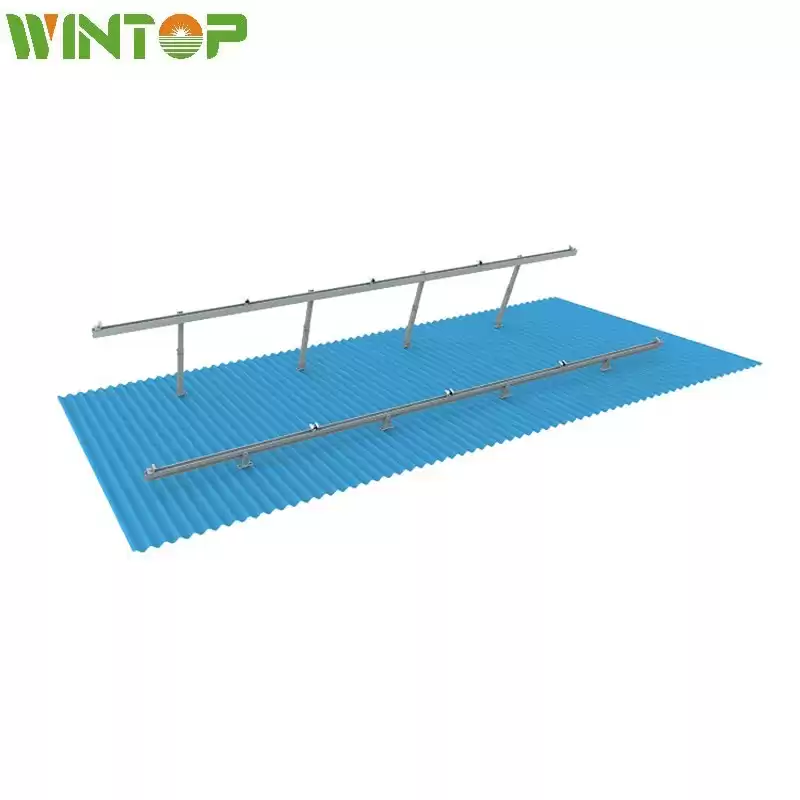

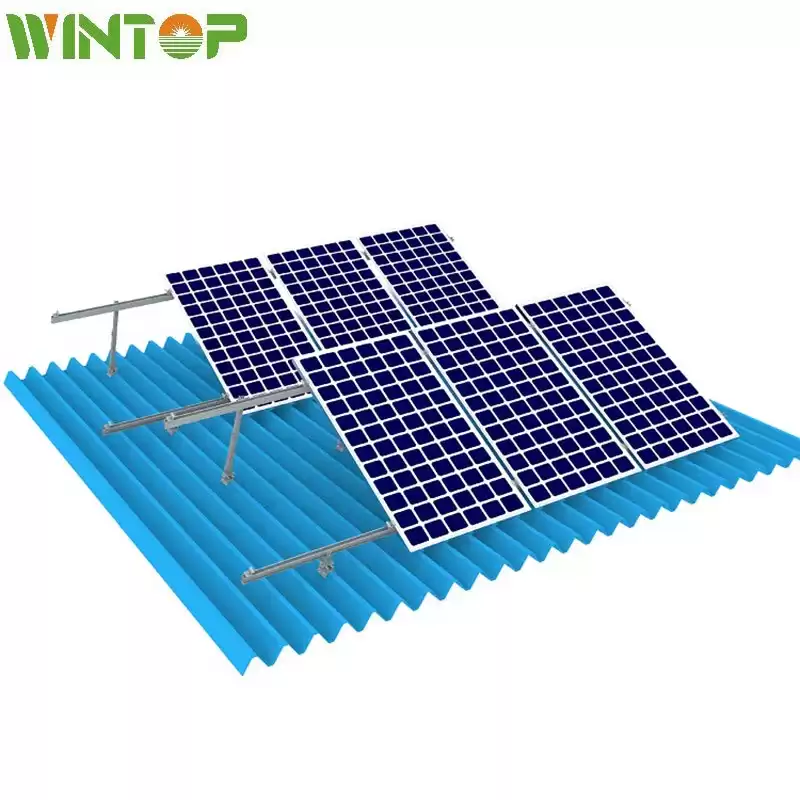

Adjustable solar panel roof mount system which tilt angle is variable, easily adapting to flat roofs or open areas with different angles. The telescopic rod can be designed as a fixed angle or an adjustable angle. It can be adjusted according to site construction requirements to make the system reach the maximum power generation. It is highly pre-assembled without on-site cutting , Welding, simple and convenient installation.
Technical Parameters
|
Installation location
|
Roof
|
|
Installation foundation
|
Tin roof
|
|
Installation angle
|
10°/15°, 15°/30°, 30°/60°
|
|
Wind load
|
60m/s（216kmh/133mph)
|
|
Snow load
|
1.4KN/m²
|
|
Distance from module lowest point to the ground
|
Roof height
|
|
Applicable module type
|
Mono-crystalline, Poly-crystalline, Double wave and Thin film
|
|
Module Orientation
|
Horizontal, Vertical
|
|
Design standard
|
AS/NZS1170,JIS C 8955-2017
|
|
Bracket material
|
AL6005-T5(Anodized Oxidation)
|
|
Fastener Material
|
Stainless steel SUS304
|
|
Warranty&Duration
|
10 years&More than 20 years
|
Features & Benefits
1. Adjust the angle to make the system in different seasons or the longest sunshine time
2. The base can be aluminum plate or directly fixed on the roof
3. Compatible with various components

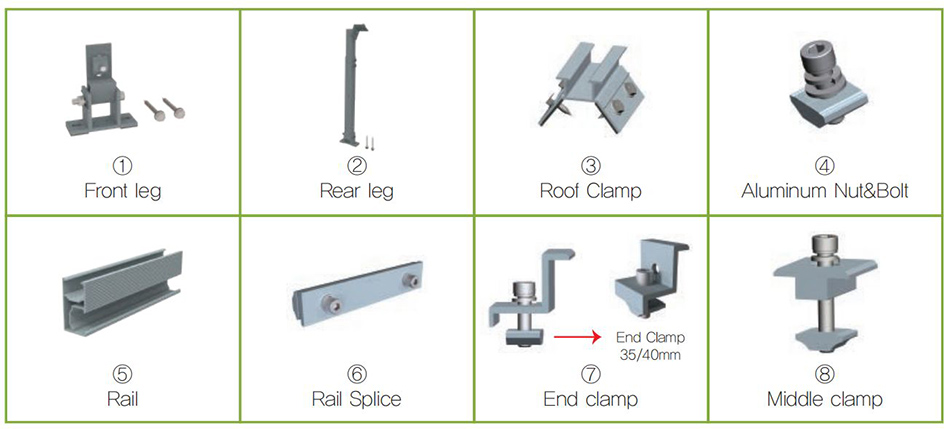

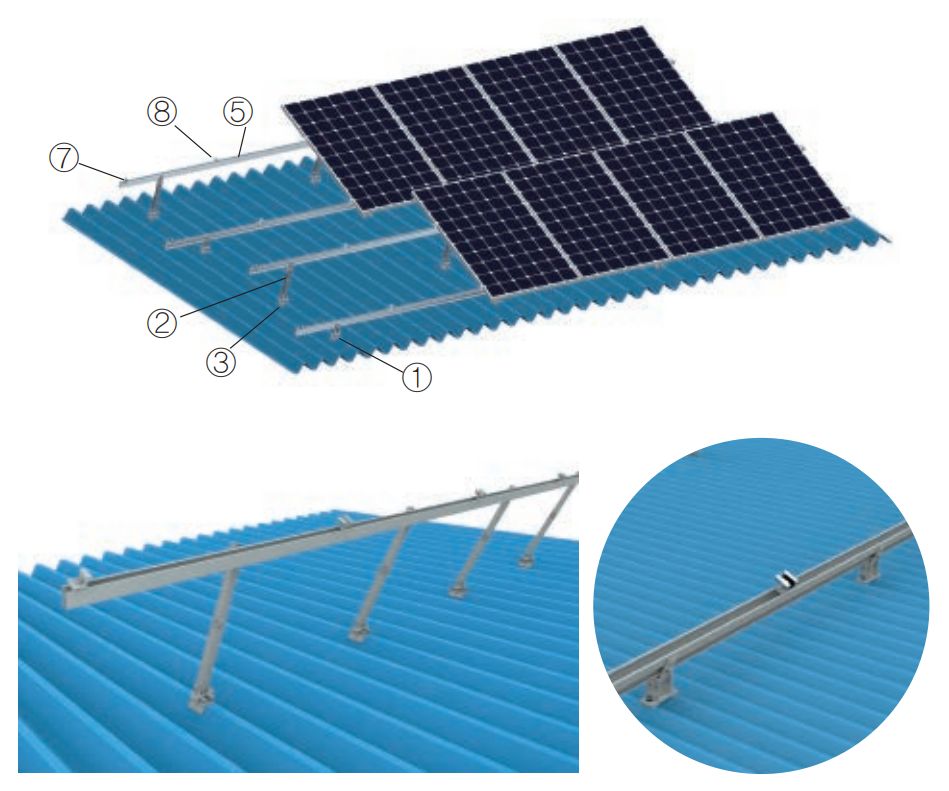

Components

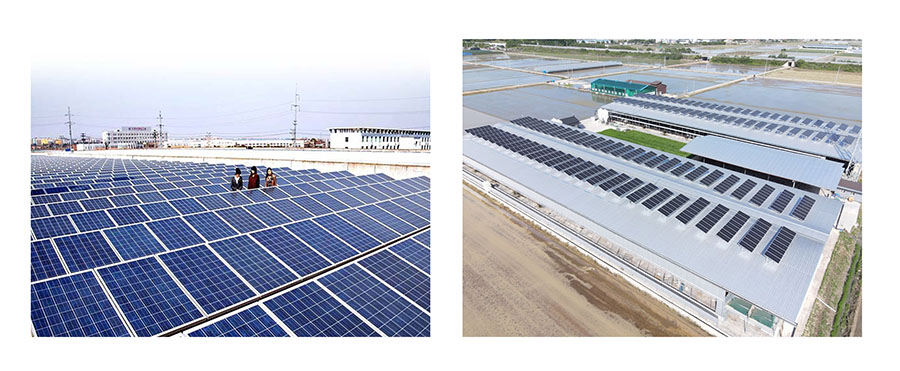

Project
Certificate
QC
WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.
FAQ
(1) Will the solar panels cause my roof to leak?
No, all of our mounting solutions are professionally engineered, guaranteed to ensure the integrity of your roof.To prevent water intrusion on shingled roofs, we use metal flashing kits that create a watertight seal every time.
(2) Where is your factory located?
Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.
(3) How can I get to your factory?
When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.
(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
(5) What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
