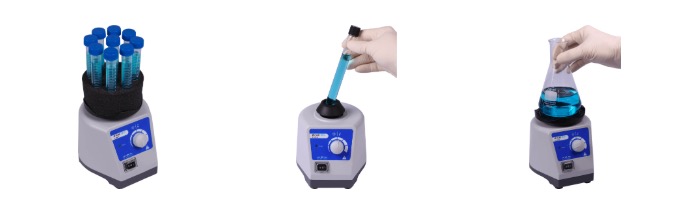

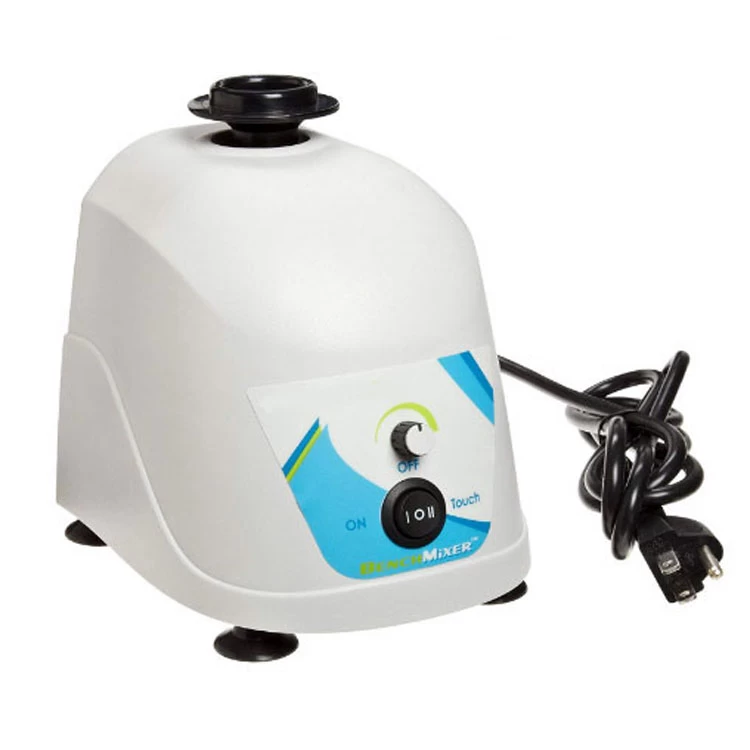

The OLT-VM analogue vortex mixer is compact, stable and user friendly with variable speed. A wide range of adapters allow this vortex mixer to be used for numerous applications including mixing small 250ml Erlenmeyer flasks and batches of various tube sizes. OLT-VM range of vortex mixers (also known as a vortexer) are widely use in physical and chemical analysis, vigorous re-suspension of cells or chemical pellets in tubes and life sciences. Vortex mixers are often used in bioscience laboratories in cell-culture and microbiology to suspend cells as well as in biochemical or analytical laboratories to mix a diluent and an experimental sample or to mix reagents of an assay.
-
Step-less variable speed variations between 0 and 2500 rpm
-

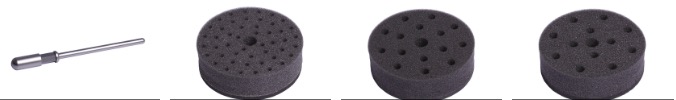

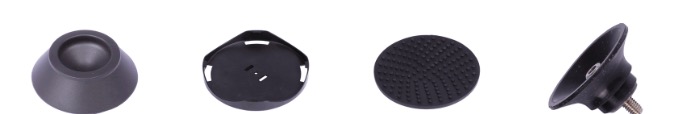

Large selection of adapters available as optional extras for tube and flask mixing
-
Continuous and Touch Operation
-
Quiet and compact design
-
Can mix up to 48 x Ø6mm test tubes at once
-
Stable Aluminum Cast base with silicone feet provides superior stability
-
Constant speed under varying loads, monitored by electronic circuit
-
Excellent mixing capabilities
-
Silicone feet for ultra-stability
-
Eccentric with ball bearings
-
CE Marked
-
2 Year Warranty
|
Model Number
|
OLT-VM-A
|
OLT-VM-B
|
|
Type of Movement
|
Orbital
|
Orbital
|
|
Operation Type
|
Touch
|
Continuous / Touch
|
|
Orbital Diameter [mm]
|
4.8
|
4
|
|
Speed Range [rpm]
|
3000
|
0 - 2500
|
|
Speed Display
|
No
|
Analogue
|
|
Motor Rating Input [W]
|
12
|
58
|
|
Motor Rating Output [W]
|
8
|
10
|
|
Timer
|
No
|
No
|
|
Protection Class Acc. to DIN EN 60529
|
IP 21
|
IP 21
|
|
RS232 Computer Interface
|
No
|
No
|
|
Dimensions (W x H x D) [mm]
|
134 x 70.5 x 134
|
127 x 160 x 130
|
|
Weight [kg]
|
0.8
|
3.5
|
|
Housing Material
|
ABS with Cast Aluminum Base
|
|
Permissible Ambient Temperature [°C]
|
5 - 40
|
5 - 40
|
|
Permissible Relative Humidity [%]
|
80
|
80
|
|
Input Power [W]
|
20
|
60
|
|
Voltage [V AC]
|
100 - 240
|
110 – 120 / 220 - 230
|
|
Frequency [Hz]
|
50/60
|
50/60
|
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
