Adjustable Tilt Roof Solar Mounting System

Adjustable Tilt Roof Mounting System It is easy to install and has good stability.  It allows solar panel to be installed in the angle ranges from 10 to 15 degrees,15 to 30 degrees and 30 to 60 degrees.



Adjustable Tilt Roof Solar Mounting System

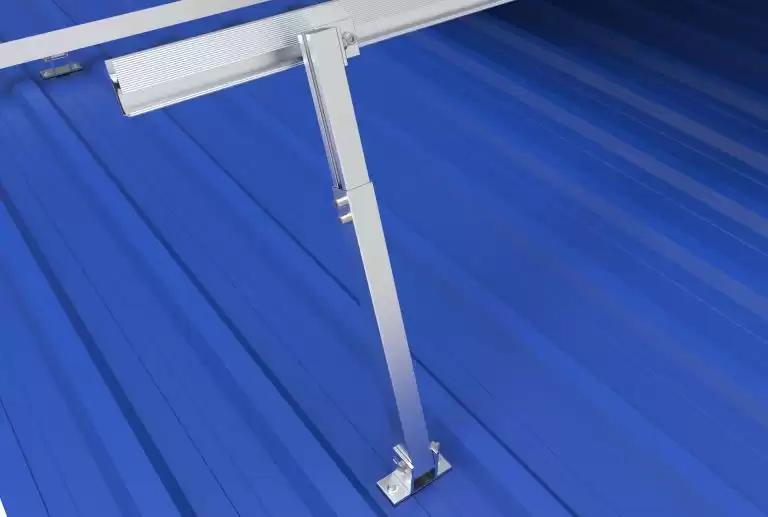

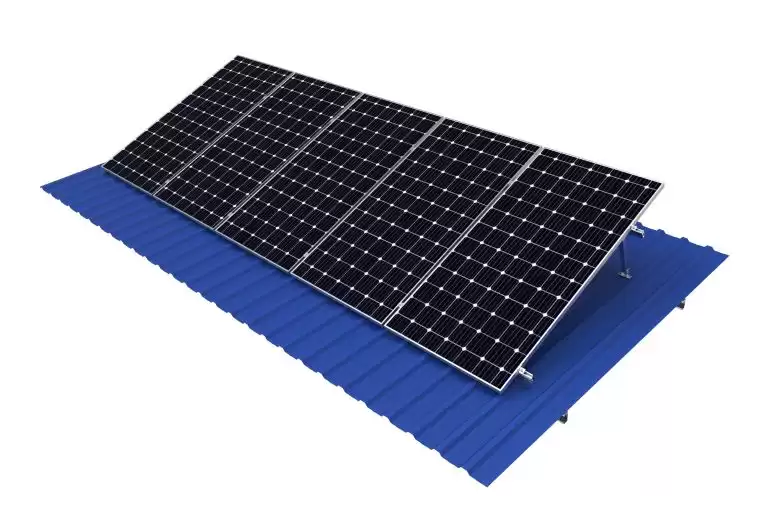

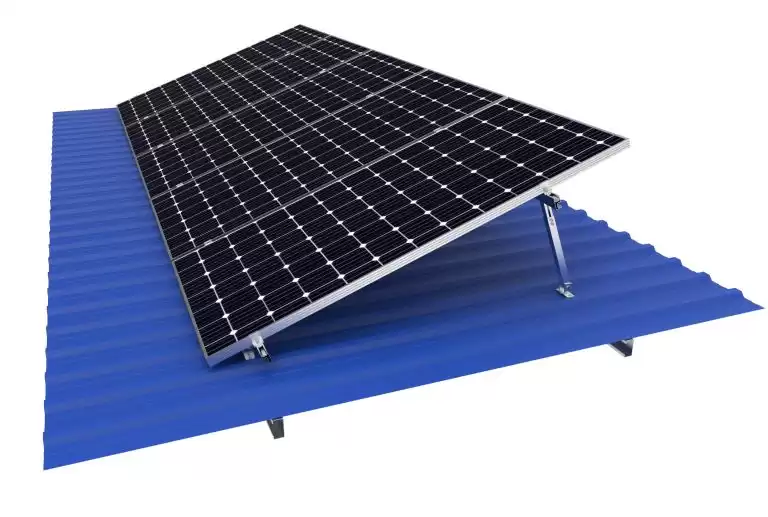

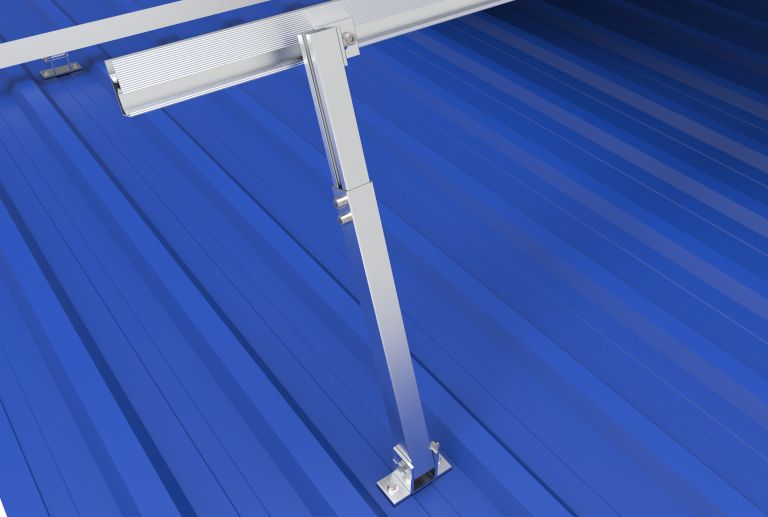

         Adjustable Tilt roof mounts is designed for metal roof . It can be fixed on rooftop,  easy to install and has good stability. It is widely used on the north slope of the plant to ensure that the panels on the north slope and the south slope have the same light intensity, so as to increase the power generation, It allows solar panel to be installed in the angle ranges from 10 to 15 degrees,15 to 30 degrees and 30 to 60 degrees.


☆ Safety and Good Stability

The system designed by skilled engineers can meet the international standards, The main support components should be tested to ensure the strength ,stable and safe,
☆ Easy installation
All components are pre-install which help saving labor cost and time
 Various Solution
This system is customized  to fit for metal roof size with proper clamps.


Technical Parameters


Installation Site:  Metal Roof
Material: SUS304, AL6063-T5/6005-T5
Tit Angle: 10-15,15-30,30-60 adjustable
PV Modules: Framed, Frameless
Module Layourt: As Designed Portrait and Landscape
Wind load: 60m/s
Snow Load: 1.4KN/m2
Building height: up to 20m
Standards: AS/NZS 1170& DIN 1055
Warranty: 10 years warranty

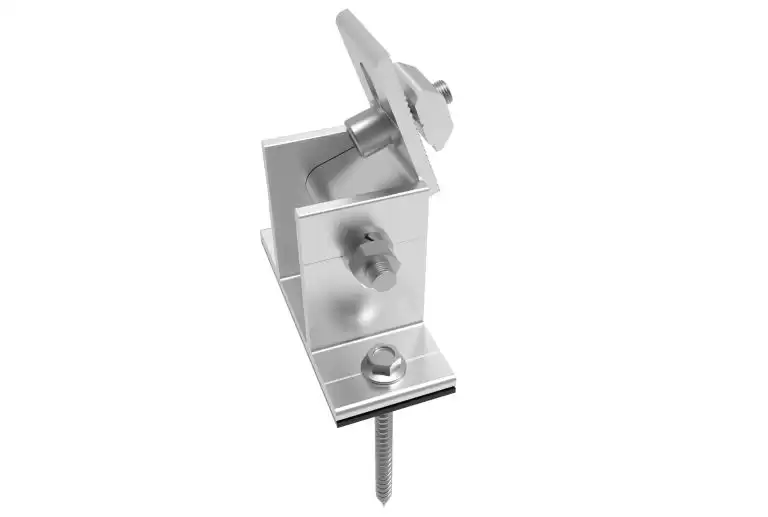

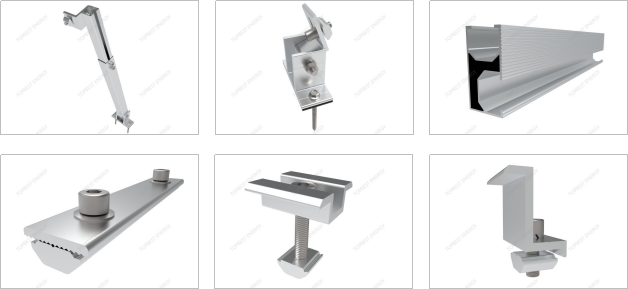

Components


Optional  Clamps
