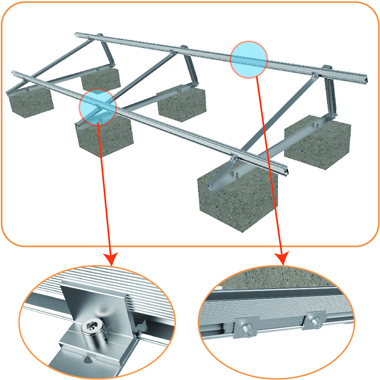

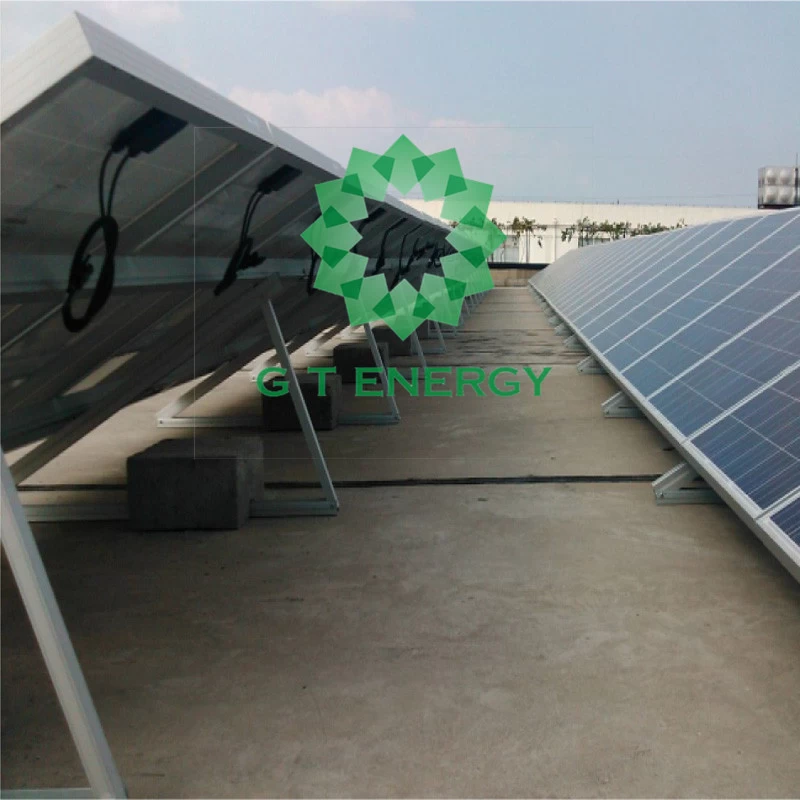

This design is flexible and strong.We design two type of triangle mount-fixed triangle mount(more flexible) and tube type triangle mount(more strong).
It is quite popular in Thailand,East west etc.It is quite flexible,light,convenient and strong.
Technical Parameters
|
Installation Angle
|
5-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

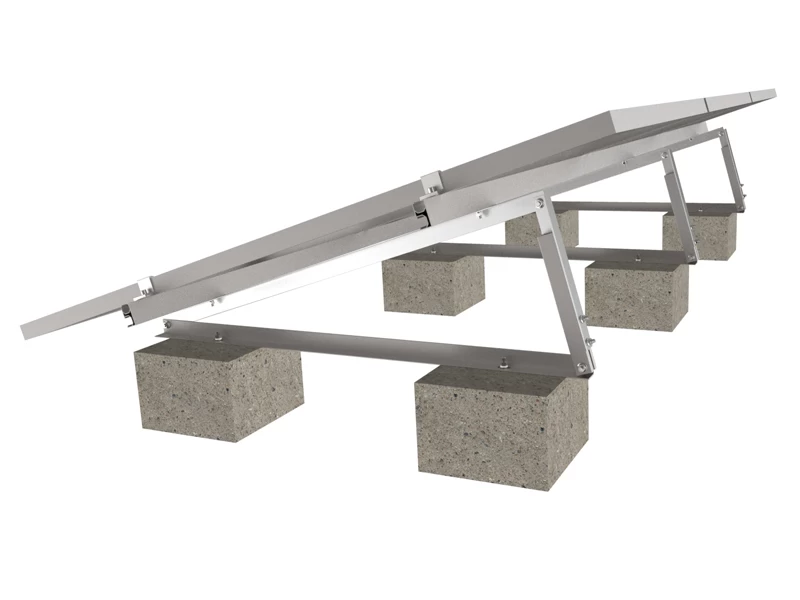

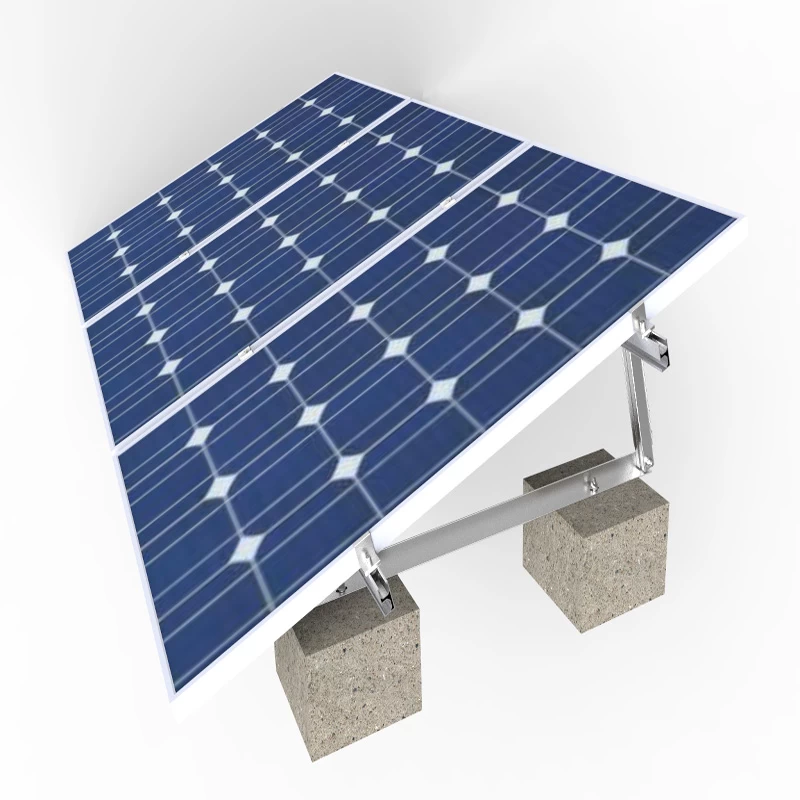

Adjustable triangle roof mount
Feature:
1. The support tube is make by
square tube and aluminum angular,ensure flexible effect
2. Strong structure,easy
installation
3. Fasten in the concrete block by
expanded bolt,ensure whole mounting system strong,stable.
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

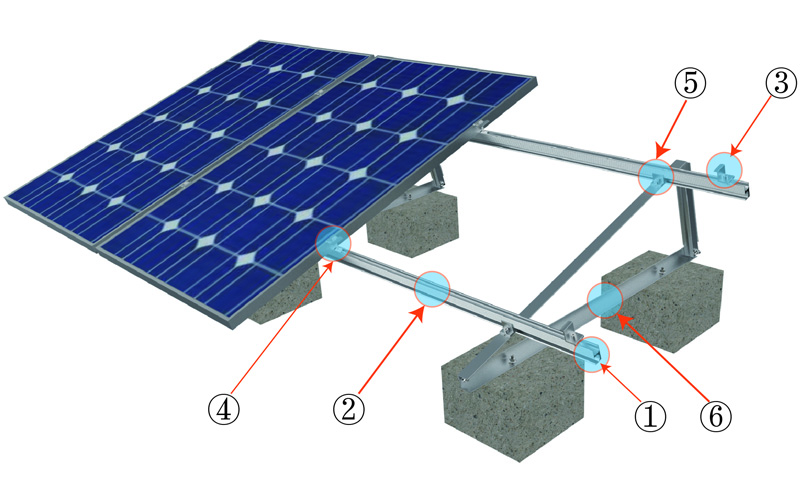

Component photos of adjustable triangle roof mount
1. Solar roof rail 2. Solar roof rail splice 3. Solar end clamp 4. Solar inter clamp

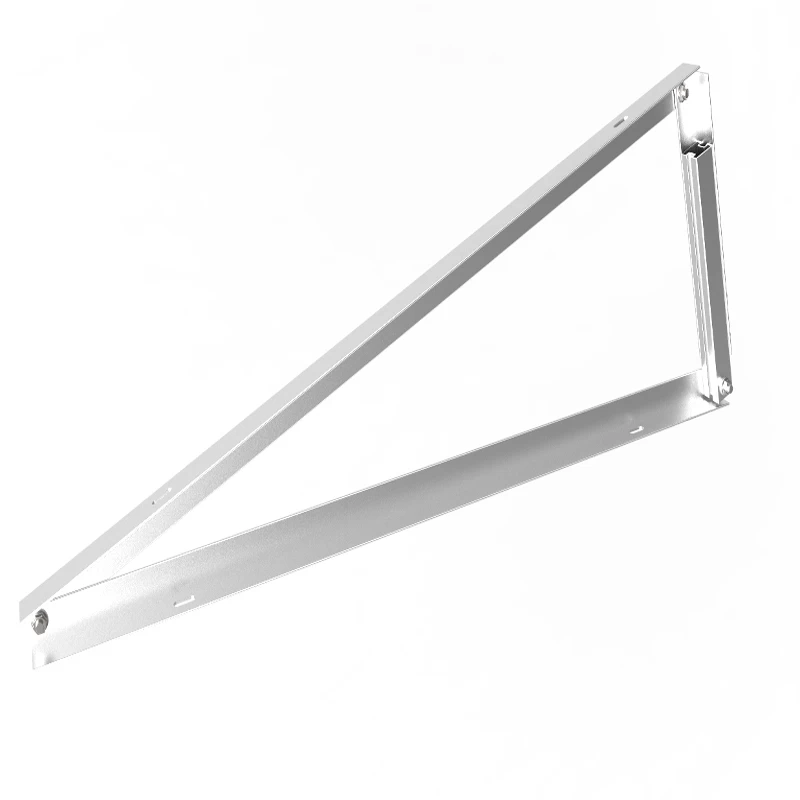

5. Solar rail clamp 6. Adjustable triangle
Installation steps of adjustable triangle roof mount

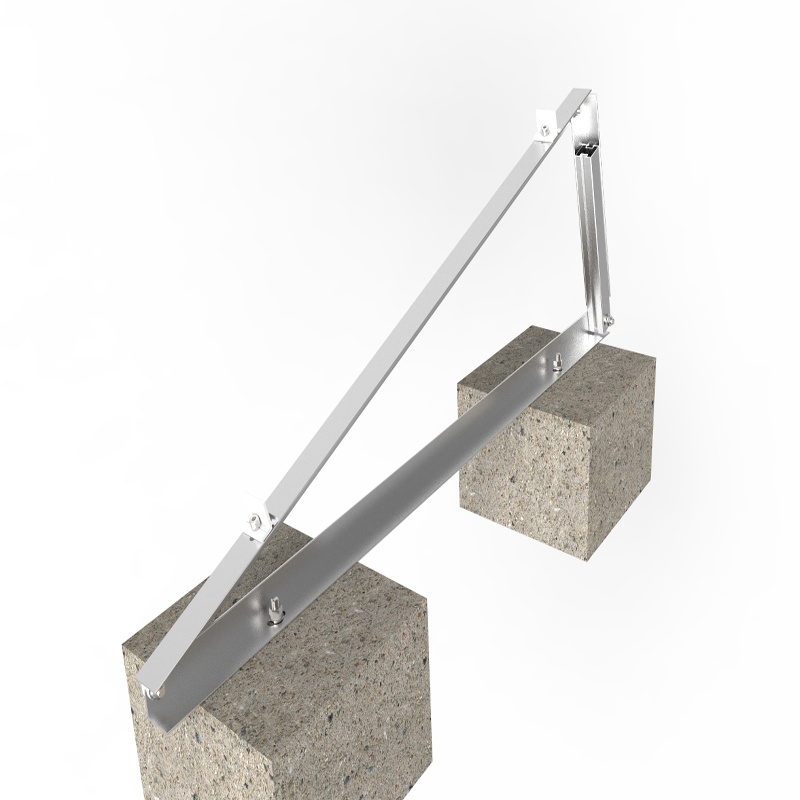

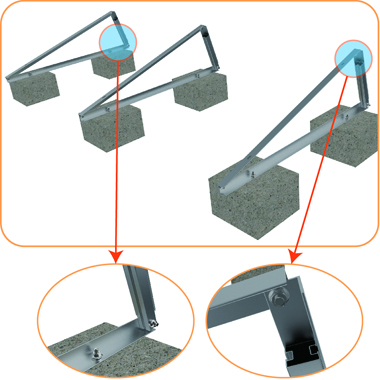

Step1：Install triangle according to the drawing Step2：Install roof rails and rail splices
Install expansion bolt Install triangle Rail clamp Rail splice

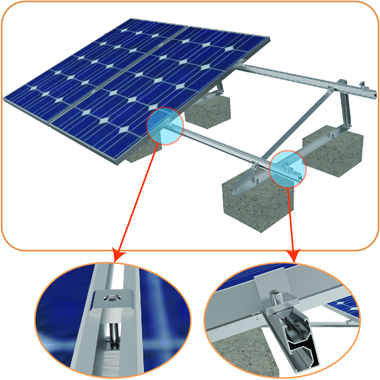

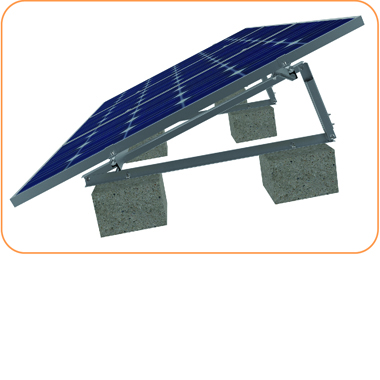

Step3：Fasten panel by inter clamps and end clamps Step4： Installation completion diagram
Inter clamp End clamp
