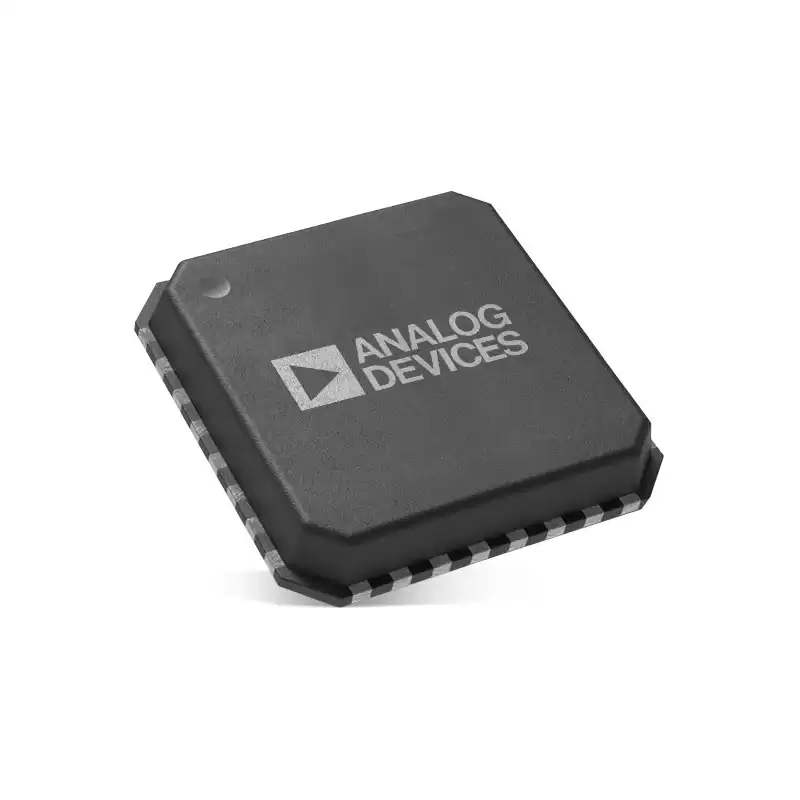

ADRF5021BCCZN ADI RF Switch ICs
Parameter
| Manufacturer |
Analog Devices Inc. |
| Product Category |
RF Switch ICs |
| Series |
ADRF5021 |
| Mounting Style |
SMD/SMT |
| Package / Case |
LGA-20 |
| Minimum Frequency |
9 kHZ |
| Maximum Frequency |
30GHz |
Supply Voltage - Min
|
3 V
|
Supply Voltage - Max
|
5.4 V
|
Packaging
|
Cut Tape
|
Moisture Sensitive
|
Yes
|
Number of switches
|
Dual
|
Product Type
|
RF Switch ICs
|
Package Quantity (Bag/Roll/Tray/Tube)
|
500 pcs
|
Subcategory
|
Wireless & RF Integrated Circuits
|
Unit Weight
|
0.000847 oz
|
Introduction
The ADRF5021BCCZN features a compact 4 mm x 4 mm surface-mount package and operates using a single supply voltage of 3.3 V to 5 V. The chip also incorporates an integrated decoder that allows for easy control of the switch using a simple three-wire interface.
Overall, the ADRF5021BCCZN is a versatile and high-performance RF switch that offers excellent performance and reliability for a wide range of applications.
Application
The ADRF5021BCCZN is widely used in various industries, including wireless communication, aerospace, military, and test and measurement. It is commonly used in applications such as cellular base stations, satellite communication systems, radar systems, and spectrum analyzers. The high linearity and low insertion loss of the switch make it an ideal component for signal routing and switching in these applications. Additionally, the compact size and low power consumption of the ADRF5021BCCZN make it well-suited for use in portable and battery-powered devices.
