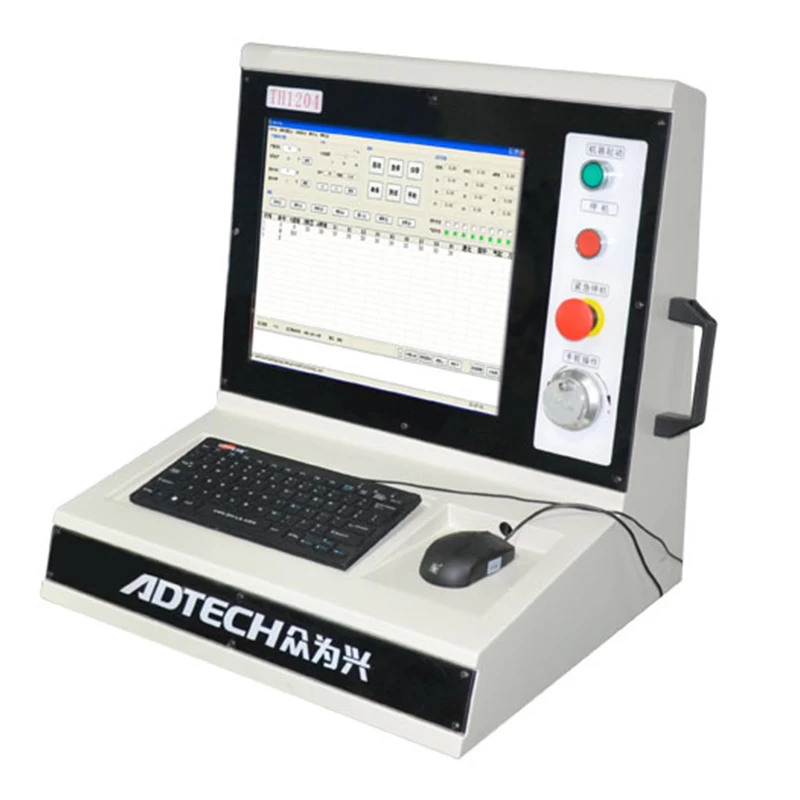

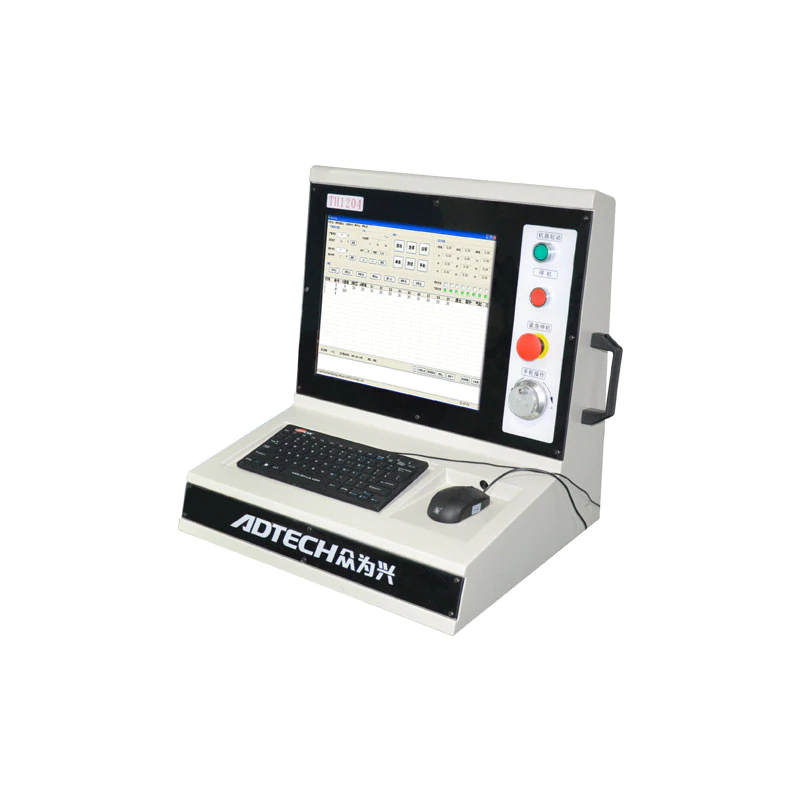

ADTECH ADT-TH1204 12 Axis Controller for Spring Machine
Product characteristic
(1) 17-inch industrial color liquid crystal with resolution of 1280*1024 is employed;
(2) Each axis can be independently configured, maximum of twelve axes can be selected, addition and removal of axes can be freely carried out, and linear interpolations of maximum of twelve axes are supported;
(3) Inspection function for software limit and hardware limit is provided to ensure machine's safe operation;
(4) Teaching function is provided for hand wheel or hand-held box to facilitate programming;
(5) Various zeroing modes can be selected to adapt to different requirements on machine hardware;
(6) Zeroing sequence is configurable and each axis can be concurrently or sequentially zeroed;
(7) Total of eight groups of cylinder probe can be used for program control;
(8) Real-time information tips and record to offer convenience for debugging and troubleshooting;
(9) Abundant information windows are provided to check IO port status, shortcut key tips and help documents;
(10) Various S, M, E, J, G, L, N, etc. command programming is available to facilitate study and usage;
(11) Automatic machining and hand wheel machining are allowable, which modes can be freely interchanged. (8) Online programming function can be applied;
(12) Linear mode is with precision of 0.01mm and rotary mode is with precision of 0.1 degree;
(13) Each axis is provided with independent homing function.
Table 1 System fittings
|
Item name
|
Description
|
Quantity
|
Remark
|
|
Motion control card
|
ADT-8912A1
|
1 set
|
Mandatory
|
|
IO control card
|
ADT-IO7142
|
1 set
|
Mandatory
|
|
Industrial personal computer
|
GT6150WM
|
1 set
|
Mandatory
|
|
Twelve axis spring machine controller
|
TH1204-A00
|
1 set
|
Mandatory
|
|
Hand-held box
|
ADT-CNC4A
|
1 pcs
|
Optional
|
