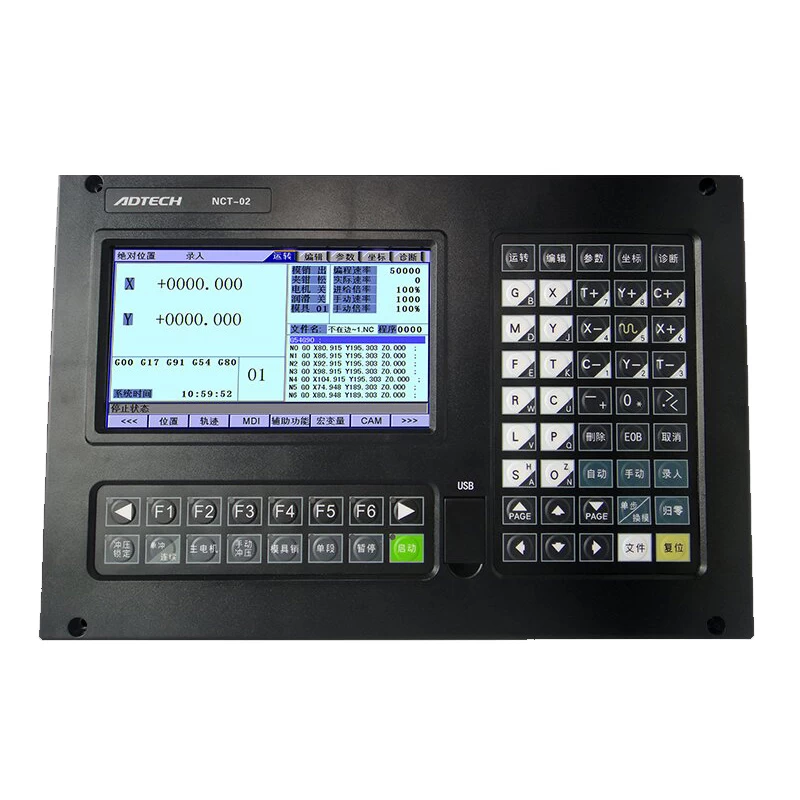

NCT-02 Two Axis Punching CNC Controller
Two Axis Punching CNC Controller is for CNC punching machinery,Support multi-language option,
With CAM template guide edit function,easy to use. Support CAM file resolving process.
Function Specification
1. Control axis number X, Y, T, C four axis micron level interpolation accuracy;
2. USB, U disk, RS232COM communications and other communication methods, easy to help users to achieve different data transmission requirements and software upgrades;
3. Perfect self diagnosis function, internal and external status real-time display, abnormal immediately alarm;
4. CAD graphics automatic conversion processing procedures, CAM graphics library functions, there are a variety of commonly used graphics;
5. According to the program code automatically generated processing track, machining process to track the actual location;
6. Breakpoint memory function, program exceptions can be selected from the breakpoint to continue processing;
7. Two hand punching machine die change system, when the program is for instructions and prompts the system to suspend mode need to replace the mold;
8.Mold rotating function, you can press the complex shape, automatic angle optimization;
9. With input / output module, I/O points can be extended;
10. Maximum fast moving speed up to 60 m / min, the maximum feed rate of up to 30 m / min;
11. Power save function, password protected screen saver function etc.
12. Support two relocation function and clamp avoidance function, realize the plate without dead time processing.
13. Fully compatible with CAM and other PROCAM software, and additional punch special composite directive CAM wizard punching instruction programming, can be directly used to fill in the hole information directly to start processing
for punching;
14. DXF+G code template graphics resolution, can be directly converted to CAD files for processing files, without the need to encrypt the dog support;
15. Support the powerful B macro analysis function, to facilitate users to develop their own motion control program.
Feature:
-
Add T axis die change control and C axis die rotary control.
-
Max support 36 working position, can customize mould library.
-
Easy to learn, friendly interface, convenient operation.
-
Can preview process track and real-time following.
-
Support twice relocation and clamp avoid function, realize palte no dead zone process.
-
With single punch, continuous punch, step punch etc. different kinds of punching mode, increase the process efficiency.
-
Can recognize CAD convert code, compatible with usual punching machine software code, support CAM template programming.
-
With complete self-diagnostic function, internal and external real-time display, it will show alarm if any exception.
Optional Spare Parts:
(Handheld box-CNC4A) (Additional panel- FCNC4M)
Feature:
-
Support X Y 2 axis motion.
-
Easy to learn, friendly interface, convenient operation.
-
Can preview process track and real-time following.
-
Support twice relocation and clamp avoid function, realize palte no dead zone process.
-
With single punch, continuous punch, step punch etc. different kinds of punching mode,
-
increase the process efficiency.
-
Can recognize CAD convert code, compatible with usual punching machine software code, support CAM template programming.
-
With complete self-diagnostic function, internal and external real-time display, it will show alarm if any exception
