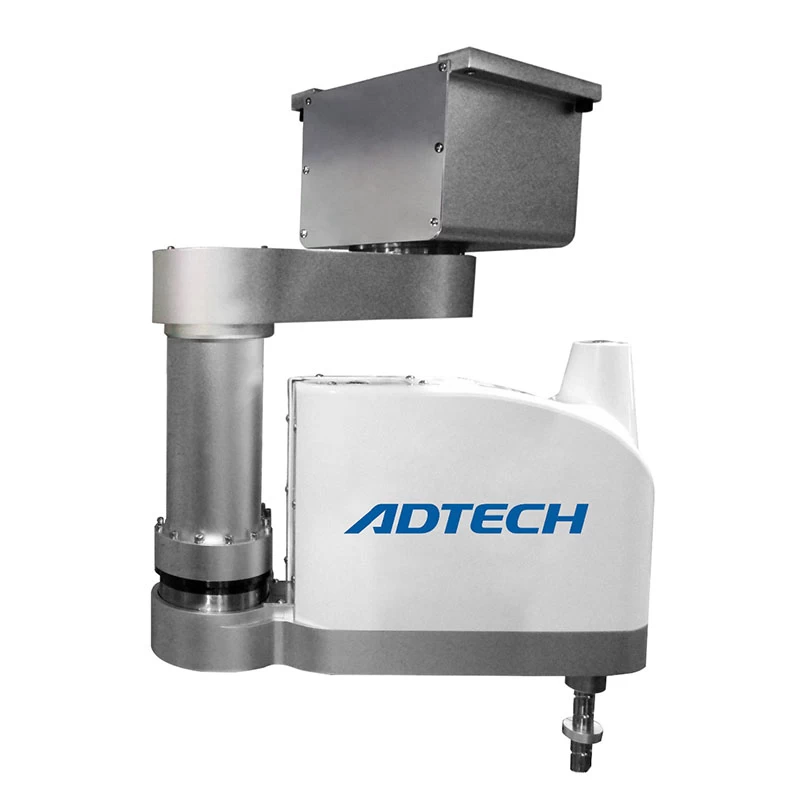

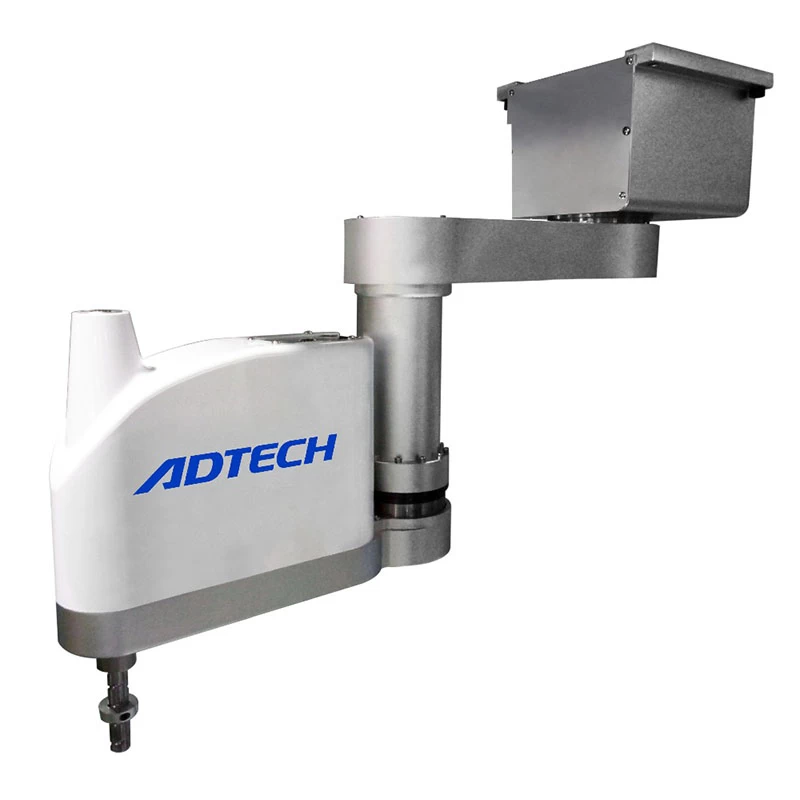

ADTECH FR5215 550mm Arm Length 4 Axis Hoisting Scara Robot

Industrial robot manufacturer in China with cheap price ADTECH FR5215 system 5500mm arm length 4 axis hoisting scara robot with AVS vision system. ADTECH is professional in 4-axis Scara robot R&D, producing and service. For reduce products people cost. More and more robot is used on production line.ADTECH scara robot can replace NACHI,TOSHIBA,etc. Japan brand, It is application for PCBA assembly,screwing loading,packing,etc electrical field.



Industrial robot manufacturer in China with cheap price ADTECH FR5215 system 5500mm arm length 4 axis hoisting scara robot with AVS vision system. ADTECH is professional in 4-axis Scara robot R&D, producing and service. For reduce products people cost. More and more robot is used on production line.ADTECH scara robot can replace NACHI,TOSHIBA,etc. Japan brand, It is application for PCBA assembly,screwing loading,packing,etc electrical field.

Model: ADT-FR5215 Type: 4 axis Scara Robot

Number axis 4 -axes
Axis specification X-axis arm's length 500mm
Rotating range ±360°
Y-axis arm's length 300mm
Rotating range ±360°
Z-axis travel 150mm
A-axis rotation range ± 360 °
Max. speed X-axis 517 °/s
Y-axis 374.3 °/s
X,Y axis synthesis 6.9 m/s
Z 1.3 m/s
R 1666.7 °/s
Standard cycle period 0.45s
Repeat positioning accuracy X,Yaxis ±0.025mm
Z ±0.01mm
R ±0.005°
Max load / Rated load 2/5kg
R-axis allowed load inertia Max inertia 0.005 kg.m^2
Rated inertia 0.035kg.m^2
User signal line 0.12sqx16 line, 8 channel input and 8 channel output
User φ 4x2 pipe line φ 4x2 pipe line
Limit protection 1, software limited 2, mechanical limit (x, y, z axes)
Protection class IP41
Weight 21Kg
