Main Parameter
1、Overall size：35.3m×10.5m×3.5m (for reference only)
2、Machine Size：31.5mx2.6m×3.5m
3、Design speed：350 pcs per minute
4、Stable work speed：200-300 pcs per minute
5、Rejection rate：≤2%（excluding scrap caused by hot melt，materials splicing or joint）
6、Power source：380V，50/60HZ（3phase，Alines+ground wire）
7、Machine capacity：450KW approximately
8、Air pressure：0.6-0.8Mpa
9、Machine weight：93Tons approximately
Configuration
1、Product structure:Leak cuff hydrophobic non woven. Top sheet hydrophilic non woven. ADL，Cotton core（SAP mixed)，Side tape，Waistband，Frontal tape，Back sheet.
2、Product size:（mm) M：680×450 L：800×650 XL：950 ×760 ( to be customized )
3、Program system: Servo driven，intelligent HMI touch screen man-machine interface.
4、Tension system: Tension control with buffer system，automatic web guiding system，to ensure materials stable working at ZERO speed splice.
5、Driven system: Servo drive，digital size change，ensure run synchronously at full process.
6、Safety system: Safety guard for operating side，emergency stop switch，security identifier，safety pull wire at driven side.
7、Packaging system: Auto stacker（dual push dual exit）and auto bagger to be defined by customer need )
8、Web guiding system: Germany BST/USA FIFE.Customized function available

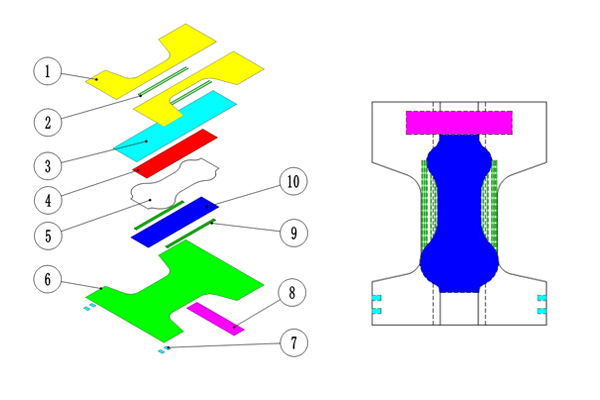

Product structure
|
1.Hydrophobic non woven
|
6.PE film back sheet
|
|
2.Leak elastic
|
7.Side tape
|
|
3.Top sheet non woven
|
8.Frontal tape
|
|
4.Upper tissue
|
9.Leg elastic
|
|
5.Cotton core(absorbent paper)
|
10.Lower tissue
|
