Product Item:Advanced Alumina Ceramic Pump/Shaft
Application:
|
High pressure pump
|
Piston pump
|
|
Metering pump
|
Liquid pump
|
|
Dosing pump
|
Filling pump
|
|
Car
|
Electronic
|
|
Cosmetic
|
Medicine
|
|
Medical Technology
|
|

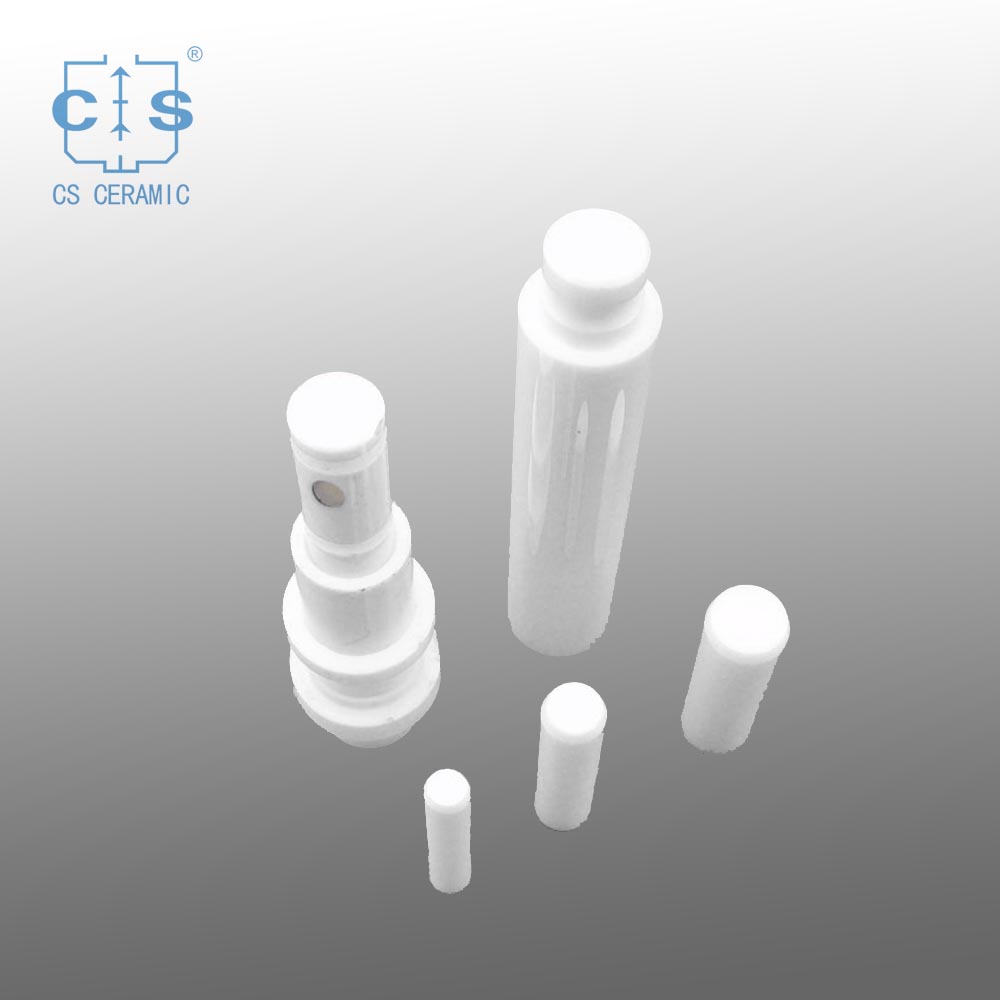

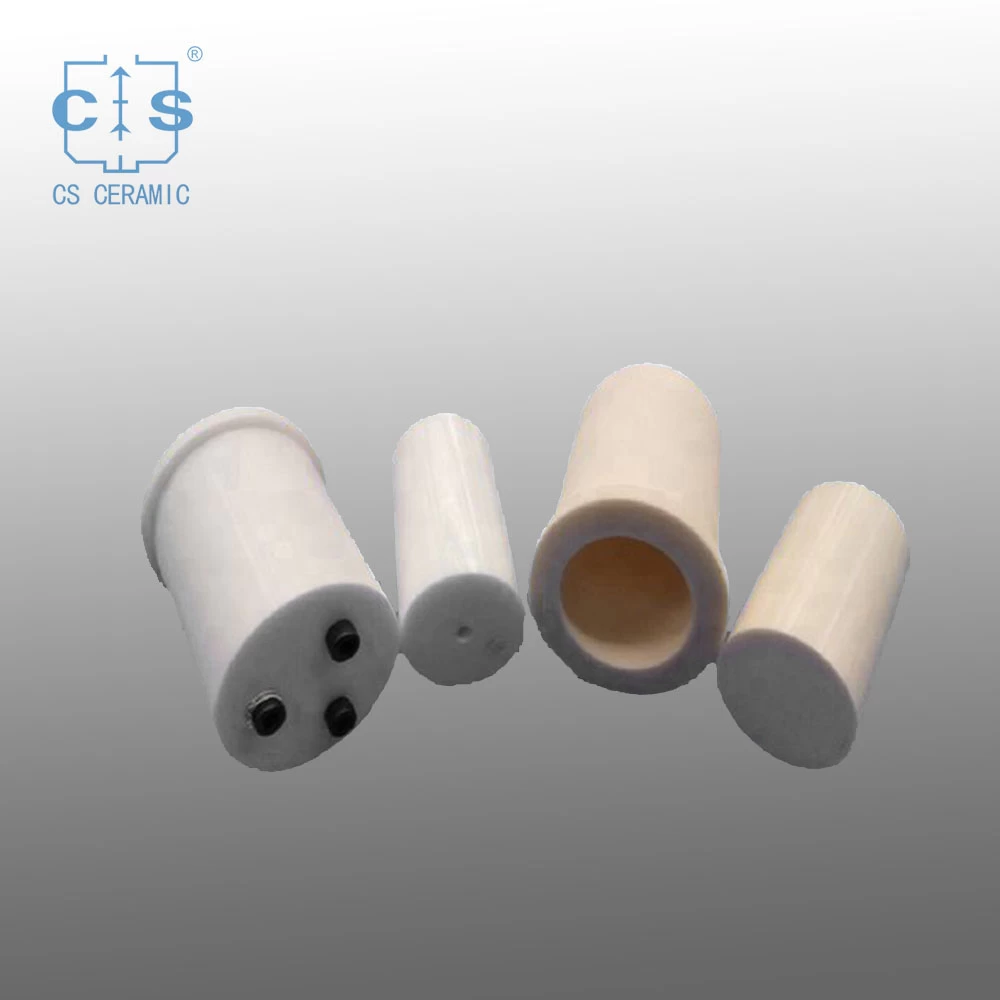

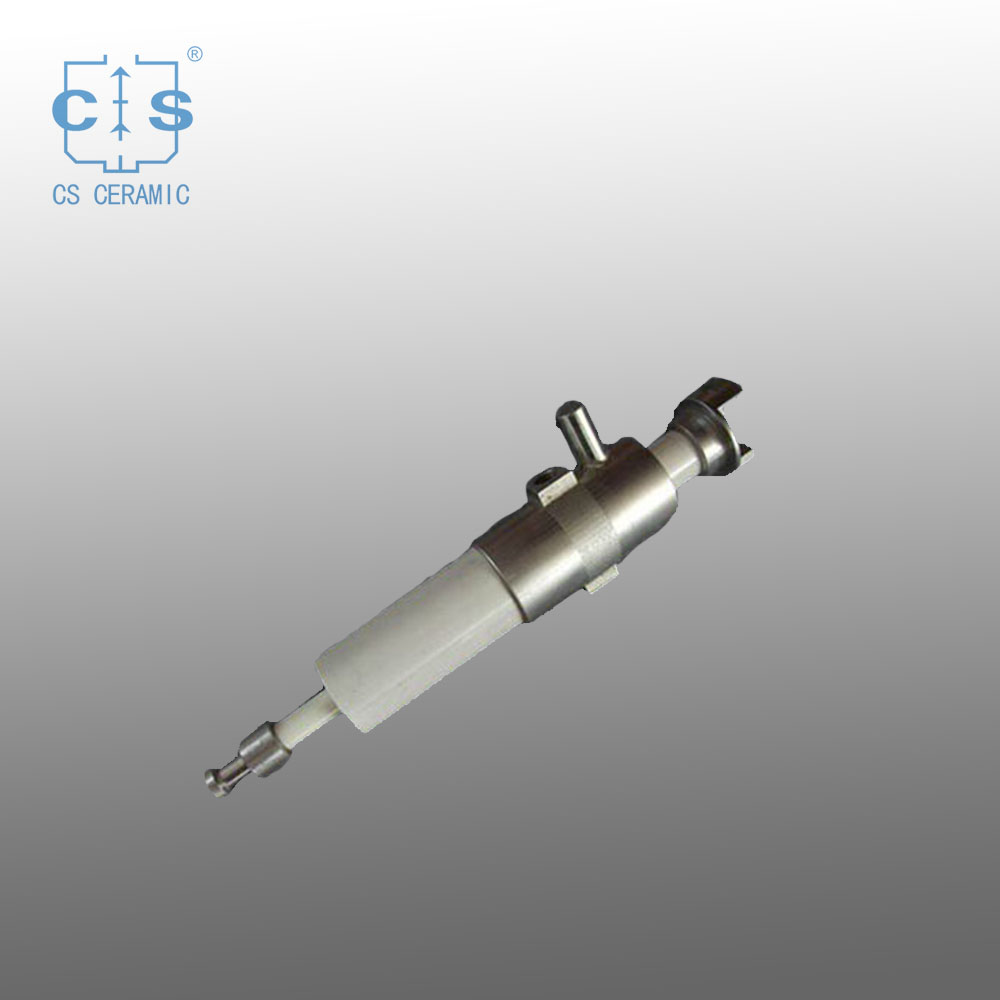

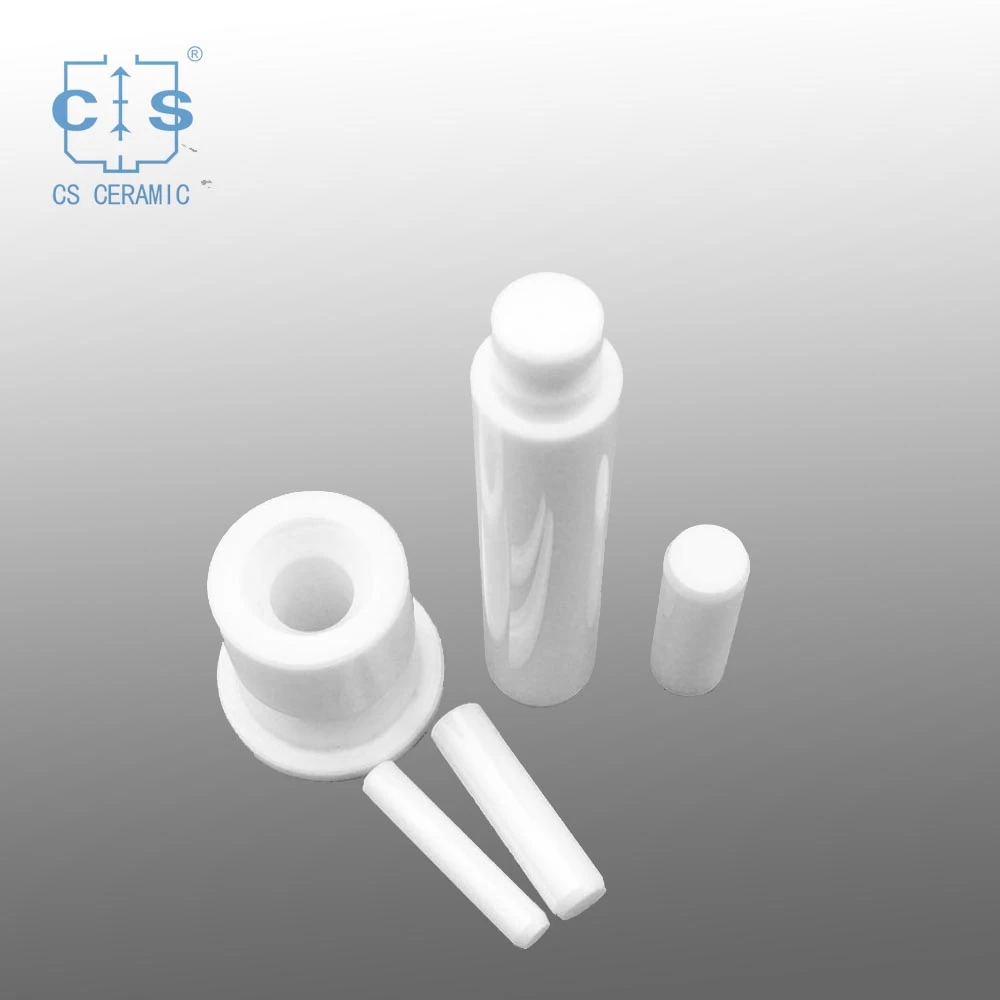

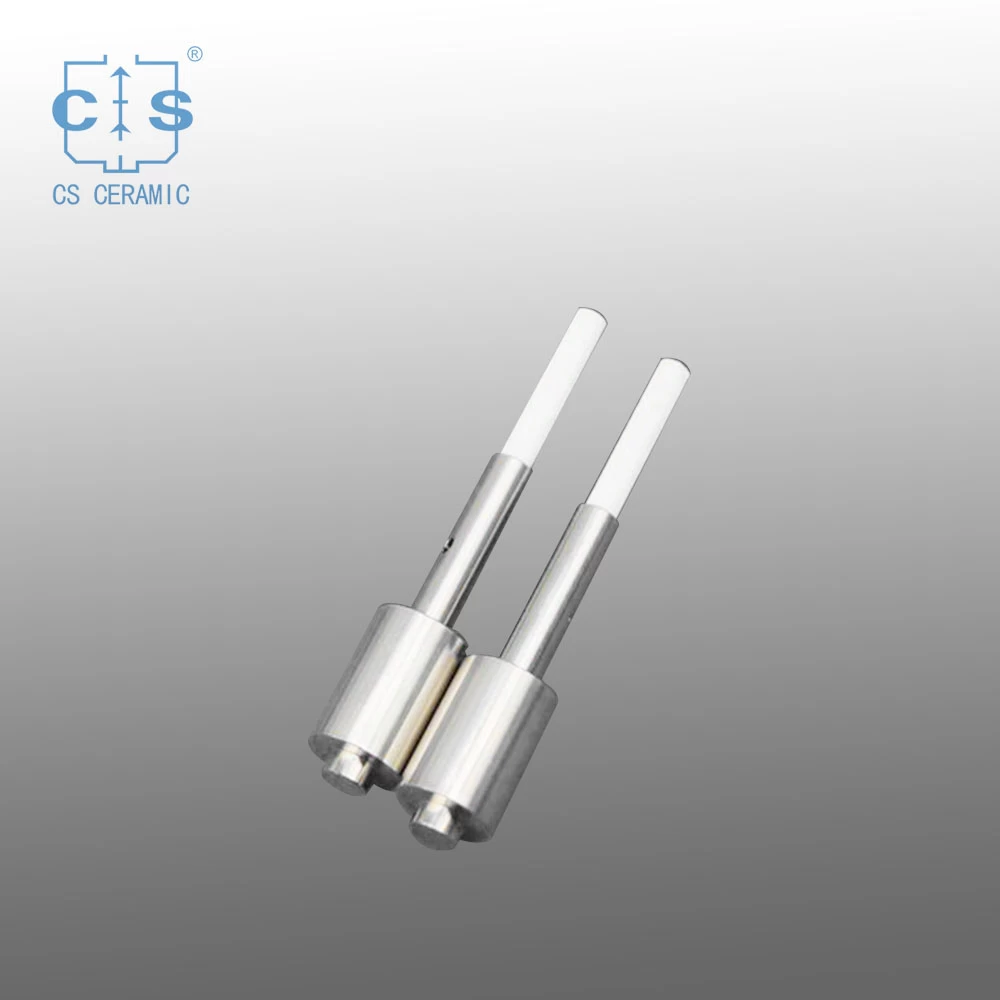

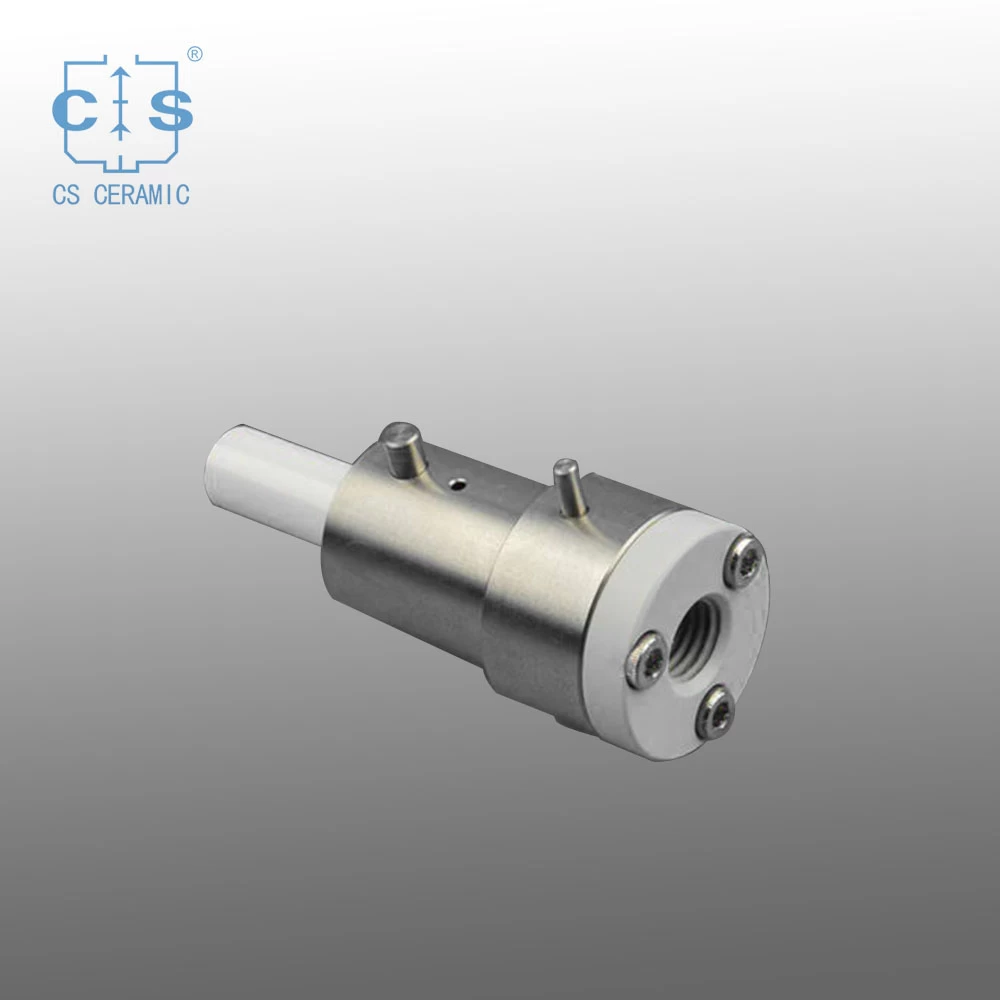

Ceramic pump components:
Pump Sleeves, Shafts, Sleeve Bearings / Seals, Flanges, Piston, Plunger rod, Bushings.
The ceramic pump has high precision measurement accuracy,easy disassembly, installation, disinfection and cleaning, etc
High-Tech Advanced Ceramic Pump Series
Ceramic pump adopts high performance technical ceramic material, which is assembled by ceramic metallization bonding, welding, Mosaic and socket technology.
Wide Useage of Ceramic Pump:
1. Liquid filling machines, such as BOSCH, B+S, GROENINGER, made in Germany, Italy, America and Japan.
2.Pharmaceutical: Topicals and parenterals: injectable in vials, ampules, syringes, enema… Enterals: syrups, capsules, drop…
3. Liquid food: Beer, beverage, dairy, wine, edible oil…
4.Cosmetics: Perfumes, lotions, creams, pastes, shampoo and make-up...
5. Others: ink, reagents, chemicals.
Pump Properties :
wear resistance
super strength
ultra-hard
high temperature resistance (refractory)
super corrosion resistance
never rust
antioxidant
insulation
environmental protection
OEM drawing :
Technical reference
|
CS Ceramic's products accuracy
|
|
Shaft part:
|
0.0015mm for axial dimensions
|
|
0.001mm for circular degree
|
|
0.0025mm for concentricity
|
|
0.01 for roughness
|
|
The minimum processing aperture:
|
0.3mm, and depth limit 3mm
|
|
0.002mm for axial dimensions of diameter 1mm aperture
|
|
0.02~0.04 for roughness
|
|
Tolerance of plane processing:
|
0.002 for flatness
|
|
0.0015mm for measuring tolerance
|
|
Ceramic processing thread:
|
processing internal thread size limit M2
|
|
Thread accuracy gb-7h
|
|
Unlimited size for external thread
|
|
Thread accuracy gb-6g
|
Why choose CS CERAMIC
6 Steps Inspection Processes
15+ Years Oversea Market experience
30+ Years Manufacturer
300+ Members Professional Team
8000+ Kinds of alumina ceramic parts in Stock
Shipping：We do international shipping .
OEM : All sizes can be customized,Can be made into various of complex shapes, high dimension accuracy.
Please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
