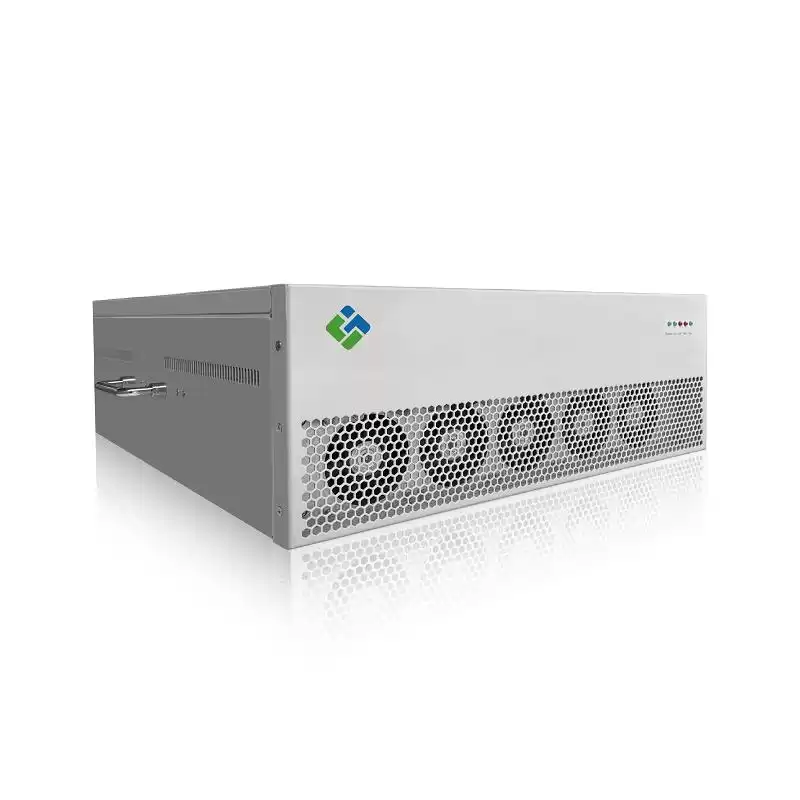

YT-PQC-ASVG Advanced SVG

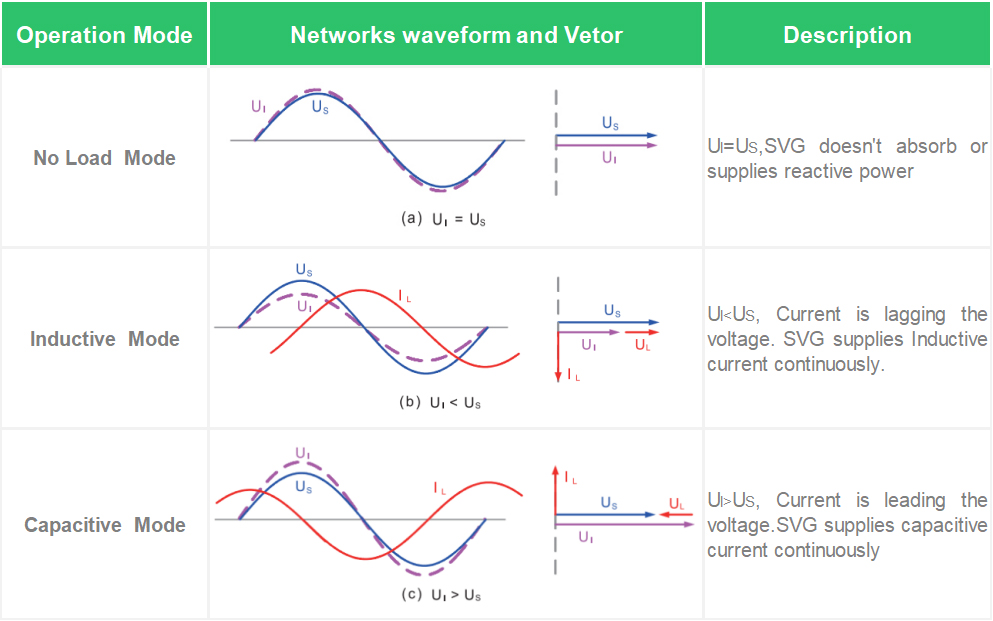

YTPQC-ASVG Advanced SVG (ASVG) detects load current in real time through internal and external CT and analyzes the reactive current of load by TI DSP and FPGA, then generates PWM signal to IGBT inverter(3 Level) to generate inductive or capacitive current and compensate reactive current to realize the target power factor. YTPQC-ASVG can also compensate phase imbalance and harmonics.
Compared with the traditional capacitor bank, YTPQC Advanced SVG has the advantages of fast response and high compensation accuracy without under-compensation or over-compensation problems, avoid resonance, etc.

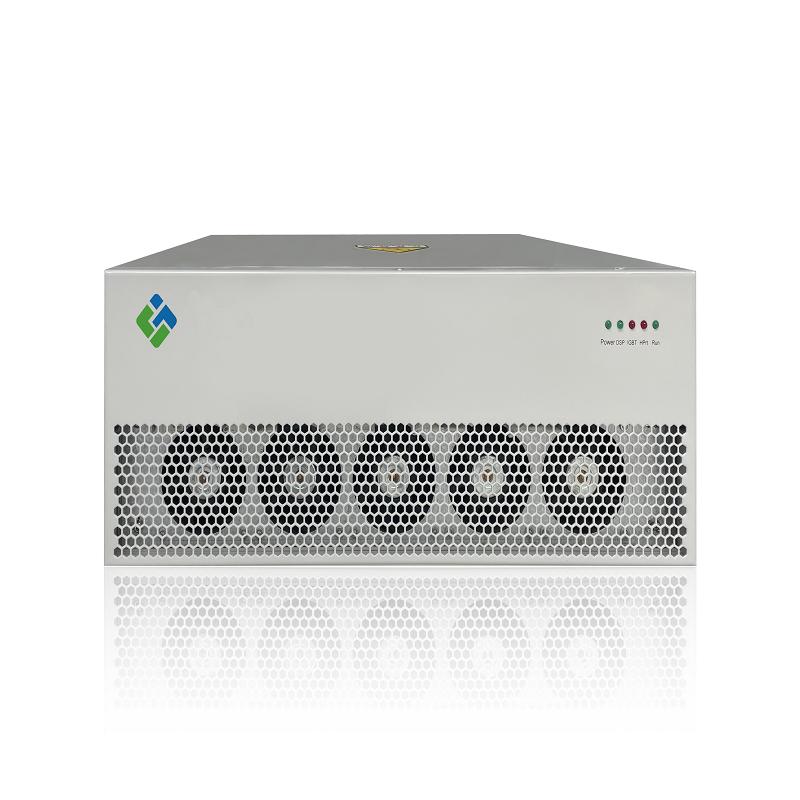

Modular Design
YTPQC series Advanced Static Var Generator has a advanced modular design. Usually YTPQC-ASVG consists of one or several Advanced SVG modules and an optional touched LCD Human Machine Interface. Each Advanced SVG module is an independent and dynamic reactive power compensation system, and users can change the SVG rating by adding or removing ASVG modules.

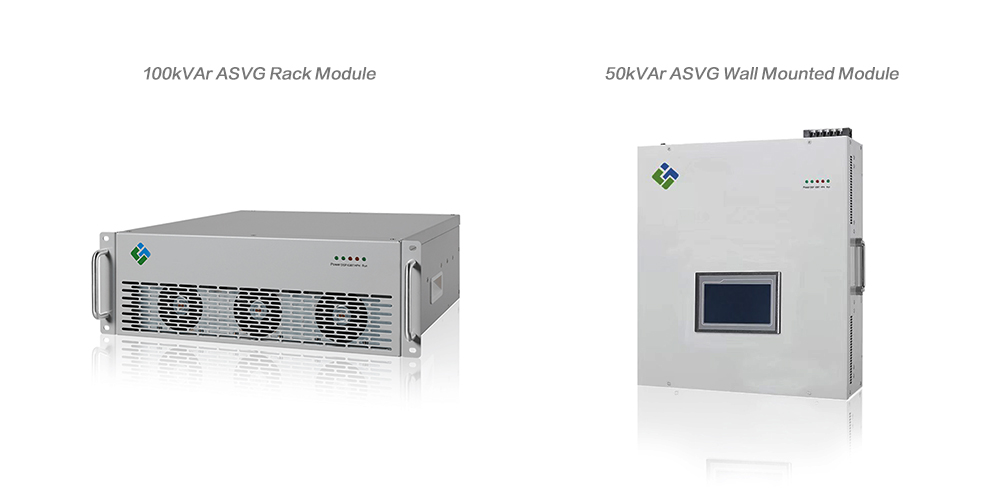

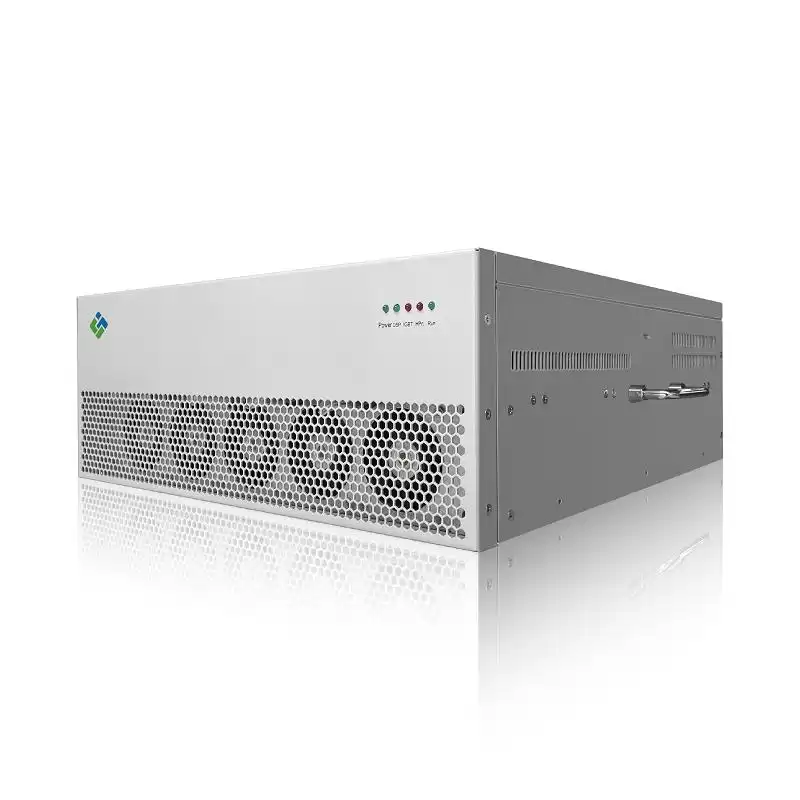

According to the mounting type, YTPQC Advanced SVG can be divided into Rack Modular ASVG,Wall-mounted ASVG and free landing ASVG.
Model Description
YTPQC-ASVG Advanced SVG Module series cover from 10kVAr to 100kVAr, support wall mounted type, rack type, free landing modules.
| SN |
Item |
Rated Capacity
|
Factory Model |
Dimensions
(W*D*H,MM)
|
N.W.
(KG)
|
Packing Size
(W*D*H,MM)
|
G.W.
(KG)
|
| 1 |
ASVG |
10kVAr |
YTPQC-ASVG/10-4-4L-RW |
360*402*125 |
20 |
740*690*445 |
25 |
| 2 |
ASVG |
15kVAr |
YTPQC-ASVG/15-4-4L-RW |
360*402*125 |
20 |
740*690*445 |
25 |
| 3 |
ASVG |
30kVAr |
YTPQC-ASVG/30-4-4L-RW |
505*550*190 |
34 |
740*690*445 |
40 |
| 4 |
ASVG |
50kVAr |
YTPQC-ASVG/50-4-4L-RW |
505*550*190 |
35 |
740*690*445 |
41 |
| 5 |
ASVG |
75kVAr |
YTPQC-ASVG/75-4-4L-RW |
505*570*280 |
53 |
740*690*445 |
63 |
| 6 |
ASVG |
85kVAr |
YTPQC-ASVG/85-4-4L-RW |
505*570*280 |
54 |
740*690*445 |
64 |
| 7 |
ASVG |
100kVAr |
YTPQC-ASVG/100-4-4L-RW |
505*570*280 |
55 |
740*690*445 |
65 |
