Warranty:
1.We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!
Quick Detail:

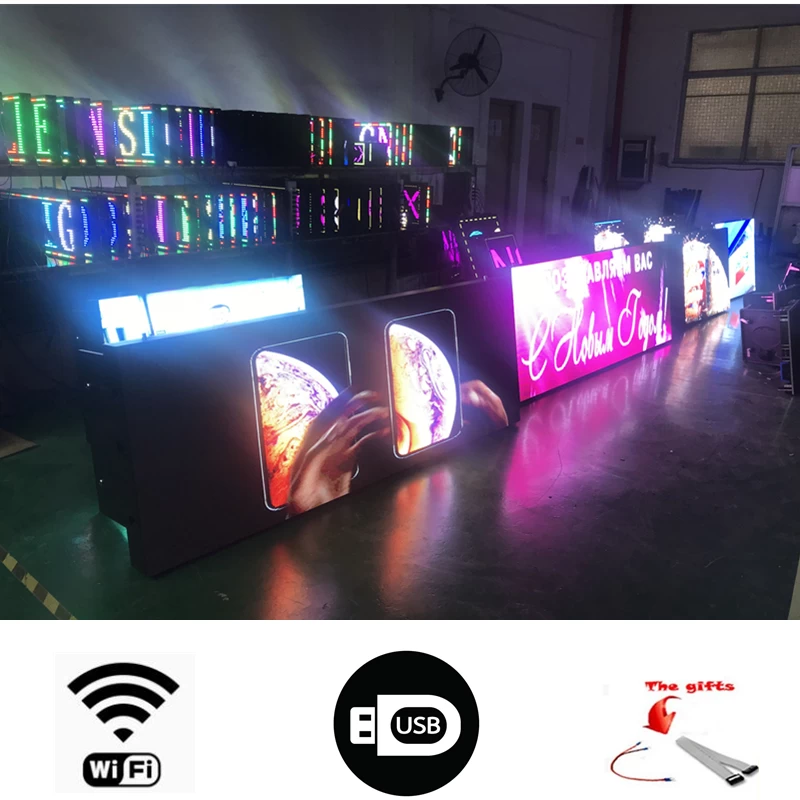

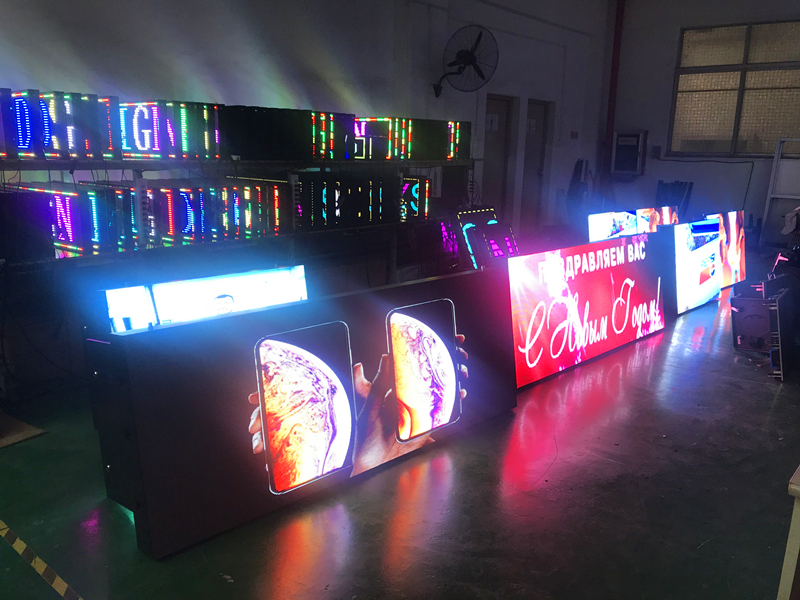

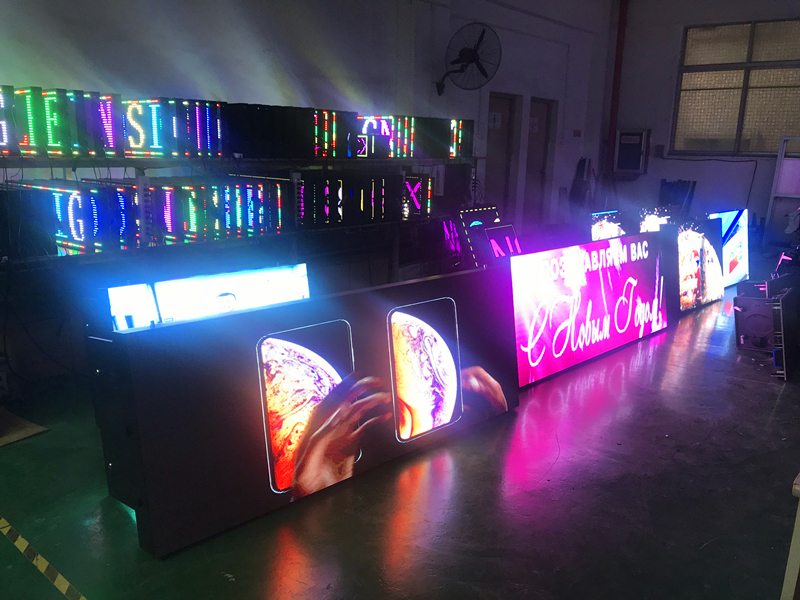

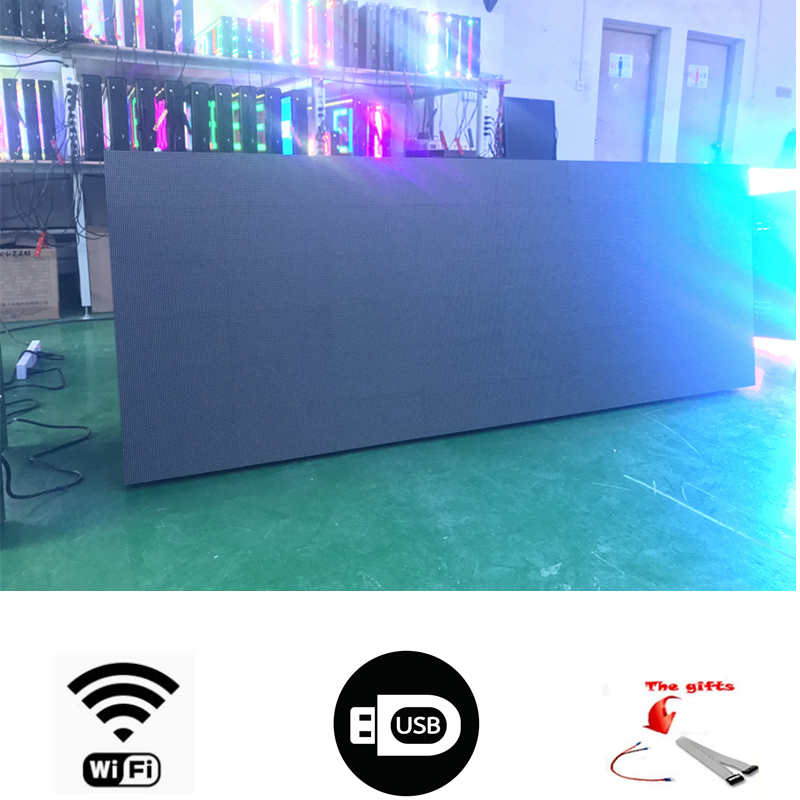

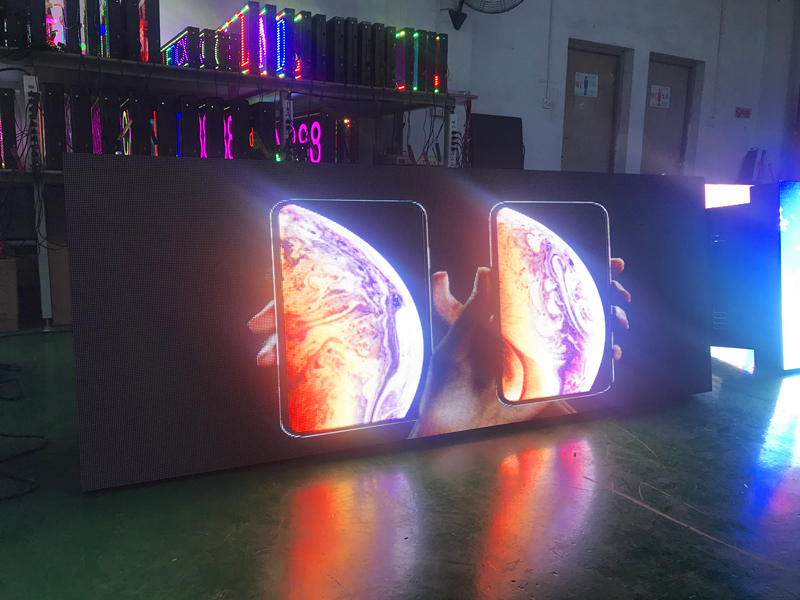

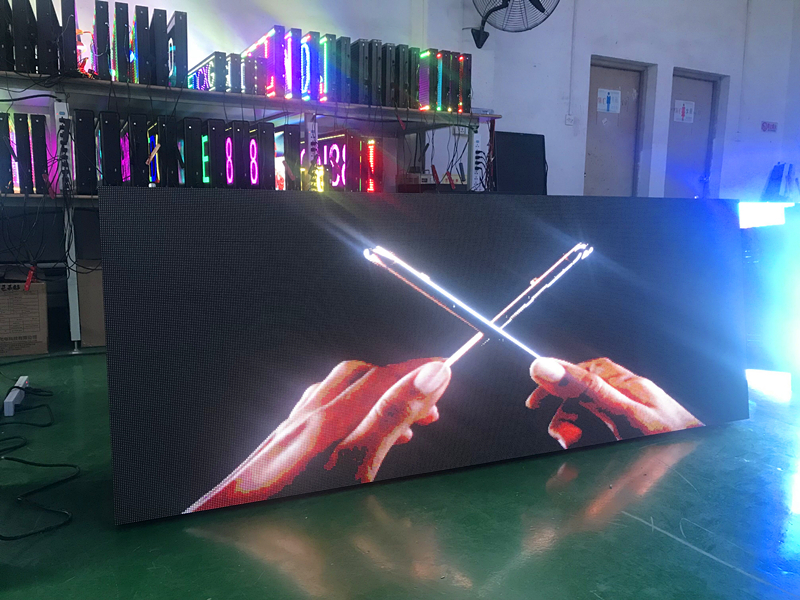

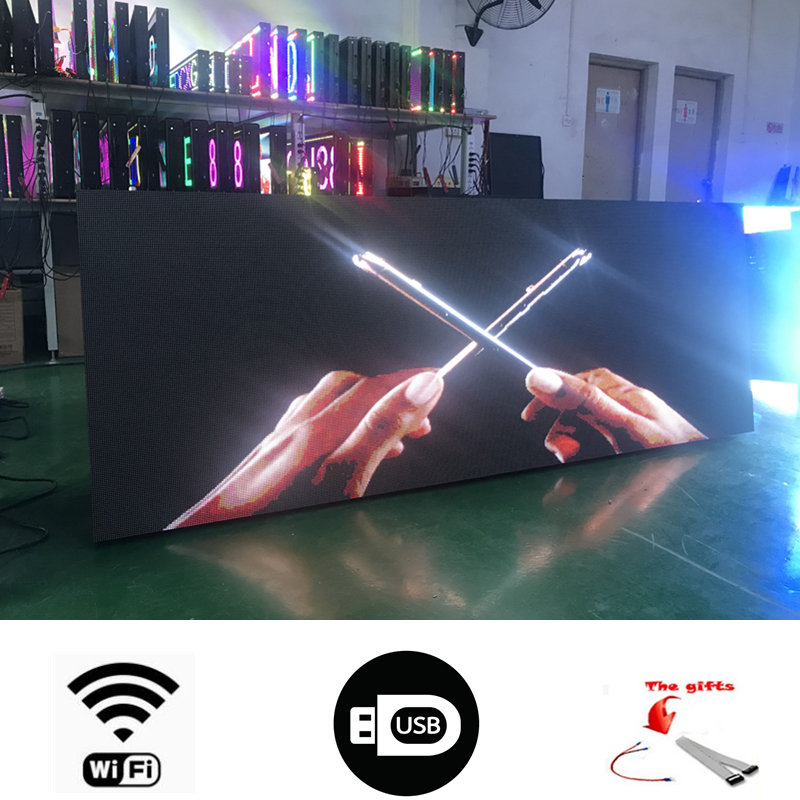

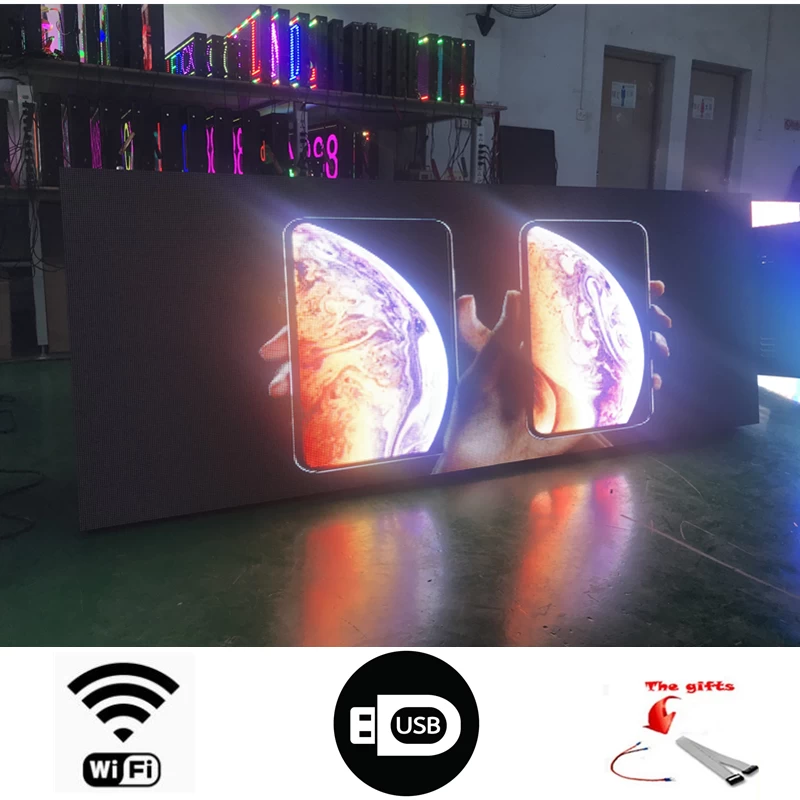

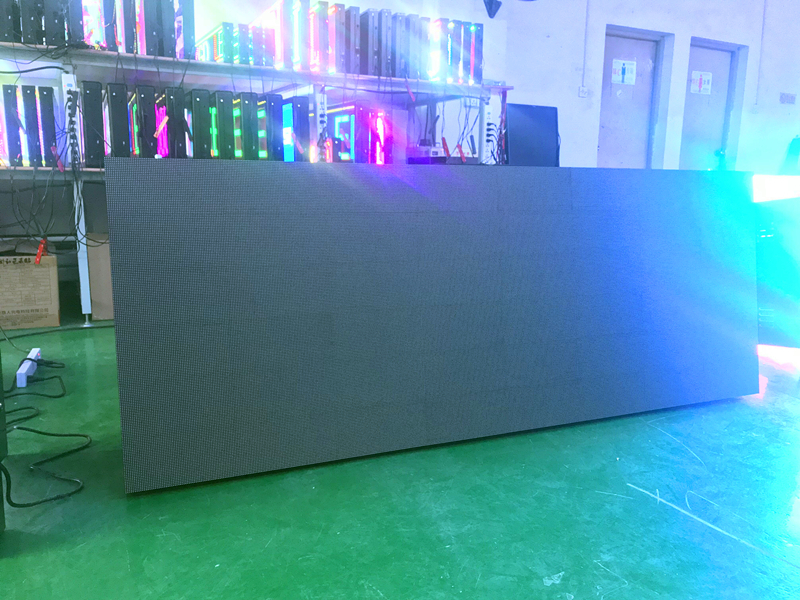

1. 2.304x0.768 m screen size;
2. Iron waterproof cabinet with frame and hydraulic lever;
3. 384x128 pixels;
4. SMD3535 LED;
5. power supply with CE/CB/UL;
6. About 6,000 nits.
Specifications:
|
Type
|
PH6
|
|
LED Encapsulation
|
Nationstar
|
|
Module Pixel
|
W 32 × H 32
|
|
Module Size
|
W 192 × H 192 mm
|
|
Screen Size
|
W 2304 × H 768 mm
|
|
Whole Size
|
W 2304 × H 768 mm
|
|
Service Method
|
Back
|
|
Cabinet Color
|
Black
|
|
Cabinet Material
|
Iron waterproof cabinet with frame and hydraulic lever
|
|
Drive Method
|
1/8 scan constant current
|
|
Brightness
|
6000 nits
|
|
Power Supply
|
YOUYI
|
|
Drive IC
|
SM16106
|
|
Earth Leakage Current
|
＜2mA
|
|
MTBF
|
＞5,000 hours
|
|
Life Span
|
＞100,000 hours
|
|
Control Method
|
asynchronization and synchronization
|
|
Controller
|
HUIDU
|
|
Operation Software
|
HUIDU
|
|
Warranty
|
2 years
|
