Aerial bundle cable, ABC cable, xlpe insulated ABC cable, LV ABC cable.

PRODUCTION APPLICATION

Hante brand Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional over-head bare conductor distribution system.It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.

Hante brand Low Voltage Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.This overhead cable provides reinforced insulation according to IEC 61140 and fulfill therefore Class II according to IEC 61140. It is not flame retardant. But this could be if requested change to a flame retardant cable.

PRODUCTION ADVANTAGES

• Relative immunity to short circuits caused by external forces (wind, fallen branches), unless they abrade the insulation.
• Can stand in close proximity to trees/buildings and will not generate sparks if touched.
• Little to no tree trimming necessary
• Simpler installation, as crossbars and insulators are not required.
• Ease of erection and stringing, less labor intensive, less construction resources needed.
• More aesthetically appealing.
• Can be installed in a narrower right-of-way.
• At junction poles, insulating bridging wires are needed to connect non-insulated wires at either side. ABC can dispense with one of these splices.
• Less risk of a neutral-only break from tree or vehicle damage, increasing safety with TNC-s systems.
• Significantly improved safety for lines-persons, particularly when working on live conductors.
• Electricity theft is made harder, and more obvious to detect.
• Less required maintenance and necessary inspections of lines.
• Improved reliability in comparison with both bare conductor overhead systems and underground systems. Insulated conductors prevent accidental contact and supply can be maintained temporarily in the event of a suspension system collapse.

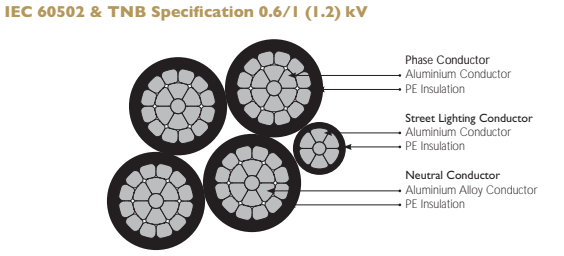

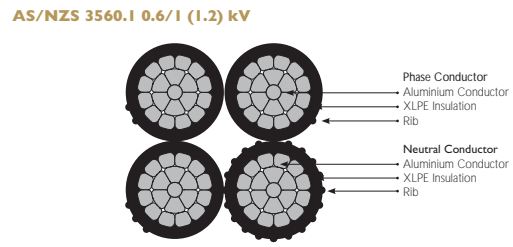

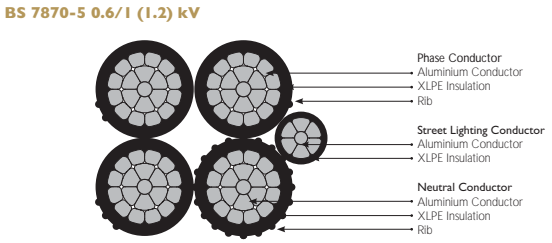

PRODUCTS STRUCTURE

---Conductor Material

   Aluminum wire, aluminum alloy wire.

---Insulation Material

   PVC (polyvinyl chloride), PE (polyethylene) or XLPE (cross-linked polyethylene)

---Sheath Material

   Non-sheath

---Core Number

    2C, 3C, 4C.

---Working Temperature

   -10℃～+70℃.

---Installation Temperature

    0℃ ～+40℃

---Minimum Bending Radius

    20 x Overall Diameter.

---Production Standard

    GB/T 12527-2008, GB/T 14049-2008, IEC 60502, BS 7870, AS/NZS 3560, ASTM B-230, ASTM B-231, SANS 1418.

---Product Packing

    Wooden drum.

---Product MOQ

   10000 meters.

---Production Delivery

   Within 10-20 working days as soon as we received the deposit.

PRODUCTS STRUCTURE

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication.

---When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
