Aerial Working Trucks ISUZU

Aerial Lift Work Trucks,Bucket Trucks,Aerial lift truck,Telescoping Boom Aerial Platform truck, Articulating Boom Aerial Platform truck,truck mounted aerial platforms,



22M~26M Aerial Working Platform Truck ISUZU

22M~26M Aerial Working Platform Truck ISUZU

Function:

Aerial Working Truck Isuzu (also called overhead working truck, Man lift truck, Aerial platform, Truck mounted aerial working platform, Aerial beamlift truck, Skylift truck, Platform truck for aerial working, Boom lift truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.



Features:

---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Similar Key Words:  Aerial work platform, bucket crane trucks, Hydraulic beam lifter, Man lift truck, Hydraulic lifting platform, bucket boom trucks


 Man Lift Working Truck ISUZU (22M~26M)
General Vehicle Brand POWERSTAR
Chassis Brand ISUZU
Overall Dimension 11350 x 2500 x 3870 mm
GVW / Kerb Weight 25,000 kg / 10,750 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 6HK1-TCG40
Power 280Ps (206KW)
Displacement 7790 ml
Emission Standard Euro IV
Chassis Drive Type 6X4, left hand drive
Transmission 9JS119TA transmission, 9-forward gears & 1 reverse, no overhaul within 500,000km
Wheelbase/No. of axle 4000+1300 mm / 2
Tyre Specification 12.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 22 m~26 m
Beam The beam is articulated & telescopic extension type, hydraulic actuated and controlled
Slewing Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
Control Control both on the ground and remote control in cage
Safety Device Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
Leveling System Hydraulic stabilizer to level the vehicle on uneven ground
Optional Insulated cage; Wireless remote control system

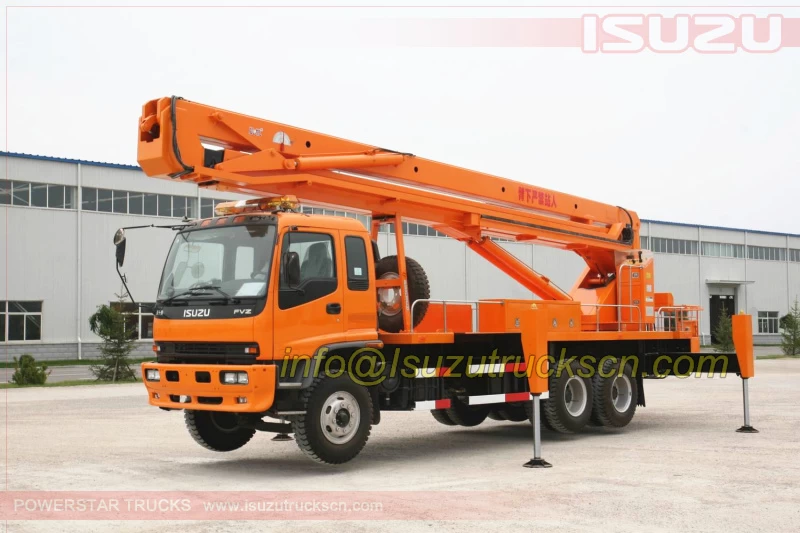

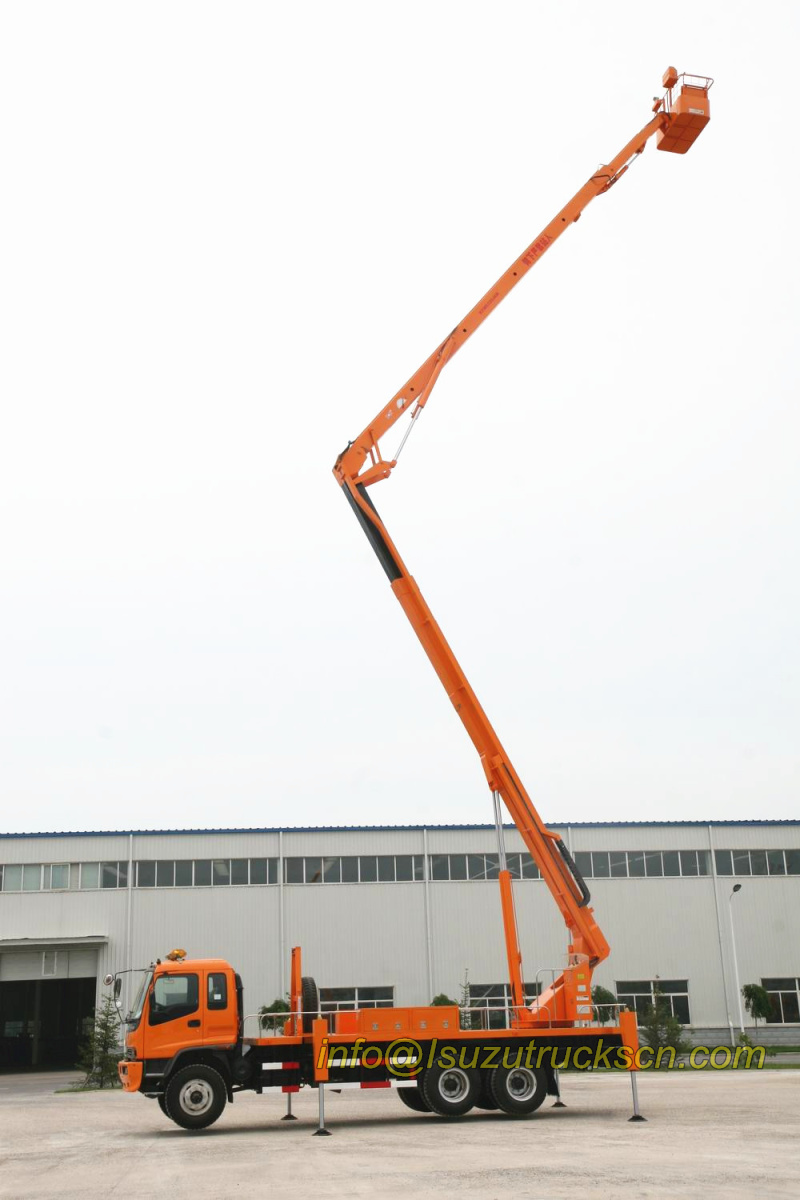

Aerial working truck Isuzu

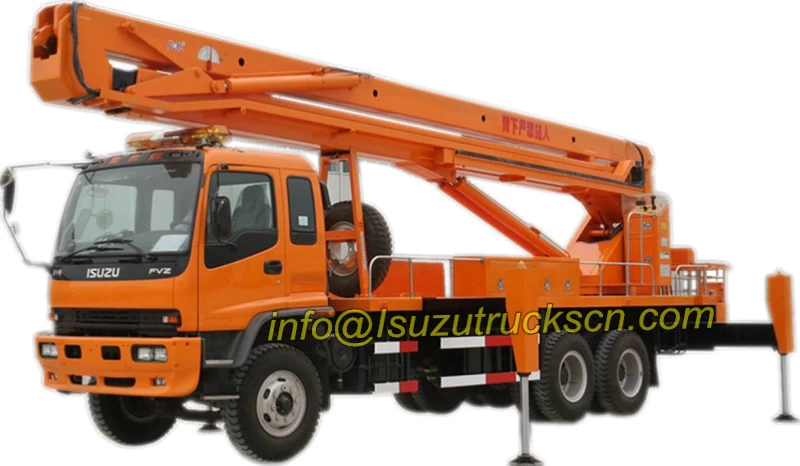

Aerial working truck Isuzu
