Aero Race Carbon Frame Road Disc Brake Road Frame R006-D

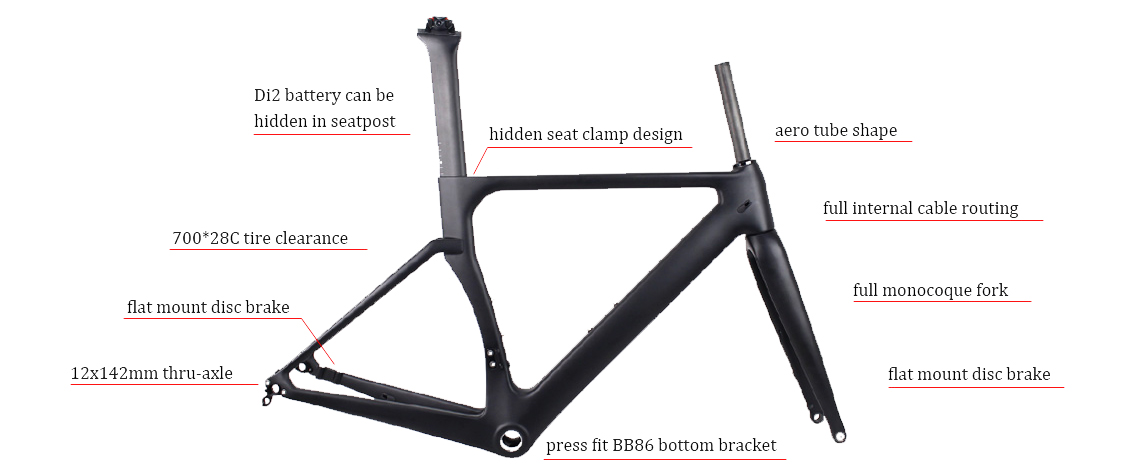

- New aero road disc brake frame
- Flat mount disc brake mount
- 140mm disc rotor

- Intergarted handlebar

- Full internal cable routing
- Machanical and Di2 groupset compatible
- High modulus carbon fiber




R006-D

700C Disc Brake Carbon Road Frame



R006-D

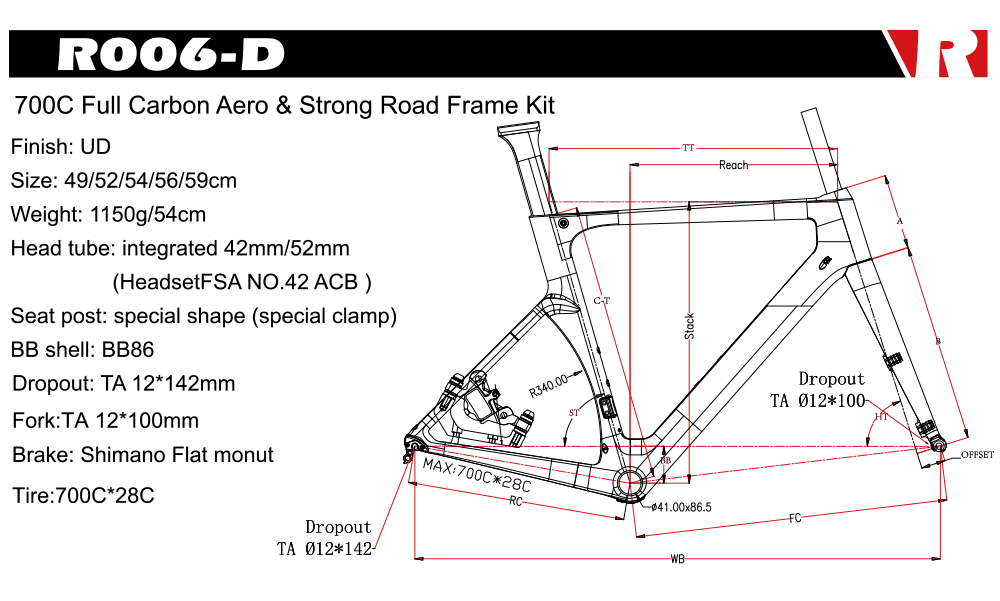

SIZE
C-T A Offset TT HT ST BB RC WB FC RD FD POST STACK PEACH H/T INSERT BB INSERT
490 467 120 43° 515.8 70.5 73 68 410 961.5 566.4 Inner
Inner
Special 516.4 357.9

FSA

NO:42

ACB

BB86
520 482 130 43° 534.3 72 73 68 410
965 569.4 531.8 371.7
540 501 148 43° 548 73 73 68 410
970.5 575 552 379.3
560
527 175 43°
564 73.5 73 68 410 982.4 587.2 579.2 386.9
580 546 195 43°
580 73.5 73 68 410 998.2 602.8 598.4 397



700C Disc Brake Carbon Road Frame


Frame

700c aero disc brake road frameset

Material

High modulus Toray T700  carbon fiber

Size

49, 52, 54, 56, 58

Fork

Specify carbon fork

Headtube

Tapered 1 1/8 - 1 1/2"head tube

Weight

1150g/54cm

Seatpost

specify seatpost

Bottom bracket

BB86

Max tire clearance

700*28c

Brake mount type

Flat mount Disc brake 140mm

Dropout
Front 12*100mm thru axle Rear 12*142mm thru axle
Groupset Machanical and Di2 compatible
Test Standard ISO4210
Warranty  2 years
