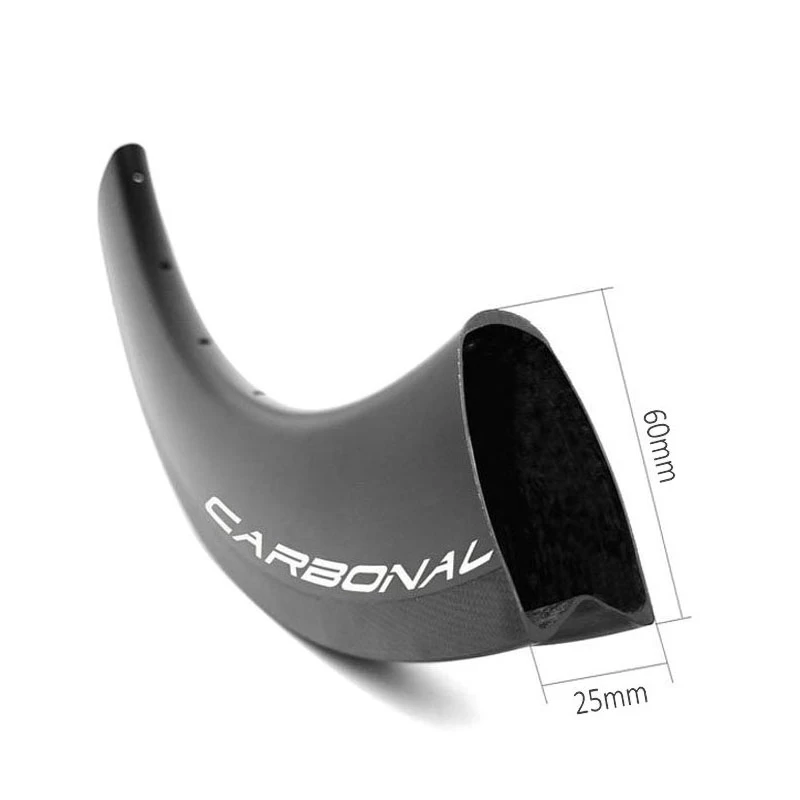

Aero U shape 25mm wide 60mm depth rim brake tubular carbon rims

Item RT60S, weight 480g, ERD 525mm. U shape 25mm wide tubular rims perfect fit road tubular tire size from 24mm to 35mm wide. Aerodynamic, stiff and durable enough for training, road racing, and also cyclocross riding.


  • Max weight limit130kg
  • Max spoke tension140kgf
  • Width25mm
  • Depth60mm
  • ERD525mm
  • Weight480g±20
  • Materialfull carbon Toray T700
  • Brakerim brake
  • Typetubular
  • Size700C

Product Item: Aero U shape 25mm wide 60mm depth rim brake tubular carbon rims

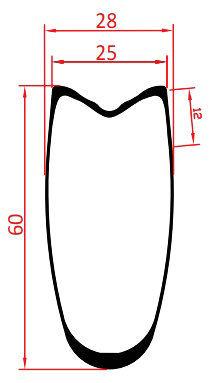

60mm rim brake tubular rim profile

These areo U shape 25mm wide tubular rims perfect fit road tubular tire size from 24mm to 35mm wide. U shape rim profile is aerodynamic, stiff and durable enough for training, road racing, and also cyclocross riding.


Specification:

 Item:
 RT60S
 Use:
 road bike, cyclocross
 Rim type:
 700C tubular - rim brake
 Material:
 Toray T700 carbon fiber
 Width:
 25mm
 Weight:
 480g±20
 Depth:
 60mm
 ERD:
 525mm
 Weave:
 UD, 3k, 6k, twill, marble
 Finish:
 Matte, glossy
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max / Min tire pressure:
 N/A / 80psi (5.5 bar)
 Decal:
 Customized
 Weight limit:
 130kgs
 TG resin temperature:
 210°C
 Standard:
 EN standard


Features:

  • U areodynamic shape makes these road tubular rims lightweight but still stiff, keeping them stable in cross winds condition.
  • High TG 210°C resin temperature brake track, less than 0.1% braking failure on these rim brake bicycle tubular wheels.
  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • Super lightweight, rim constructed with premium Toray T700 carbon fiber, best strength to weight ratio with no expense spared.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


1.3 Million Liability Insurance Worldwide:

liability insurance for 60mm tubular rim brake carbon rims


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
