Aerospace Grade Firesleeve
1.Product Introduction

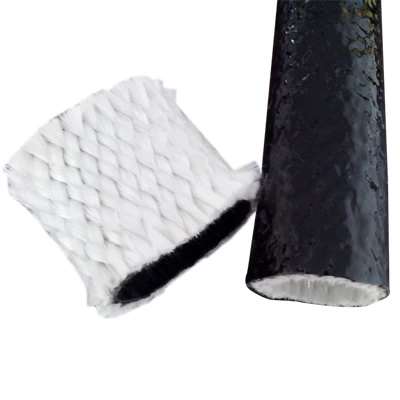

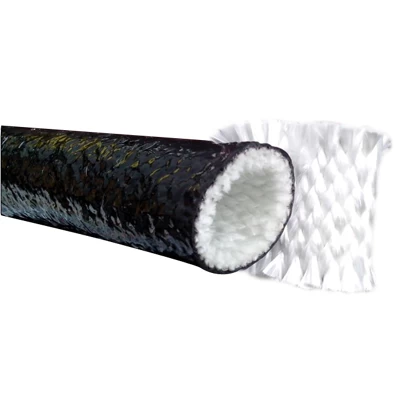

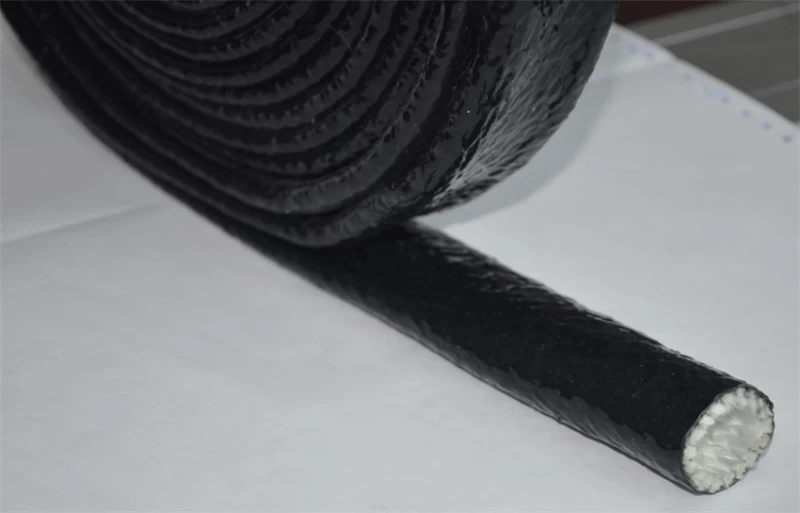

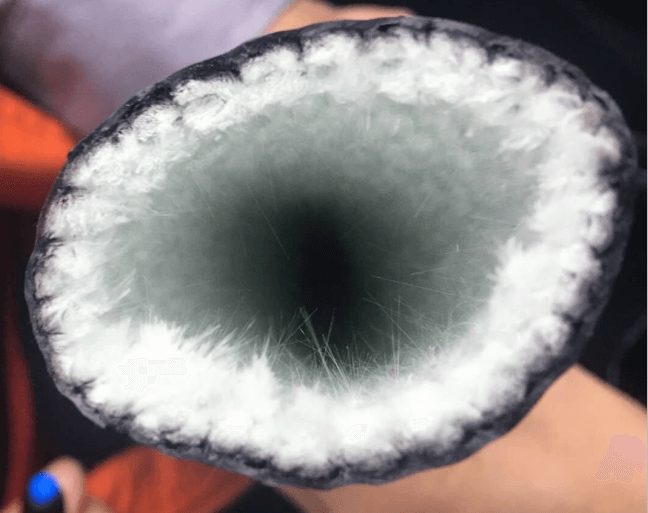

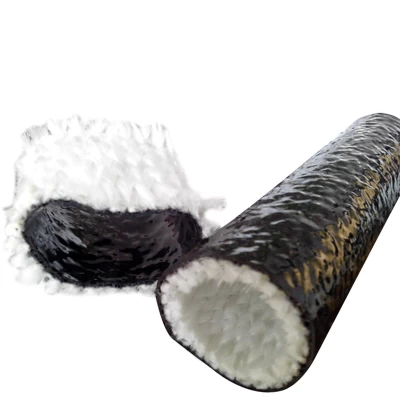

Aerospace Grade Firesleeve is made of high
lever texturized fiberglass and elasticity modulus silicone
rubber,posses better thermal insulation and abrasion resistant than
Industrial grade firesleeve.
It shed molten metal splash in steel plants, glass plants, foundries, cutting and welding shops.
Good thermal insulation and fire proof performance make Fire Sleeve reduce heat energy losses and protect employees from burning effectively.
2.Product Characters
|
Materials
|
texturized fiberglass and elasticity modulus silicone
rubber
|
|
Size/inner diameter
|
From 6mm (1/4”) to 150mm(6”),other size customized
|
|
Rate voltage
|
7kv--25kv,it depends on different size and wall thickness.
|
|
Flammability
|
VW-1
|
|
Working temperature
|
Continues working under 260℃,short time exposure to 1650℃.
|
|
Colour
|
Standard iron oxide red,other colors blue,yellow,silver,black etc are available.
|
|
Properties
|
High temperature and flame resistant,
Thermal insulation,
Anti-fire,anti-aging,
Shield the splashing of the molten metal,
Abrasion resistant,water proof,oil proof,acid and alkali resistant.
|
|
Application Industries
|
Metals(Iron&steel),Foundries,Transportation(Aerospace,Auto,Rail vehicles,Heavy Equipment,Marine),Oil & Gas,Power industry,etc
|
|
How to use
|
Cover fuel lines, hydraulic and oil lines from heat and to prolong the life of wiring and hoses in case of fire so that critical systems can function longer.
|
|
Purpose
|
Fire sleeve for protect hose,wires,lines and cables,
Reduce heat energy losses;
Protect employees from burning effectively.
|
3.Specifications
|
Part No.
|
Inner Dia.
|
Wall Thickness
|
Roll Length/mtr
|
|
mm
|
inch
|
|
ZBAO06
|
6
|
1/4
|
1.5
|
20
|
|
ZBAO08
|
8
|
5/16
|
1.6
|
20
|
|
ZBAO10
|
10
|
3/8
|
1.8
|
20
|
|
ZBAO12/13
|
13
|
1/2
|
1.9
|
20
|
|
ZBAO15
|
15
|
5/8
|
2.1
|
20
|
|
ZBAO20
|
20
|
3/4
|
2.4
|
20
|
|
ZBAO22
|
22
|
7/8
|
2.5
|
20
|
|
ZBAO25
|
25
|
1
|
2.6
|
20
|
|
ZBAO30
|
30
|
11/8
|
2.9
|
20
|
|
ZBAO32
|
32
|
11/4
|
3
|
20
|
|
ZBAO35
|
35
|
13/8
|
3.1
|
20
|
|
ZBAO38
|
38
|
11/2
|
3.2
|
20
|
|
ZBAO40
|
40
|
15/8
|
3.4
|
20
|
|
ZBAO45
|
45
|
13/4
|
3.4
|
20
|
|
ZBAO50
|
50
|
2
|
3.6
|
20
|
|
ZBAO55
|
55
|
21/4
|
3.7
|
20
|
|
ZBAO60
|
60
|
23/8
|
3.8
|
20
|
|
ZBAO65
|
65
|
21/2
|
3.8
|
20
|
|
ZBAO70
|
70
|
23/4
|
4
|
20
|
|
ZBAO75
|
75
|
3
|
4.1
|
20
|
|
ZBAO80
|
80
|
31/8
|
4.3
|
15
|
|
ZBAO85
|
85
|
31/4
|
4.3
|
15
|
|
ZBAO90
|
90
|
31/2
|
4.5
|
15
|
|
ZBAO95
|
95
|
33/4
|
4.5
|
15
|
|
ZBAO100
|
100
|
4
|
4.6
|
15
|
|
ZBAO105
|
105
|
41/8
|
4.7
|
10
|
|
ZBAO110
|
110
|
43/8
|
4.7
|
10
|
|
ZBAO115
|
115
|
41/2
|
4.7
|
10
|
|
ZBAO120
|
120
|
43/4
|
4.8
|
10
|
|
ZBAO125
|
125
|
5
|
4.8
|
10
|
|
ZBAO130
|
130
|
51/8
|
5
|
10
|
|
ZBAO140
|
140
|
51/2
|
5.2
|
10
|
|
ZBAO150
|
150
|
6
|
5.2
|
10
|
