Overview

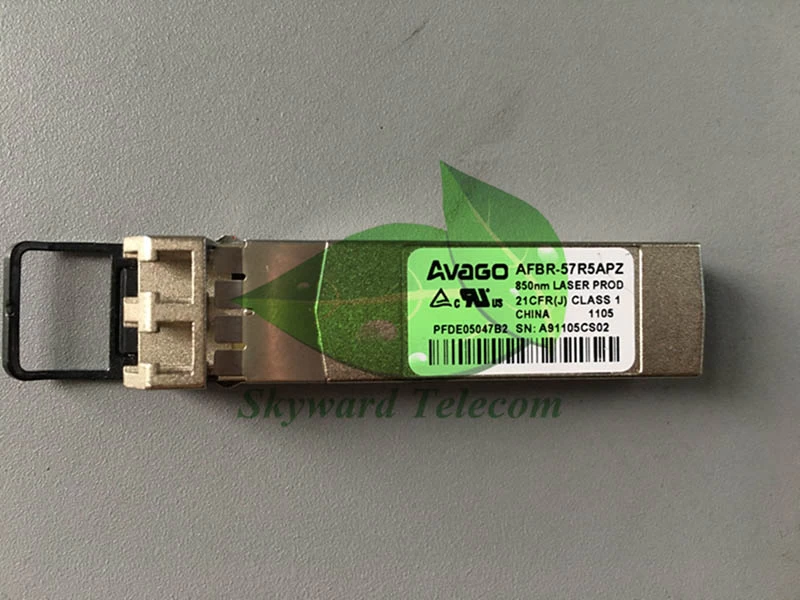

The AFBR-57R5APZ is a 4/2/1Gbaud MMF Fibre Optic Transceiver supports high-speed serial links over multimode optical fibre at signalling rates up to 4.25Gbps. Compliant with Small Form Pluggable (SFP) Multi Source Agreement (MSA) mechanical and electrical specifications for LC duplex transceivers, ANSI Fibre Channel FC-PI, FC-PI-2 and compatible with IEEE 802.3 for gigabit applications. The part
is electrically interoperable with SFP conformant devices.
As an enhancement to the conventional SFP interface
defined in SFF-8074i, the AFBR-57R5APZ is compliant to
SFF-8472 (digital diagnostic interface for optical transceivers). Using the 2-wire serial interface defined in the
SFF-8472 MSA, the AFBR-57R5APZ provides real time
temperature, supply voltage, laser bias current, laser
average output power and received input power. This
information is in addition to conventional SFP base data.
The digital diagnostic interface also adds the ability to
disable the transmitter (TX_DISABLE), monitor for Transmitter Faults (TX_FAULT), and monittor for Receiver Loss
of Signal (RX_LOS).
Installation
The AFBR-57R5APZ can be installed in any SFF-8074i
compliant Small Form Pluggable (SFP) port regardless of
host equipment operating status. The AFBR-57R5APZ is
hot-pluggable, allowing the module to be installed while
the host system is operating and on-line. Upon insertion,
the transceiver housing makes initial contact with the
host board SFP cage, mitigating potential damage due
to Electro-Static Discharge (ESD).
Features
• Fully RoHS Compliant
• Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
• Real time monitoring of:
– Transmitted optical power
– Received optical power
– Laser bias current
– Temperature
– Supply voltage
• Wide temperature and supply voltage operation
(-10°C to 85°C) (3.3 V ± 10%)
• Transceiver specifications per SFP (SFF-8074i) MultiSource Agree-ment and SFF-8472 (revision 9.3)
– 4.25 GBd Fibre Channel operation for
FC-PI 400-M5-SN-I and 400-M6-SN-I
– 2.125 GBd Fibre Channel operation for
FC-PI 200-M5-SN-I and 200-M6-SN-I
– 1.0625 GBd Fibre Channel operation for
FC-PI 100-M5-SN-I and 100-M6-SN-I
• Link lengths at 4.25 GBd:
– 150m with 50 µm MMF, 70m with 62.5µm MMF
• Link lengths at 2.125 GBd:
– 300m with 50µm MMF, 150m with 62.5µm MMF
• Link lengths at 1.0625 GBd:
– 500m with 50µm MMF, 300 m with 62.5µm MMF
• LC Duplex optical connector interface conforming to
ANSI TIA/EIA604-10 (FOCIS 10)
• 850 nm Vertical Cavity Surface Emitting Laser (VCSEL)
source technology
• IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
• Compatible with Gigabit Ethernet
Applications
• Fibre channel systems
– Director class switches
– Fabric switches
– HBA cards
• Disk and tape drive arrays
