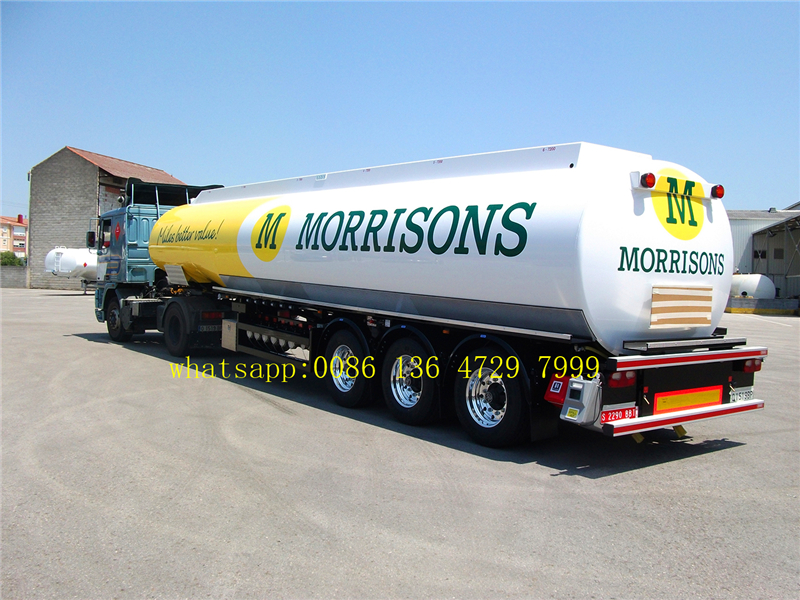

africa oil tanker semitrailer
Applications:
africa fuel tanker semitrailer, also called as africa oil tanker semitrailer, fuel wagon semitrailer africa,fuel tanker body semitrailer afria . As premium africa fuel tanker semitrailer manufacturer, we aim at supply reliable oil tanker semitrailer for all africa customers.
** fuel tanker trailer Tank material could be carbon steel, stainless steel, alluminum……
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** OPW (Civacon) bottom loading
system can be equipped: API connections, over-fill detection system ,
vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic
control, bottom emergent valve……
** Tube or tubeless tyres, off-road single tyre for bad roads.
Key Features:
---- 30 years on semitrailer manufacturing, germany benz technology assurance.
---- All genuine spare parts , 20,000 km maintenance
---- 12 months after sale service guarantee
---- Service for more than 200 horned customer , export more than 100 countries.
---- Patented design on semitrailer, reliable and
Specifications:
| africa oil tanker semitrailer
|
| Shape
|
Round or Square
|
| Dimension
|
12800mm×2490mm×3990mm ( The exact size depends on the final design.)
|
| Tare weight
|
About 8000kg-12800kg
|
| Total Volume ( m3 )
|
45 m³
|
| Tanker Body Material
|
5mm or 6mm/ Q235 carbon steel
|
| End Plate
|
5mm or 6mm /Q235 carbon steel
|
| Manhole Cover
|
Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)
|
| Bottom Valve
|
Aluminum API Pneumatic Bottom Valve
|
| Discharging Valve
|
Diameter is 3 or 4 inch
|
| Compartments
|
Optional
|
| Discharging Pipe
|
4” rubber hose, 2 pcs , 6m/each
|
| Cat Walk
|
With (Common model or special design)
|
| Chassis
|
| Main Beams
|
Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material
|
| Axle
|
2 or 3 axles, BPW/FUWA/HUAJING brand
|
| Landing Gear
|
JOST (D200T ) or CHINA BRAND 28T
|
| King Pin
|
JOST 2.00 or 3.5 inch bolt-in king pin
|
| Suspension
|
Mechanical suspension/Germany or America type /air suspension
|
| Leaf Spring
|
90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without
|
| Pneumatic Braking System
|
WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank
|
| Rim
|
9.00-22.5/8.00-20/8.5-20 China Brand
|
| Tire
|
/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
|
| ABS
|
Optional
|
| Painting
|
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
|
| Accessories
|
One standard tool box
|
| Shipping Terms
|
By bulk cargo ,RORO or 40HQ Containers
|
We are premium ADR oil tanker semitrailer exporter, can export 30 cbm ADR fuel tanker semitrailer , 40 cbm ADR fuel tanker semitrailer , 50 cbm ADR oil tanker semitrailer , 60 cbm ADR oil tanker semitrailer
Premium oil tanker semitrailer manufacturer in china, can customized 2 axle oil tanker semitrailer, 3 axle oil tanker semitrailer, 4 axle fuel tanker semitrailer.
