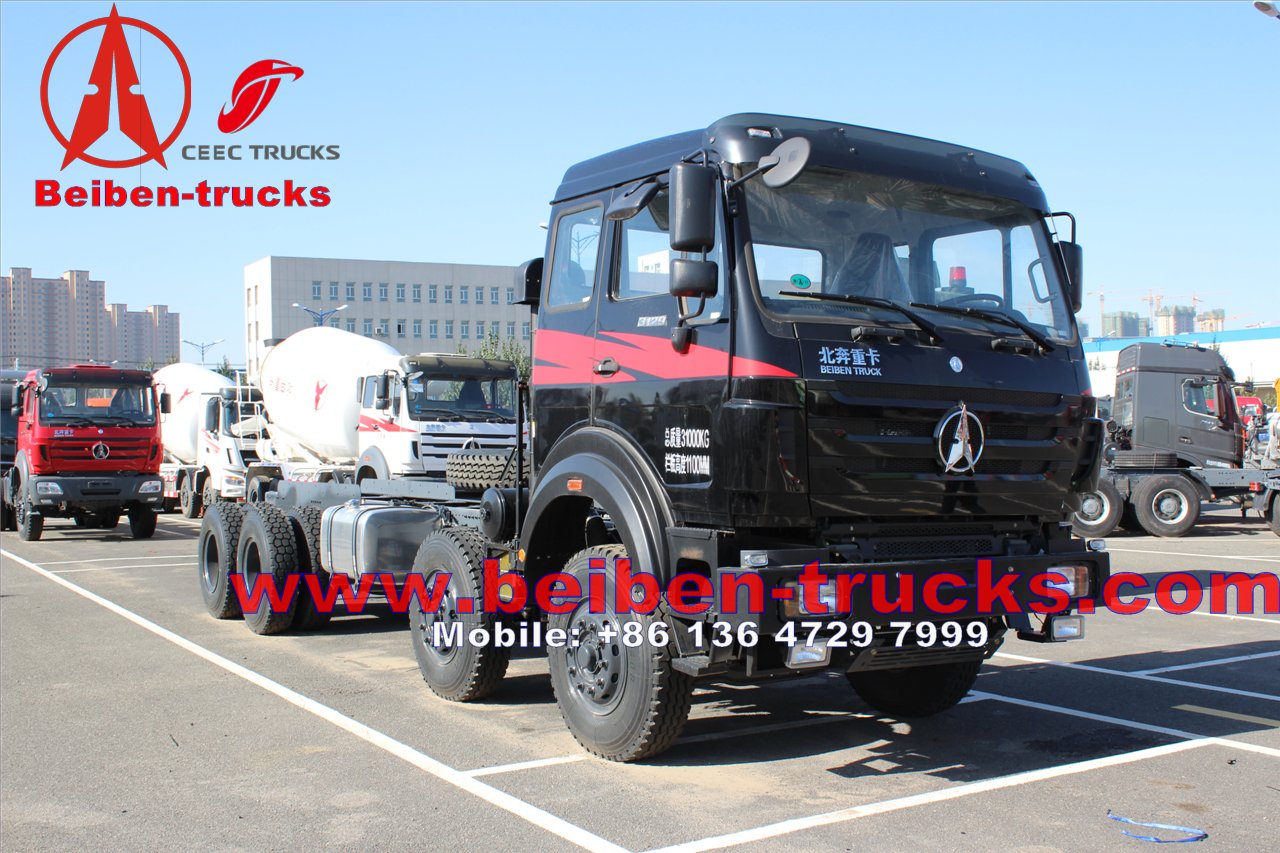

africa beiben 340 Hp engine 8 wheel drive truck chassis
The series products of our Beiben military all wheel drive trucks are ideal
transport with outstanding performance and high quality, they are widely used
in industries and sectors, such as national defense, aviation, postal service,
railways, highways, harbors, petroleum, chemicals, water and electricity,
forests, fire fighting, banks and peace keeping forces.
Originate from Mercedes-Benz
Germany and Chinese local manufacturers,Beiben truck is the Chinese best
truck brands and best quality, technical performance properties index and
conform to the state and military standard.
Beiben truck
features and advantages:
1: Driving room: the steel structure, high
safety,lower wind resistance coefficient
2:Power system dynamic matching technology of
mercedes-benz: less power loss and more efficient
3: The suspension system: Mercedes suspension, high
intensity
4: Benz axle: double deceleration bridge, high
efficiency, carrying large
5: Transmission system: high efficiency, bigger torque,
climbing superior performance
6: Steering system:high safe and reliable, and
flexible
7:Braking system, high security, brake with high
efficiency
8: Electric system: stronger load ability, high
reliability and easy maintenance
Beiben truck manufactured under
the license of Mercedes Benz technology, which has excellent performance with
reasonable price.
Technique Parameters
|
|
Brand |
BEIBEN TRUCK |
|
Vehicle model |
3134AP
|
|

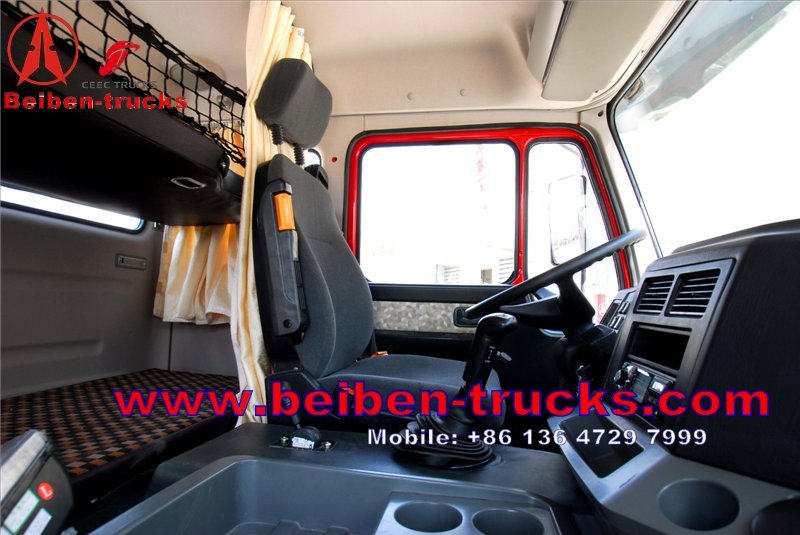

Cabin |
Full steel skeleton structure, covered with double layer steel plate
|
|
Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles
|
|
Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure
|
|
Persons in cab: 3
|
|
Driving |
8x8
|
|
Wheel base (mm)
|
1500+4150+1450/1500+5050+1450
|
|
Weight data
|
Curb Weight(kg) :13550
|
|
Engine |
Model
|
Brand WeiChai WP10.336 / Diesel, Straight in line，water-cooled，turbocharged, intercooled, 6 cylinders, |
|
Power |
340HP
|
|
Emission
|
EUR III
|
|
Rated power(kw/rpm)
|
247Kw/2200rpm
|
|
Transmission
|
FAST GEAR Model:9JS150A 9-forward &1-reverse gears
|
|
Option: 12JS160T
|
|
Clutch
|
single disc, dry type, diaphragm spring, φ430
|
|
Frame
|
BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame |
|
Fish belly, various width, various sections, side beam structure
|
|
Axle |
Front: |
Mercedes Benz Technology, 7.5 ton, non-driving steering axle |
|
Middle/Rear:
|
Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle
|
|
Suspension
|
Non-free standing stabilization spring, hydraulic shock absorber， stabilization suspension， |
|
Steering
|
ZJ120D/TAS85/ ZF8098 (Original ZF technology)
|
|
Wheels and tyre size |
12+1/12.00-R20
|
|
Fuel tank (L)
|
400L
|
|
Colour
|
Metal white, multi-colored options
|
