Aftermarket Caterpillar Hydraulic Filter 1R-0741, 1R-0741
Cross Reference:
Fleetguard HF6098, Donaldson P556064
The 1R-0741 Parameter:
Part Number
|
1R-0741,1R0741
|
Parts Name
|
Hydraulic Filter
|
Brand
|
Caterpillar
|
Overall Height
|
228.00 mm
|
Outer Diameter
|
130.00 mm
|
Inner Diameter
|
85.00 mm
|
Efficiency Rating
|
Standard Efficiency
|
The 1R-0741 Advantage:
Cat Standard Efficiency Hydraulic and Transmission Filter are designed to maintain system cleanliness and integrity in most normal and light duty applications. Your first defense against component wear due to oil contamination, Cat Filter deliver quality, consistency and on-machine performance, resulting in superior filtration. Transmission-specific filters are designed to hold more contaminants and offer longer service intervals in these systems, so using the correct filter at appropriate maintenance intervals is critical.
The 1R-0741 Attributes:

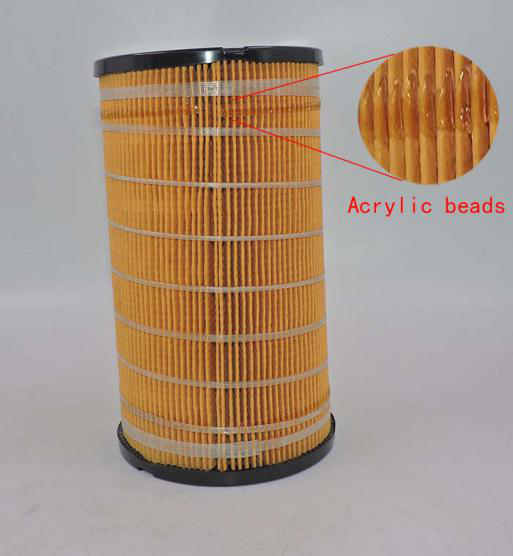

Acrylic beads
CAT oil filter and CAT fuel filter have Acrylic beads which prevent bunching. Many other filters do not exist in this Acrylic beads.

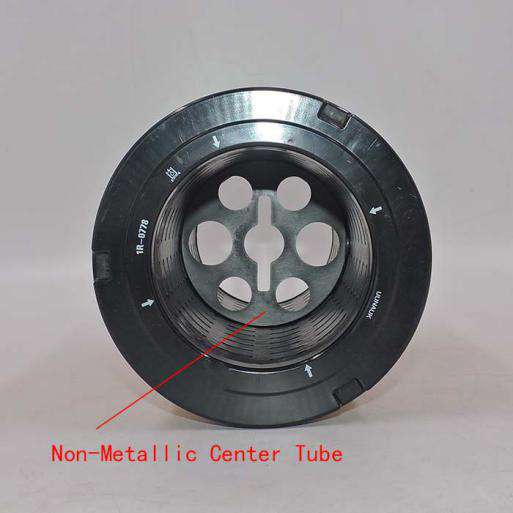

Non-Metallic Center Tube
CAT Filter are made with non-metallic center tubes to better protect the system. And prevents metal contamination

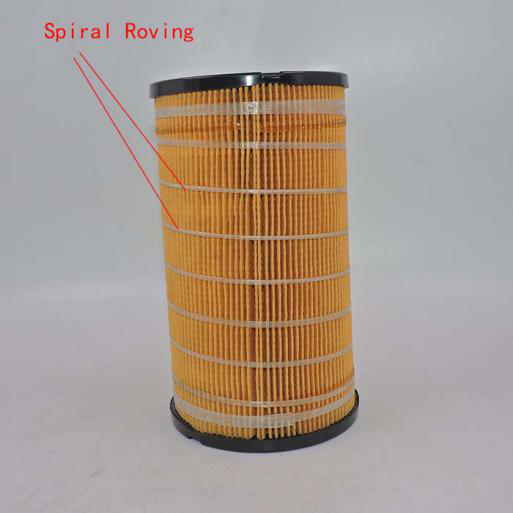

Spiral Roving
CAT Filter feature a unique fiberglass spiral roving to ensure that pleats don’t flex,putting an end to pleat movement.

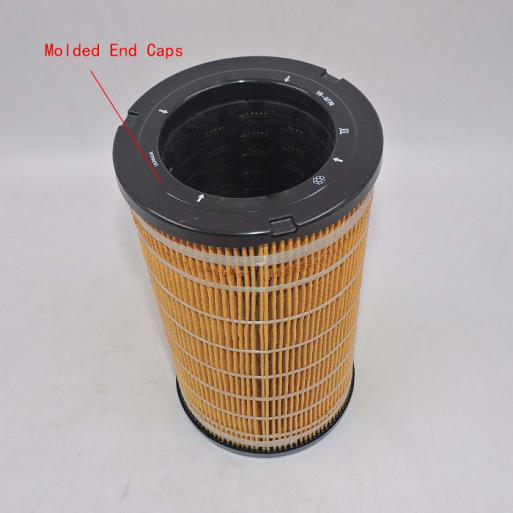

Molded End Caps
CAT filter have Molded end caps which can prevent leaks.
The 1R-0741 Application:
Compatible Models
|
ADT
D350E, D250E II D300E II 730, 725, D250E, D300E, D400E
|
PETR
TH35-E81
|
TTT
D7R II D7R, D6G SR D7G2 D8R D6H XL D7G, D6E
|
WTS
651E, 657E, 613C II 613C
|
UAT
AD40 AD45, AE40
|
MG
24H
|
OHT
785C, 777D, 777E, 793C, 769D, 789B, 771C, 793B, 773D, 789D, 776D, 784C, 775B, 775D, 771D, 785D, 785B, 777F, 789C, 769C, 784B, 777C, 773B, 776C
|
PIPE
572R, 572R II
|
