Aftermaker Fleetguard High Velocity Dual-Flow Lube Spin-on LF9009
Cross Reference:
Cummins 3401544, John Deere AT193242, SISU 1216400561, Baldwin BD7309, Donaldson P553000
The LF9009 Parameter:
Part Number
|
LF9009
|
Parts Name
|
Oil Filter
|
Brand
|
Fleetguard
|
Overall Height
|
301.76 mm
|
Largest OD
|
118.31 mm
|
Seam OD
|
118.87 mm
|
Gasket OD
|
118.87 mm
|
Gasket ID
|
101.85 mm
|
Thread Size
|
2 1/4-12 UNS-2B
|
The LF9009 Advantage:
The oil filter is used to remove the debris, glue and moisture in the oil, and to transfer the clean oil to the lubricating parts.In order to reduce the frictional resistance between the relative moving parts in the engine, the wear of the parts is reduced, and the oil is continuously transferred to the friction surface of various motor parts, forming lubricating film and lubrication.
The LF9009 Inner Element Material Comparison :

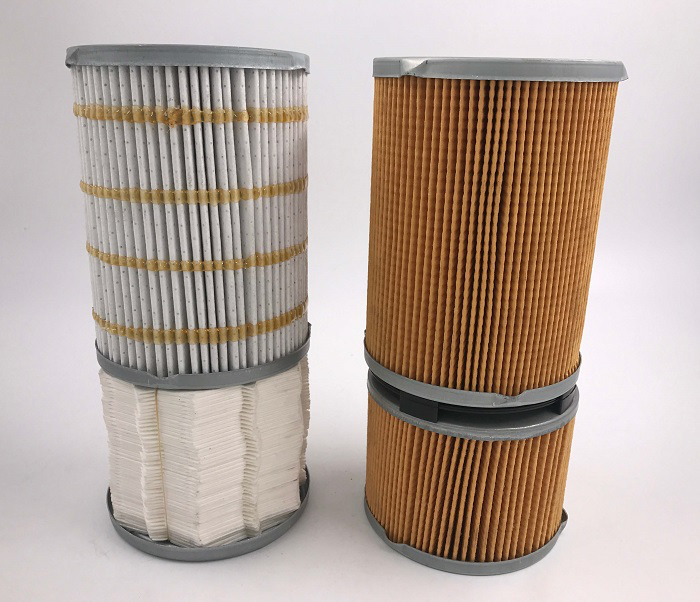

Comparison of our Oil filter LF9009 element(left) and improve Oil filter LF9009 element (right). The top half of our products element media is composite paper, the bottom half of our products element media is bypass paper.The two types of paper filter well. Improve Oil filter LF9009 media is the normal filter paper, filtration efficiency is compare low.
